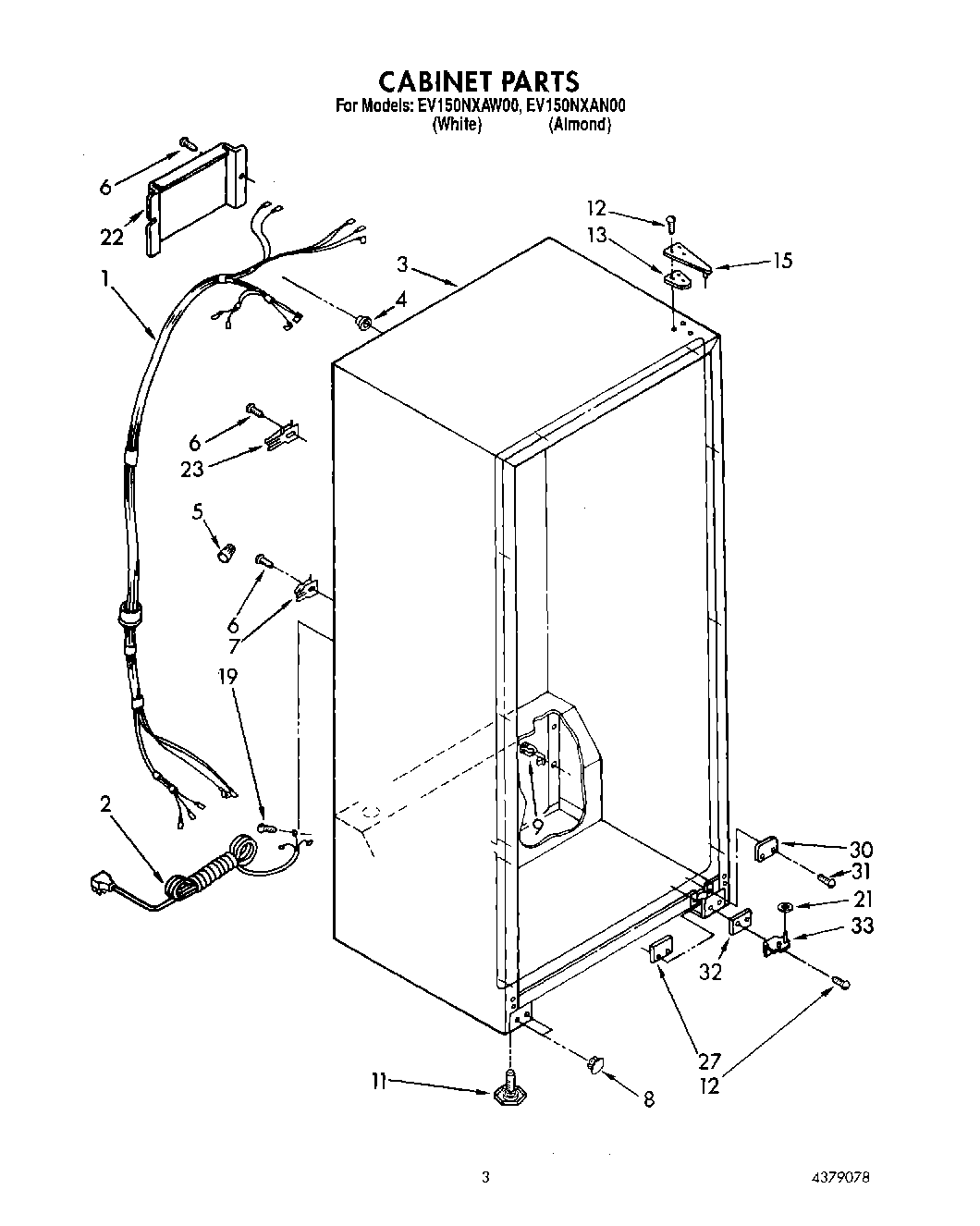

EV150NXAW00 02 – CABINET

Products

PositionProduct
1Cabinet Wiring Assembly
2Cord, Service
3Cabinet (Not A Serviceable Part)
4Grommet, Wiring
5Connector-Wire
6WP489478 Whirlpool Refrigerator Screw
7Clamp
8Hole, Plug (2) (Almond)
8WPL 941416
9Bushing, Strain Relief
11W11117769 Whirlpool Refrigerator Leveler
11repair
12WP999367 Whirlpool Refrigerator Screw
13Shim, Hinge
15Shim, Hinge Top
19Screw, 8-32 x 3/8
21WP487576 Whirlpool Washer
21WP487802 Whirlpool Refrigerator Washer
22Cover, Wiring
23Clamp
27Tap Plate, Bottom
30Tube, Rail Cover (Almond)
30Tube, Rail Cover (White)
31Screw
32Shim, Bottom Hinge
33Hinge Assembly (Bottom R.H.)
