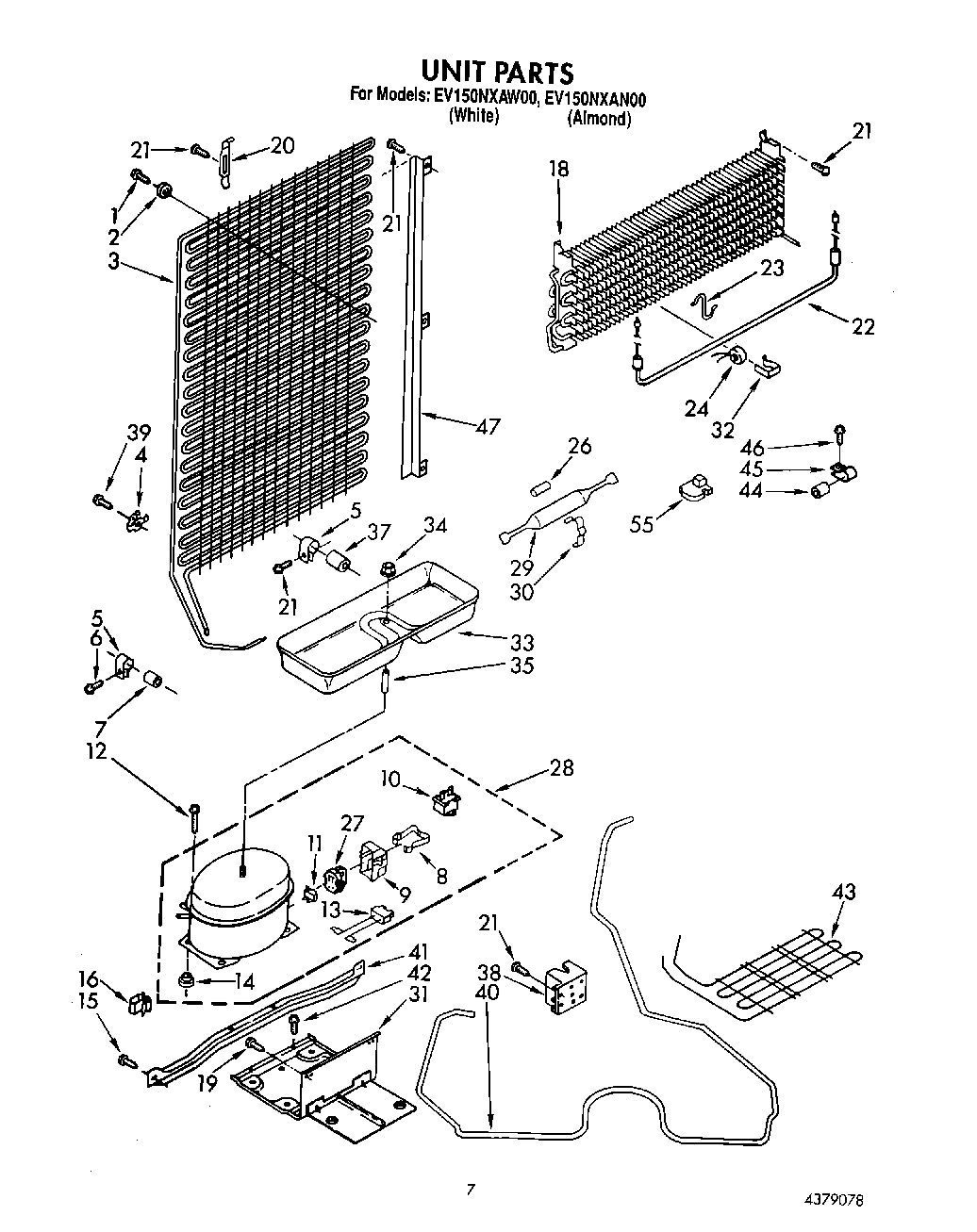

EV150NXAW00 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser Assembly
4	Clip, Tube (4)
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	Dampener
8	Strap
9	Cover
10	Running Capacitor (Service)
11	4388953 Whirlpool Overload Relay
13	WP2172890 Whirlpool Refrigerator Wire
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
18	Evaporator
20	Bracket
21	WP489478 Whirlpool Refrigerator Screw
22	Heater, Defrost
23	Support, Heater
24	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
26	Restrictor Sleeve
27	WP2262181 Whirlpool Refrigerator Start Relay
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Installation Kit
28	Compressor, (Includes Items 8, 9, 10, 11, 13, 14, & 27)
29	W10843121 Whirlpool Refrigerator Tube
30	Clamp, Dryer
31	Plate Assembly, Unit Mounting
32	Clamp
33	Tray, Evaporator
34	285002 Whirlpool Nut
35	Spacer
37	Dampener (4)
38	Junction Box
40	Heat Exchanger
41	Unit Mounting Rail
42	WP965173 Whirlpool Dishwasher Screw
43	Precooler
44	WPL 1118889
45	WPL 1115557
46	WP489128 Whirlpool Refrigerator Screw
47	Channel, Condenser (Left)
47	Channel, Condenser (Right)
55	876764 Whirlpool Refrigerator Primary Valve
55	Side Block, Evaporator (Left)
55	VALVE, ACCESS (1/2“)
55	WP978025 Whirlpool Refrigerator Valve
55	978030 Whirlpool Refrigerator Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (5/8“)
55	978026 Whirlpool Refrigerator Primary Valve
55	Side Block, Evaporator (Right)
