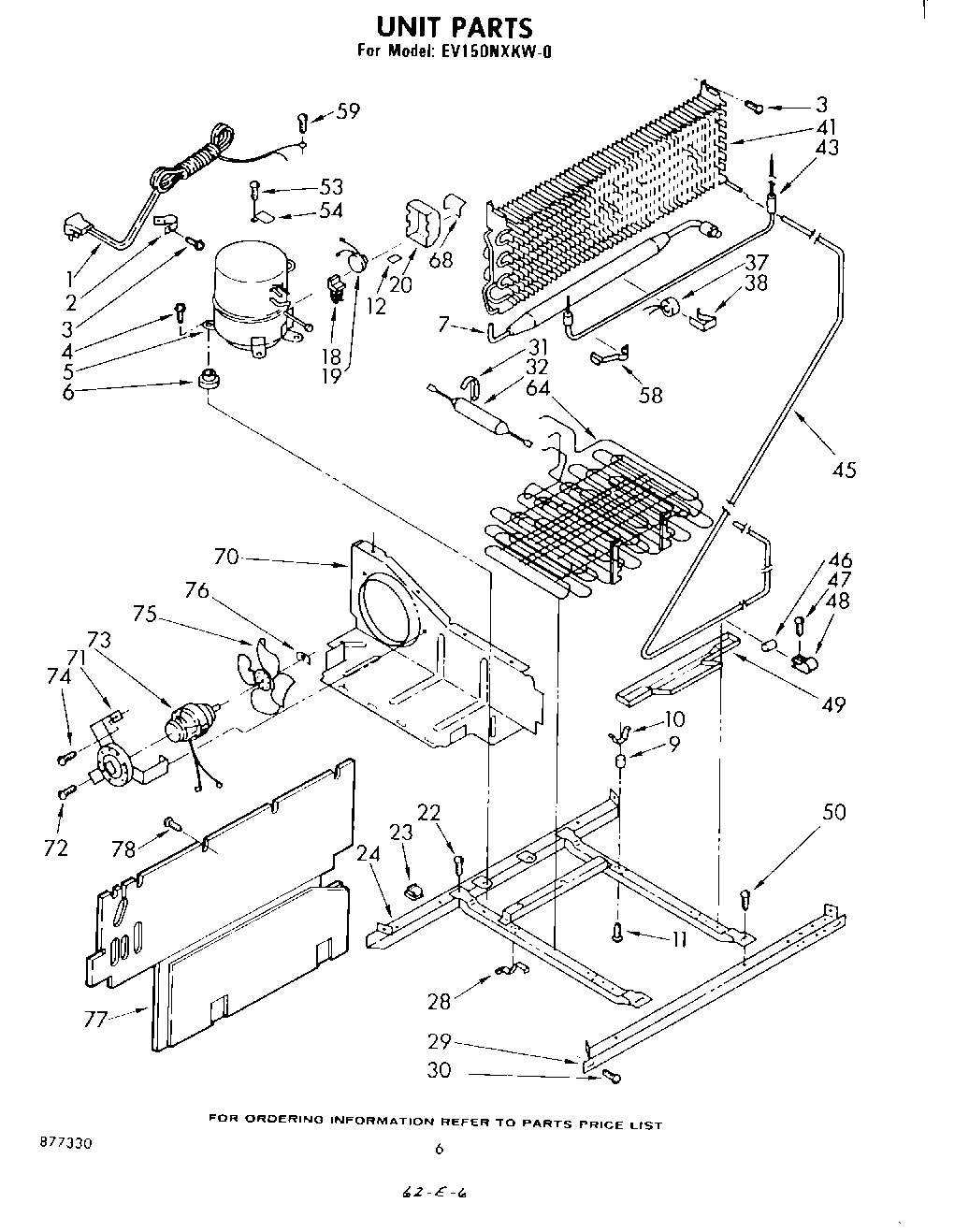

EV150NXKW0 04 – UNIT
Written by
in
EV150NXKW0 04 – UNIT
Products
Position
Product
1
Cord, Service
2
549193 Whirlpool Refrigerator Power Clamp
3
W11624204 Whirlpool Screw
4
Screw, 1/4-28 x 1“ (4)
5
Compressor
6
Grommet (4)
7
Header & Tube Assembly
9
Grommet (4)
10
Clamp (4)
11
W11693756 Whirlpool Screw Assembly
12
Bumper
18
Relay
19
Overload
20
Case, Relay
22
303776 Whirlpool Dishwasher Screw
23
Clip, Wire (2)
24
Frame
28
Clip (2)
29
Rail, Front
30
489340 Whirlpool Refrigerator Screw
31
Clamp
32
W10843121 Whirlpool Refrigerator Tube
37
WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38
Clamp
41
Evaporator
43
Heater, Defrost
45
Exchanger, Heat
46
Dampener (2)
47
WPW10141625 Whirlpool Refrigerator Screw Assembly
48
Clamp Tube
49
Pan, Drip
50
Screw, 1/4-28 x 1/2 (2)
53
Screw
54
Clip, Cord Plug
58
Clip, Heater (Repair)
58
Clip, Heater
59
Screw, 8-32 x 3/8
64
Condenser & Precooler Assembly
68
Spring
70
Baffle
71
Bracket, Motor
72
Screw, 8 x 3/8
73
833697 Whirlpool Condenser Fan Motor
74
Screw, 8-36 x 3/8 (3)
75
Fan, Blade
76
WP486692 Whirlpool Refrigerator Nut
77
Cover
78
Valve, Access (1/4“)
78
978030 Whirlpool Refrigerator Valve
78
978027 Whirlpool Refrigerator Primary Valve
78
VALVE, ACCESS (1/2“)
78
978026 Whirlpool Refrigerator Primary Valve
78
Start Kit
78
VALVE, ACCESS (5/8“)
78
WP488920 Whirlpool Refrigerator Screw
←
