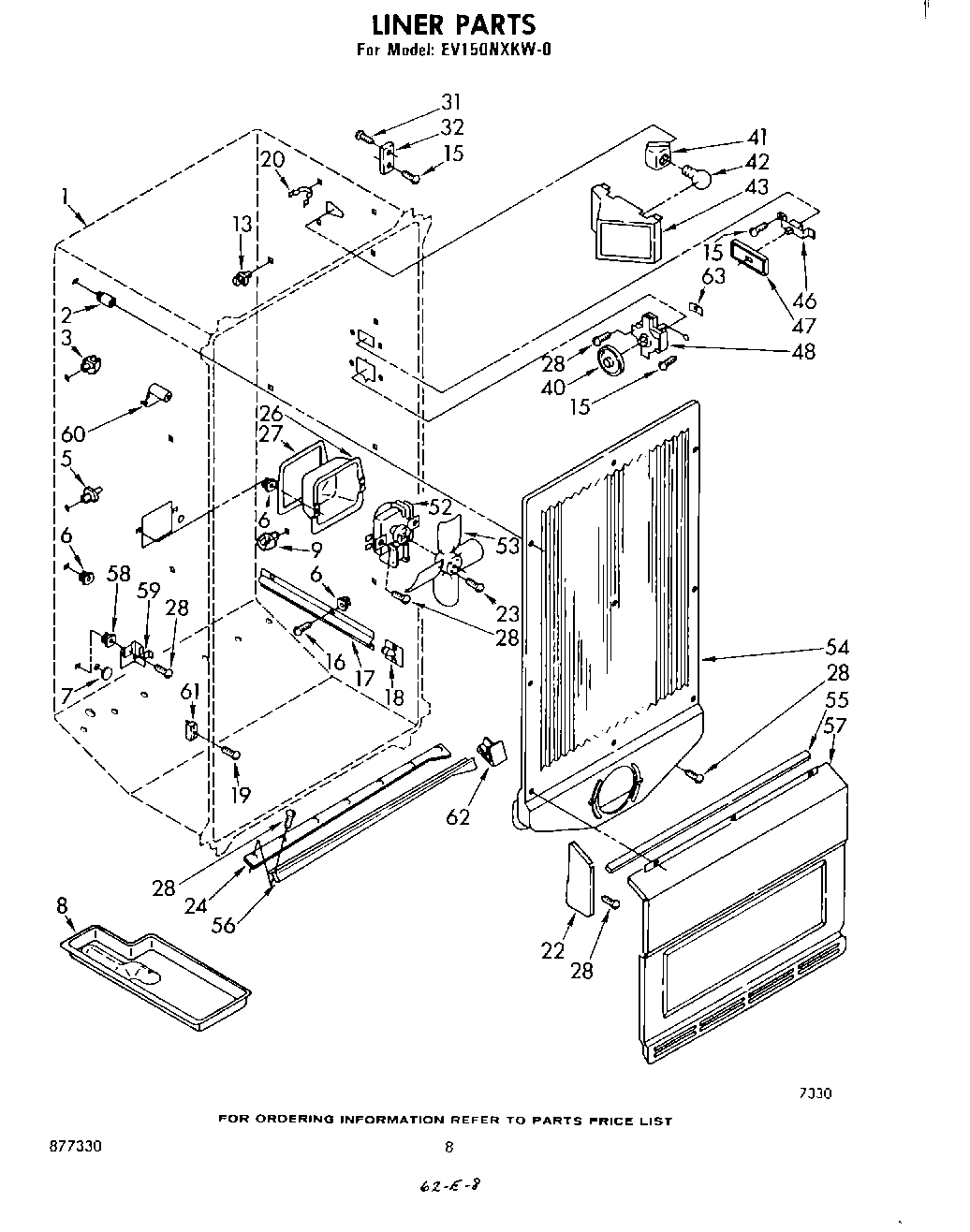

EV150NXKW0 05 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Spacer (9)
3	Shelf Stud, Saddle
3	Shelf Stud Saddle (R.S.)
5	Shelf, Stud (2)
6	Grommet
7	Hole, Plug
8	WPL 842041
9	Stud, Shelf (2)
13	Stud, Hook (2)
15	WP489128 Whirlpool Refrigerator Screw
16	WP488729 Whirlpool Refrigerator Door Screw
17	Cover, Tube
18	Cover, Tub Entry
19	WP488163 Whirlpool Refrigerator Screw
20	Speed Clip, Light Lens (3)
22	Baffle, Evaporator (2)
23	WP487887 Whirlpool Refrigerator Screw
24	Gasket, Drain Trough
26	Cover, Motor
27	Gasket, Motor Cover
28	W11624204 Whirlpool Screw
31	Screw, 8-32 x 1-1/2
32	Strap, Ground
40	Knob
41	4387478 Whirlpool Refrigerator Light Socket
42	RANGE ONLY 40W 120V APPL BULB
43	Shield, Light (Freezer Compartment)
46	Bracket & Switch Assembly
47	Escutcheon, Power Saver
48	4389249 Whirlpool Refrigerator Thermostat
52	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
53	WP1100938 Whirlpool Refrigerator Fan Blade
54	Cover, Fan Orifice
55	Gasket
56	Trough, Drain
57	Cover, Evaporator
58	Screw Grommet
59	Support, Evaporator
60	Spacer, Liner (2)
61	Spacer, Liner (8)
62	Extension, Drain Trough
63	488660 Whirlpool Refrigerator Nut
