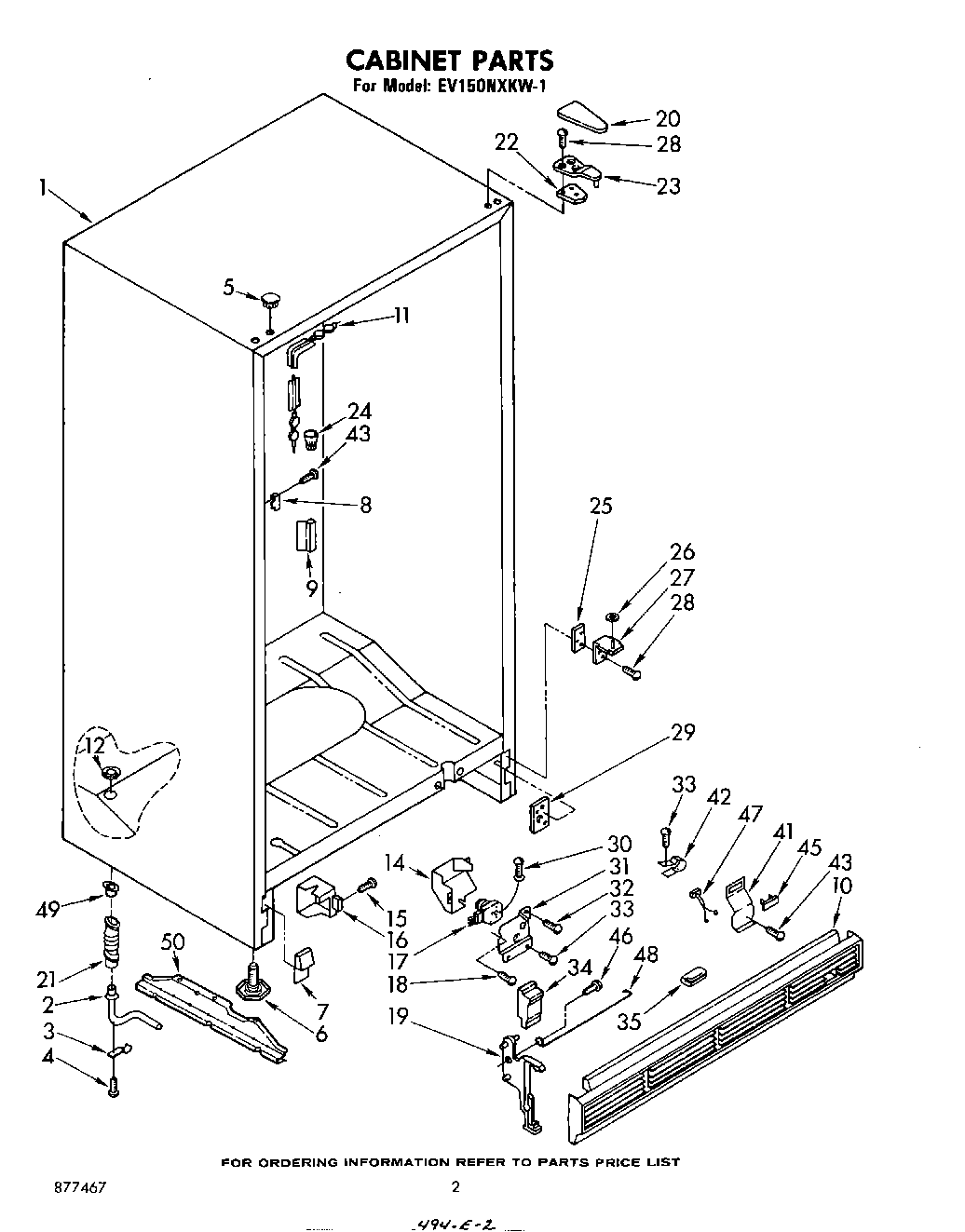

EV150NXKW1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Extension, Drain Fitting
3	Cup, Drain Extension
4	Screw, 8-32 x 1/2
5	Hole Plug (New Avocado)
5	Hole Plug (Coffee)
5	Hole Plug (2) (Golden Harvest)
5	Hole Plug (2) (Almond)
5	Hole Plug (2) (White)
6	W11117769 Whirlpool Refrigerator Leveler
7	WPL 989928
7	WPL 989929
7	WPL 989930
7	WPL 989931
7	Corner, Filler (
8	Bracket, Strike
9	Cover, Strike
10	Grille, Exterior (New Avocado)
10	Grille, Exterior (Almond)
10	Grille, Exterior (White)
10	Grille, Exterior (New Gold)
10	Grille, Exterior (Coffee)
11	Heater, Stile
12	Drain Cover
14	Guard, Timer
15	WP488729 Whirlpool Refrigerator Door Screw
16	WPL 549947
17	Defrost Timer, 8 Hour
18	WP965173 Whirlpool Dishwasher Screw
19	WPL 844614
20	1119787 Whirlpool Refrigerator Hinge Cover
20	Hinge Cover (Golden Harvest)
20	Hinge, Cover (Coffee)
20	Hinge Cover (New Avocado)
21	Fitting, Drain
22	WPL 836151
23	Hinge & Shim (Top)
24	Conector, Wire
25	Shim, Bottom Hinge
26	WP487802 Whirlpool Refrigerator Washer
27	Hinge (Bottom)
28	Screw (Repair)
28	WP999367 Whirlpool Refrigerator Screw
29	Tap Plate
30	WP489128 Whirlpool Refrigerator Screw
31	Plate, Timer
32	Screw, 6-20 x 3/8
33	Screw, 8 x 3/8
34	WPL 836372
35	Bumper, Grille
41	Bracket, Pilot Light
42	Cleat, Cord
43	Screw, 8-32 x 3/8
45	Light, Pilot
46	W11624204 Whirlpool Screw
47	WPL 549538
48	Guard, Fan
49	WPL 981148
50	WPL 843164
