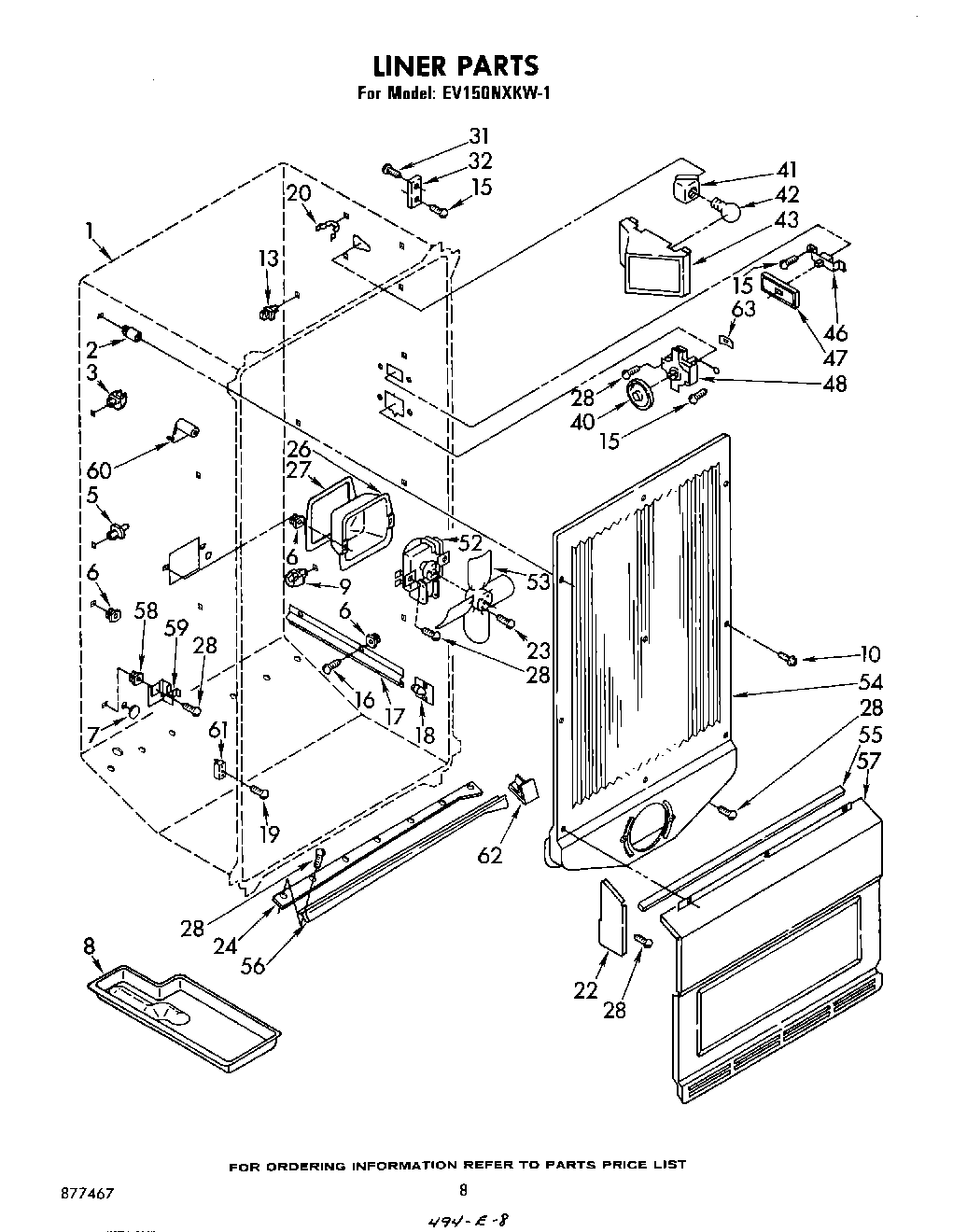

EV150NXKW1 05 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Spacer (9)
3Shelf Stud, Saddle
3Shelf Stud Saddle (R.S.)
5Shelf, Stud (2)
6Grommet
7Hole, Plug
8WPL 842041
9Stud, Shelf (2)
10Screw, 8 x 1-1/8Z
13Stud, Hook (2)
15WP489128 Whirlpool Refrigerator Screw
16WP488729 Whirlpool Refrigerator Door Screw
17Cover, Tube
18Cover, Tub Entry
19WP488163 Whirlpool Refrigerator Screw
20Speed Clip, Light Lens (3)
22Baffle, Evaporator (2)
23WP487887 Whirlpool Refrigerator Screw
24Gasket, Drain Trough
26Cover, Motor
27Gasket, Motor Cover
28W11624204 Whirlpool Screw
31Screw, 8-32 x 1-1/2
32Strap, Ground
40Knob
414387478 Whirlpool Refrigerator Light Socket
42RANGE ONLY 40W 120V APPL BULB
43Shield, Light (Freezer Compartment)
46Bracket & Switch Assembly
47Escutcheon, Power Saver
484389249 Whirlpool Refrigerator Thermostat
52482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
53WP1100938 Whirlpool Refrigerator Fan Blade
54Cover, Fan Orifice
55Gasket
56Trough, Drain
57Cover, Evaporator
58Screw Grommet
59Support, Evaporator
60Spacer, Liner (2)
61Spacer, Liner (8)
62Extension, Drain Trough
63488660 Whirlpool Refrigerator Nut
