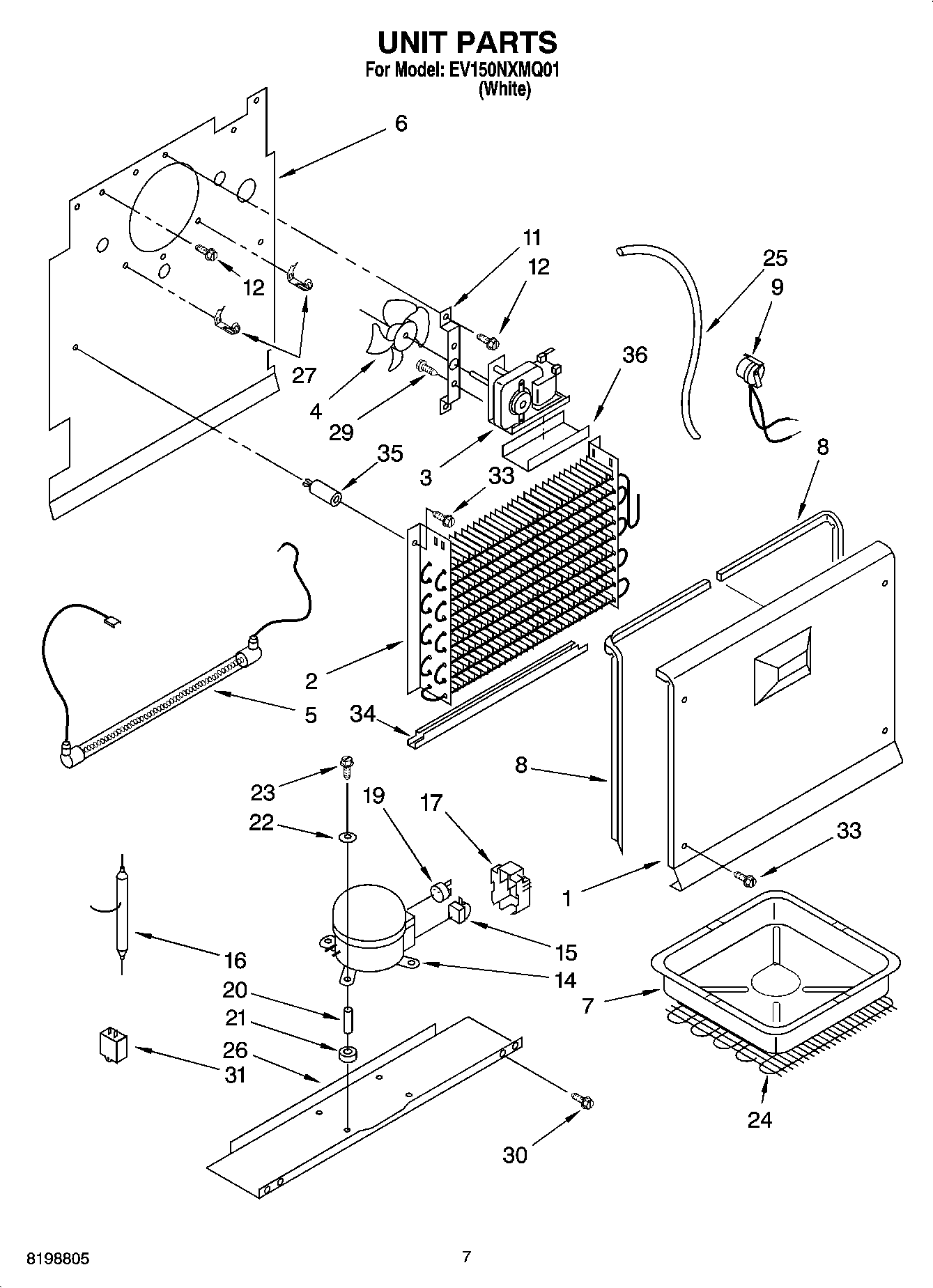

EV150NXMQ01 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Parts Not Illustrated and Optional Parts (Not Included)
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	Customer Touch-Up Material
	TAPE, VINYL (3/4 X 108“)
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	212643 Whirlpool Refrigerator Permagum Sealer
	REFINISHING MATERIAL
	Miscellaneous
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Plate, Evaporator Mount
7	WP4390675 Whirlpool Refrigerator Drip Pan
8	4390664 Whirlpool Refrigerator Gasket
8	4390663 Whirlpool Refrigerator Gasket
9	WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
14	W10309990 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	4356777 Whirlpool Term Cover
19	WP2149959 Whirlpool Refrigerator Overload
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	Screw, Compressor Mounting
24	Condenser
25	Exchanger, Heat
26	Compressor Pan
27	Thermostat, Clip
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	3-35956-013 Whirlpool Refrigerator Capacitor
33	WP3-24004-109 Whirlpool Refrigerator Screw
34	Shield, Heater
35	Grommet
36	4357128 Whirlpool Refrigerator Motor Bracket
36	REFRIGERANT CHARGE 5.8 oz. (R-134A)
