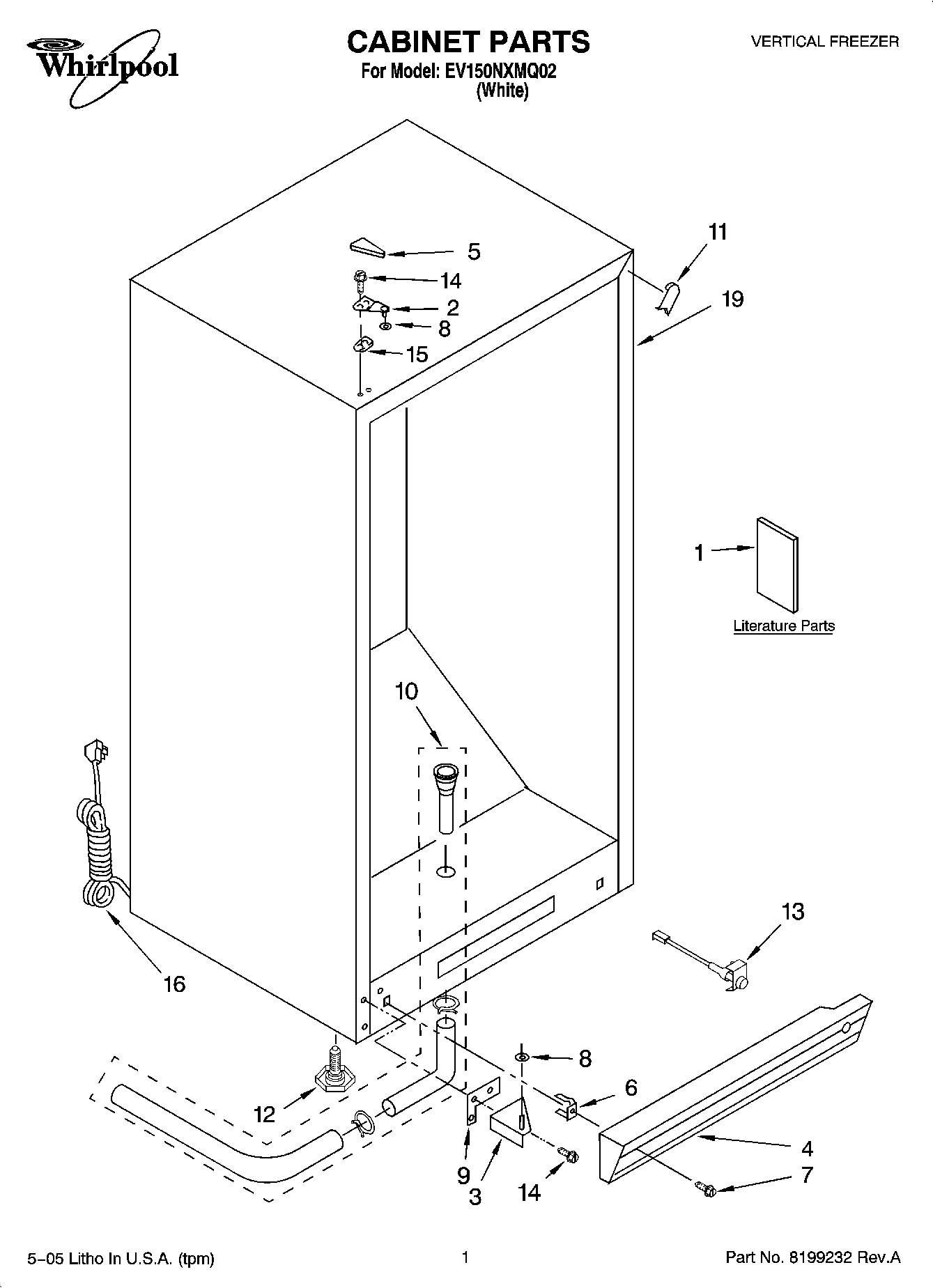

EV150NXMQ02 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Owners Manual
2	2-81016-105 Whirlpool Refrigerator Door Hinge
3	Bottom Hinge (White)
4	Grille
5	3-80838-003 Whirlpool Refrigerator Cover
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
10	Drain Hose
11	8210227 Whirlpool Refrigerator Filler
12	W11117769 Whirlpool Refrigerator Leveler
13	3-82130-001 Whirlpool Refrigerator Warning Light
14	WP8204624 Whirlpool Bolt
15	4390489 Whirlpool Refrigerator Shim
16	Power Cord
19	Cabinet (Not A Serviceable Part)
