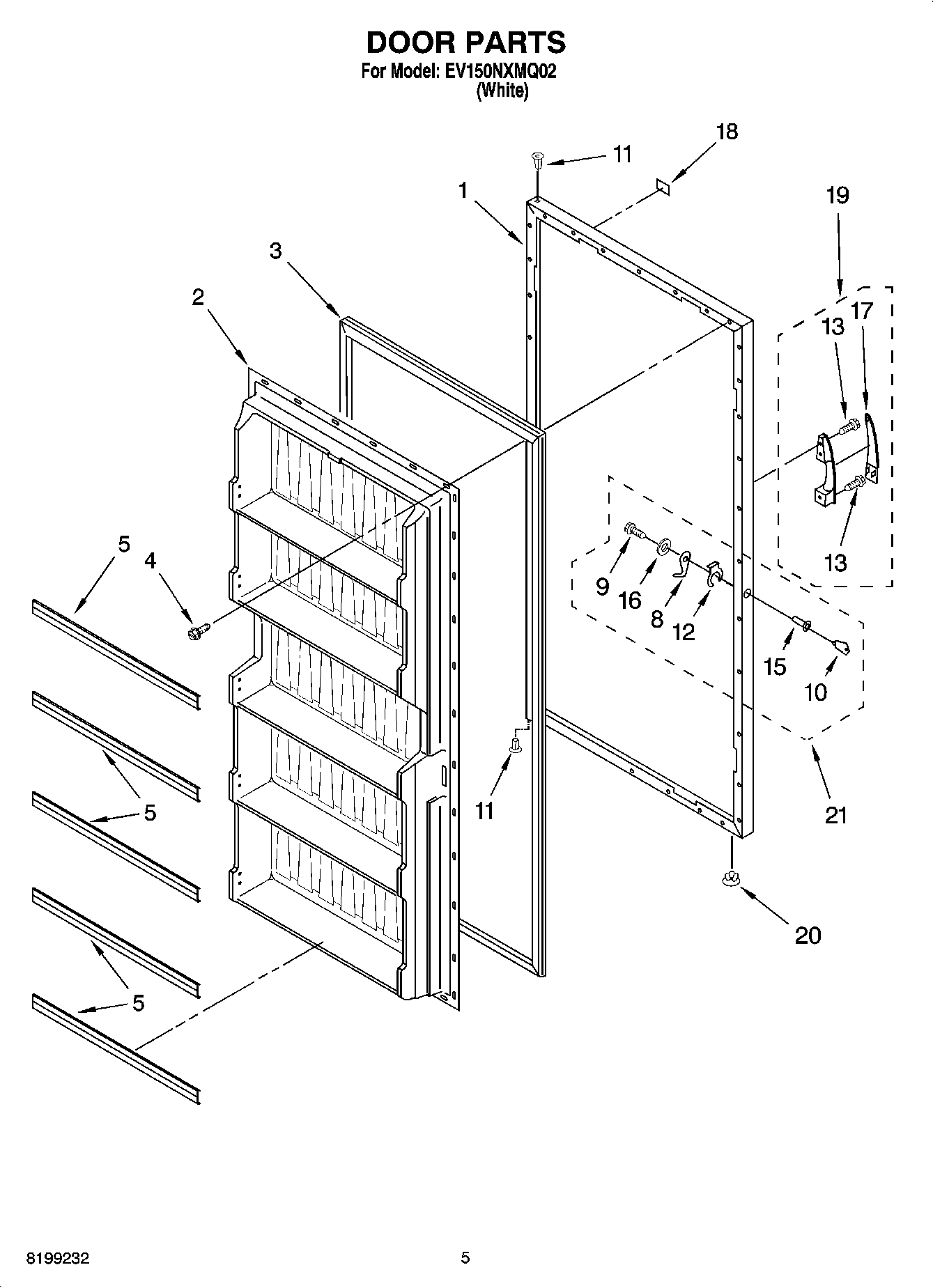

EV150NXMQ02 03 – DOOR PARTS

EV150NXMQ02 03 – DOOR PARTS

Written by

in

EV150NXMQ02 03 – DOOR PARTS

Products

PositionProduct
1Exterior Door
2WP4390870 Whirlpool Refrigerator Panel
3WP4357099 Whirlpool Refrigerator Door Gasket
44390598 Whirlpool Refrigerator Screw
5Door Shelf Trim (4)
8HOOK BOLT, LOCK
9WP489478 Whirlpool Refrigerator Screw
10WP4356840 Whirlpool Refrigerator Door Key
114390731 Whirlpool Refrigerator Hinge Bushing
12Spring Clip
13WP489491 Whirlpool Refrigerator Screw
154357145 Whirlpool Refrigerator Door Lock
16Washer
17Insert, Handle
18Nameplate (White)
19Handle Assembly (Includes Items 13 & 14)
203-24898-007 Whirlpool Refrigerator Vent Plug
