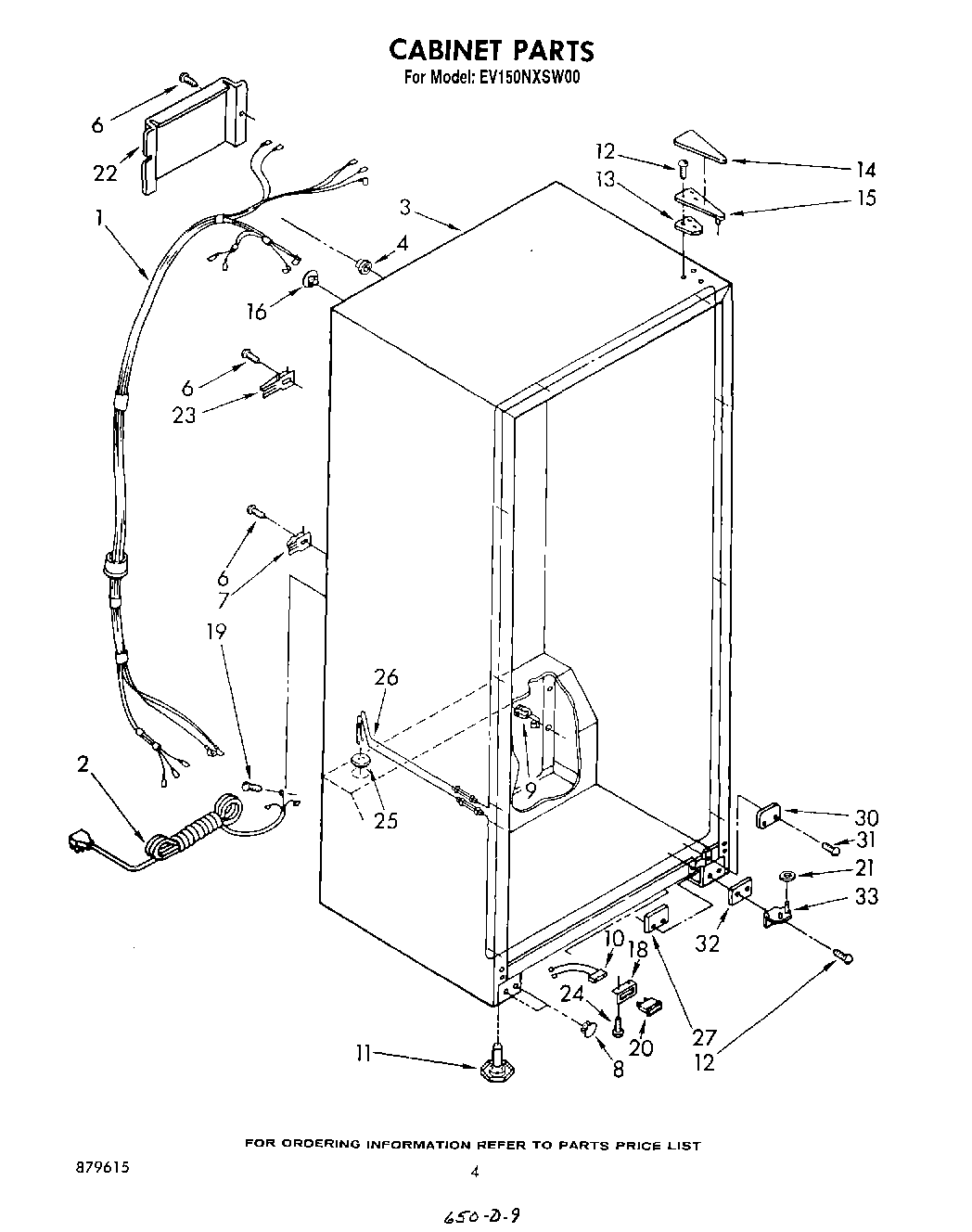

EV150NXSW00 03 – CABINET

Products

Position	Product
1	Cabinet Wiring Assembly
2	Cord, Service
3	Cabinet (Not A Serviceable Part)
4	Grommet, Wiring
6	W11624204 Whirlpool Screw
7	Clamp
8	WPL 941416
8	Hole, Plug (2) (Almond)
9	Bushing, Strain Relief
10	Wire Assembly, Signal Light
11	repair
11	W11117769 Whirlpool Refrigerator Leveler
12	WP999367 Whirlpool Refrigerator Screw
12	Screw (Repair)
13	Shim, Hinge
13	WPL 836151
14	1119787 Whirlpool Refrigerator Hinge Cover
15	Hinge & Shim (Top)
16	940014 Whirlpool Refrigerator Primary Button Plug
18	Bracket, Signal Light
19	Screw, 8-32 x 3/8
20	Light, Signal
21	WP487802 Whirlpool Refrigerator Washer
21	WP487576 Whirlpool Washer
22	Cover, Wiring
23	Clamp
24	WP965173 Whirlpool Dishwasher Screw
25	Grommet, Wiring
26	Heater, Stile
27	Tap Plate, Bottom
30	Tube, Rail Cover (Almond)
30	Tube, Rail Cover (White)
31	Screw
32	Shim, Bottom Hinge
33	Hinge, Bottom R.H.
