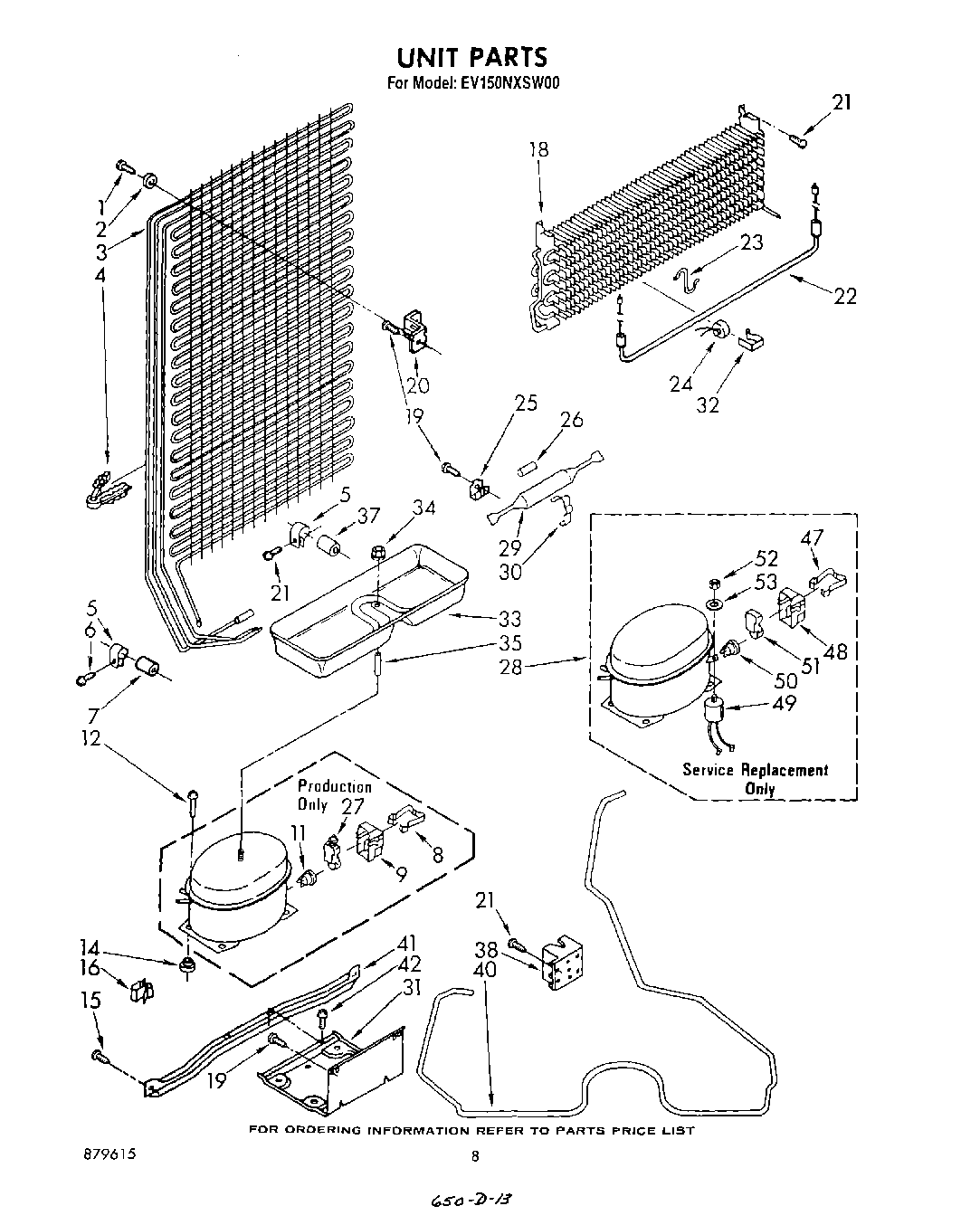

EV150NXSW00 06 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	Dampener
9	Terminal Cover
11	Overload
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
18	Evaporator
19	WP489069 Whirlpool Compactor Screw
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
22	Heater, Defrost
23	Support, Heater
24	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
25	Clip, Condenser Mounting (2)
26	Restrictor Sleeve
27	Relay
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Unit Mounting Plate
32	Clamp
33	Tray, Evaporator
34	285002 Whirlpool Nut
35	Spacer
37	Dampener
38	Junction Box
40	Heat Exchanger
41	Unit Mounting Rail
42	repair
42	WP965173 Whirlpool Dishwasher Screw
47	Strap
48	Cover, Terminal
49	Capacitor
50	Overload
51	Relay
52	Nut
53	978030 Whirlpool Refrigerator Valve
53	WP978025 Whirlpool Refrigerator Valve
53	Washer
53	876764 Whirlpool Refrigerator Primary Valve
53	VALVE, ACCESS (1/2“)
53	VALVE, ACCESS (5/8“)
53	978026 Whirlpool Refrigerator Primary Valve
53	978027 Whirlpool Refrigerator Primary Valve
