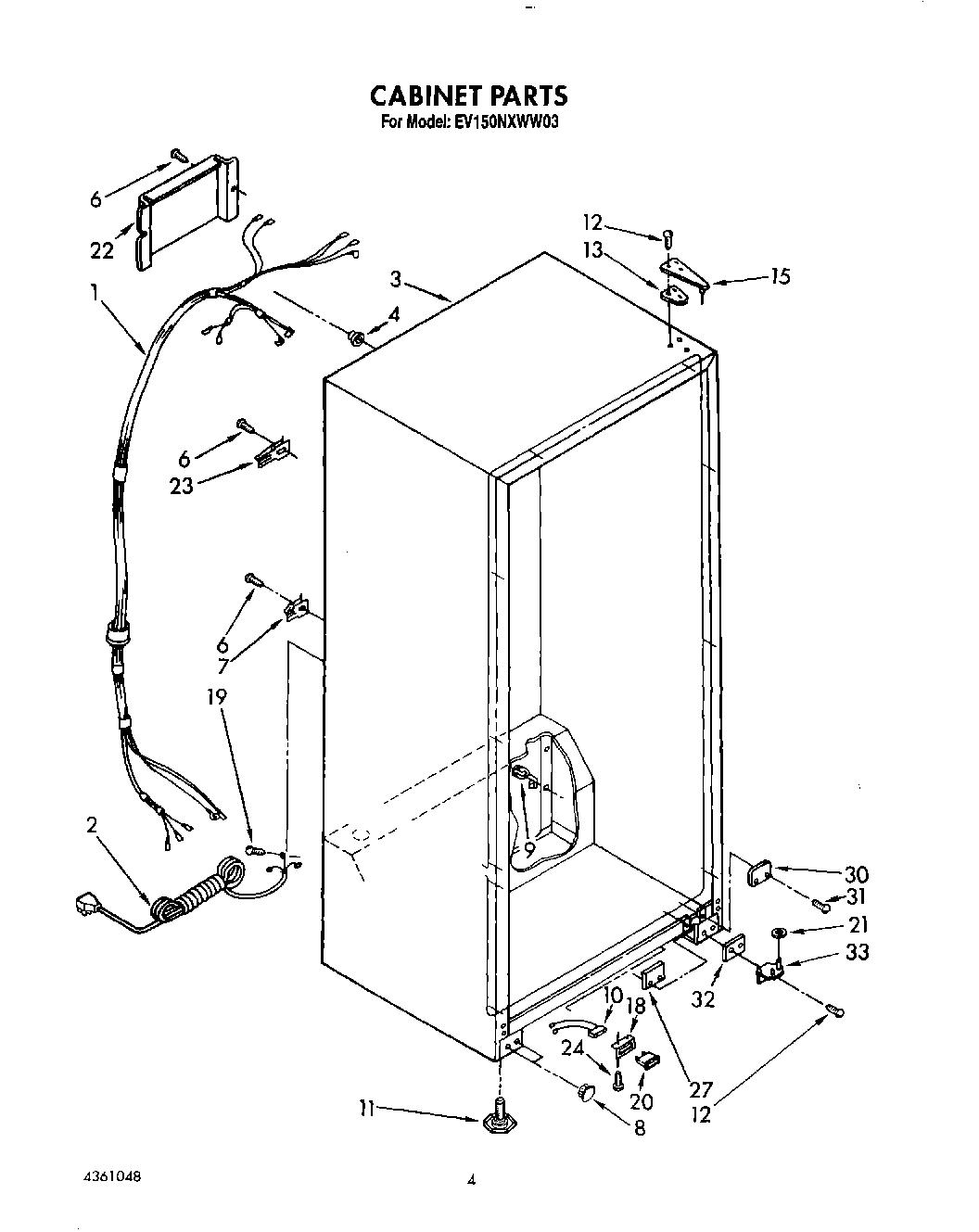

EV150NXWN03 03 – CABINET

Products

Position	Product
1	Cabinet Wiring Assembly
2	Cord, Service
3	Cabinet (Not A Serviceable Part)
4	Grommet, Wiring
6	WP489478 Whirlpool Refrigerator Screw
7	Clamp
8	Hole, Plug (2) (Almond)
8	WPL 941416
9	Bushing, Strain Relief
10	Wire Assembly, Signal Light
11	W11117769 Whirlpool Refrigerator Leveler
11	repair
12	WP999367 Whirlpool Refrigerator Screw
13	Shim, Hinge
15	Shim, Hinge Top
18	Bracket, Signal Light
19	Screw, 8-32 x 3/8
20	Light, Signal
21	WP487576 Whirlpool Washer
21	WP487802 Whirlpool Refrigerator Washer
22	Cover, Wiring
23	Clamp
24	WP965173 Whirlpool Dishwasher Screw
27	Tap Plate, Bottom
30	Tube, Rail Cover (Almond)
30	Tube, Rail Cover (White)
31	Screw
32	Shim, Bottom Hinge
33	Hinge, Bottom R.H.
