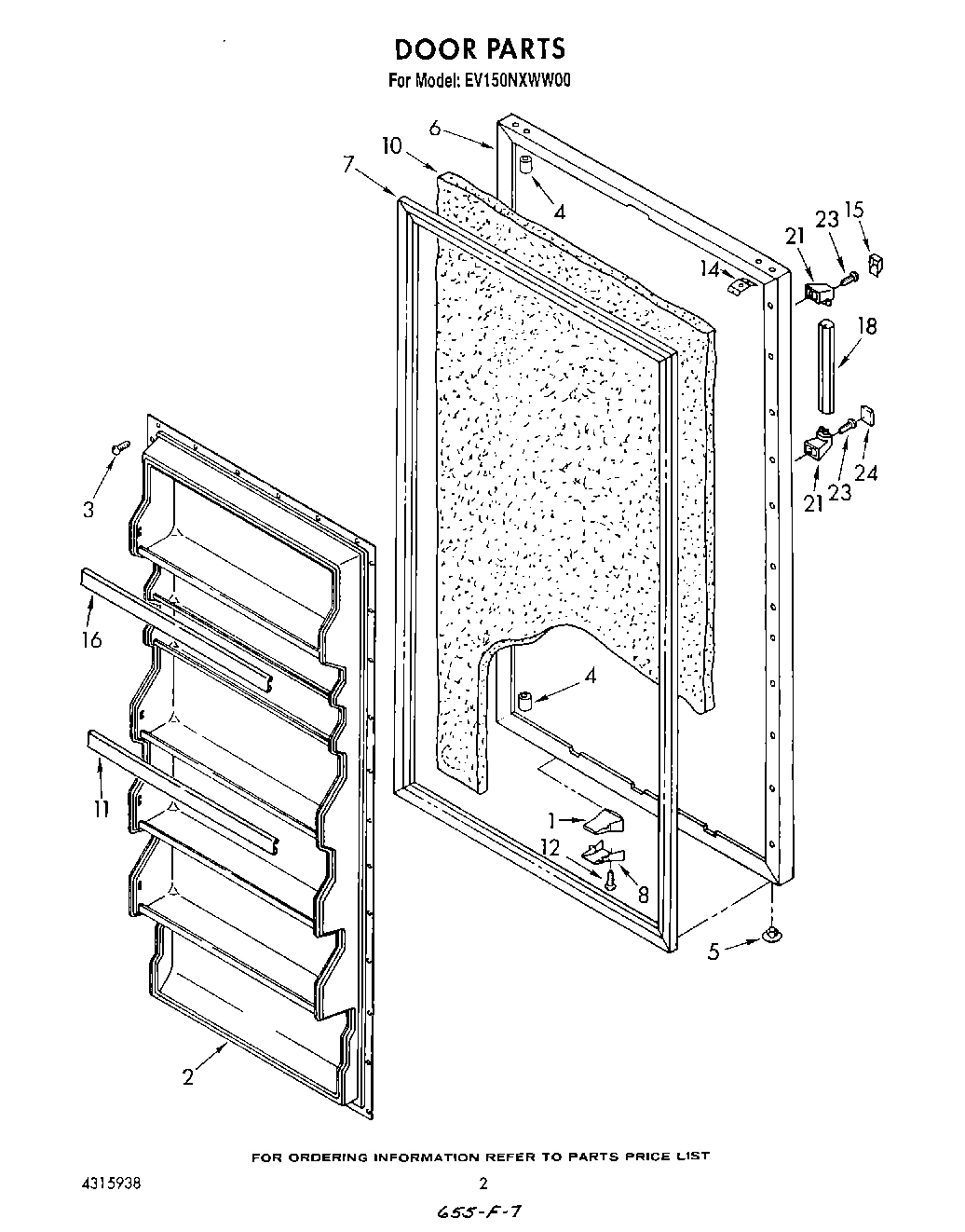

EV150NXWW00 02 – DOOR, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	Leveler (Thinner) (2oz.)
	WPL 511881
	350942 Whirlpool Spray Paint
	WPL LIT4315938
	WPL LIT656493
	350956 Whirlpool Spray Assembly
	WPL LIT1127780
	WPL LIT1114906
	WPL LIT1114873
1	Transmitter, Light
2	Panel, Interior
3	SCREW
3	WP489069 Whirlpool Compactor Screw
4	Cap, Hinge Sleeve (2)
5	Hole Plug (2)
6	Door, Exterior (Almond (Also Order Item 8))
6	Door, Exterior (White)
7	2188436A Whirlpool Refrigerator Door Gasket
8	Cover, Light Transmitter
11	Trim, Door
12	Screw
14	WP939101 Whirlpool Refrigerator Plate
15	Cover, Screw
16	Trim, Door Top
18	Handle, Center
21	End Cap, Handle (2)
23	Screw, 8-15 x 1-5/8
24	Cover, End Cap
24	WP72107 Whirlpool Touchup
24	Almond (Uncut)
24	212643 Whirlpool Refrigerator Permagum Sealer
24	799344 Whirlpool Refrigerator Paint
24	72017 Whirlpool Appliance Touch-Up Paint White
24	606755 Whirlpool Refrigerator Bag
24	WPL 876029
24	Enamel, Black (1 Qt. Uncut)
24	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
24	WP505587 Whirlpool Refrigerator Sealer
24	72032 Whirlpool Touch Up Paint Black
24	WP503695 Whirlpool Refrigerator Sealer
24	876370 Whirlpool Refrigerator Insulation
24	Transformer (115-230 Volt)
24	833938 Whirlpool Refrigerator Terminal
24	WPL 799833
