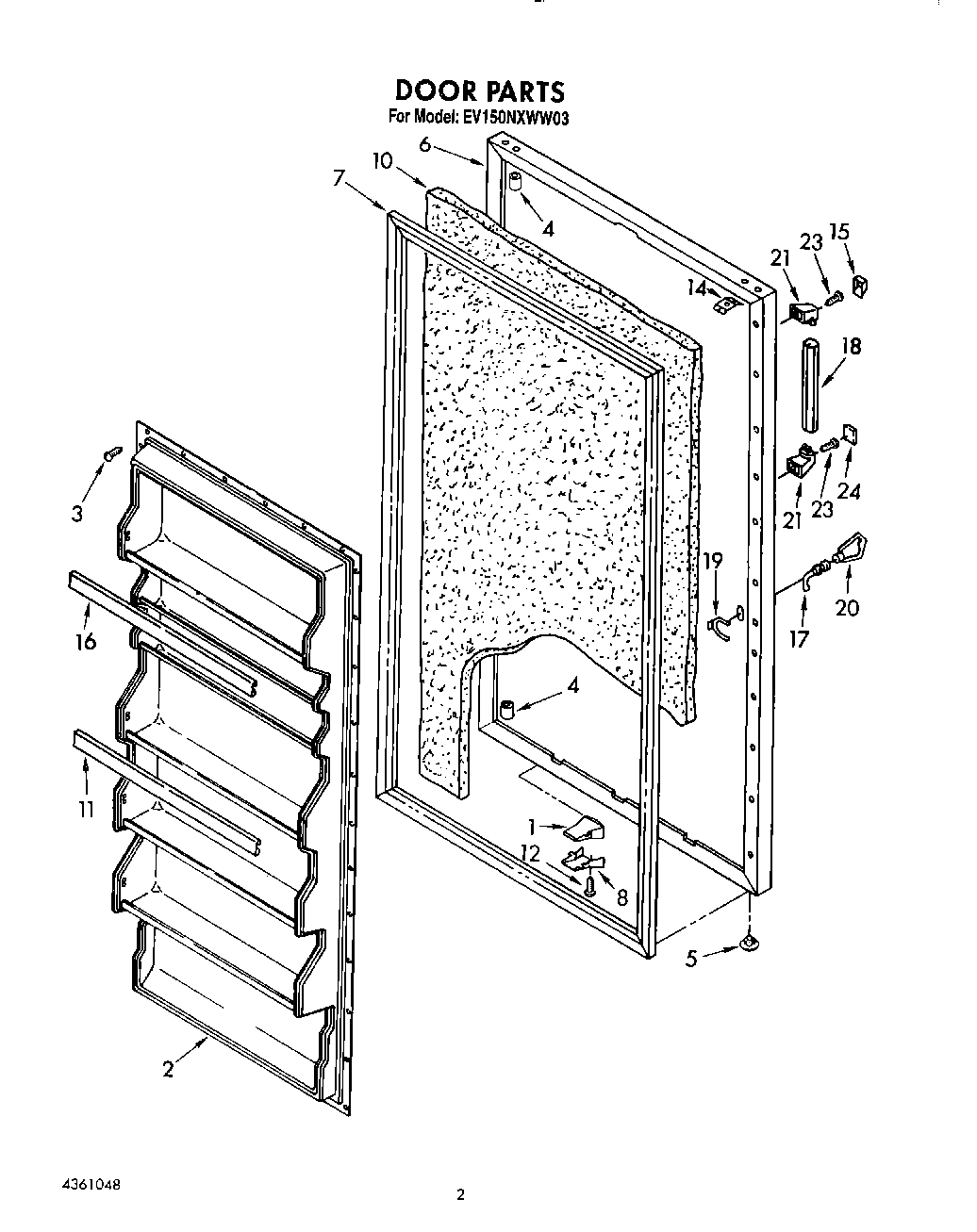

EV150NXWW03 02 – DOOR, LIT/OPTIONALadmin2025-04-26T11:11:36+00:00EV150NXWW03 02 – DOOR, LIT/OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT1114915 |
| WPL LIT656493 |
| WPL LIT4361048 |
| WPL LIT1114942 |
| WPL LIT1127780 |
| 1 | Transmitter, Light |
| 2 | Panel, Interior |
| 3 | WP489069 Whirlpool Compactor Screw |
| 3 | SCREW |
| 4 | Cap, Hinge Sleeve (2) |
| 5 | Hole Plug (2) |
| 6 | Door, Exterior (Almond (Also Order Item 10)) |
| 6 | Door, Exterior (White) |
| 7 | 2188436A Whirlpool Refrigerator Door Gasket |
| 8 | Cover, Light Transmitter |
| 11 | Trim, Door |
| 12 | Screw |
| 14 | WP939101 Whirlpool Refrigerator Plate |
| 15 | Cover, Screw |
| 16 | Trim, Door Top |
| 17 | Lock |
| 18 | Handle, Center |
| 19 | Clip, Spring |
| 20 | WP842177 Whirlpool Refrigerator Door Key |
| 21 | End Cap, Handle (2) |
| 23 | Screw |
| 24 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 24 | Almond (Uncut) |
| 24 | 350930 Whirlpool White Spray Paint |
| 24 | Cover, End Cap |
| 24 | WP72107 Whirlpool Touchup |
| 24 | 799344 Whirlpool Refrigerator Paint |
| 24 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 24 | 350956 Whirlpool Spray Assembly |
| 24 | 350942 Whirlpool Spray Paint |
| 24 | 606755 Whirlpool Refrigerator Bag |
| 24 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 24 | 285006 Whirlpool Spray |
| 24 | 72032 Whirlpool Touch Up Paint Black |
| 24 | WPL 799833 |
| 24 | Enamel, Black (1 Qt. Uncut) |
| 24 | WP505587 Whirlpool Refrigerator Sealer |
| 24 | Leveler (Thinner) (2oz.) |
| 24 | Transformer (115-230 Volt) |
| 24 | WP503695 Whirlpool Refrigerator Sealer |
| 24 | 876370 Whirlpool Refrigerator Insulation |
| 24 | 833938 Whirlpool Refrigerator Terminal |
| 24 | WPL 876029 |
