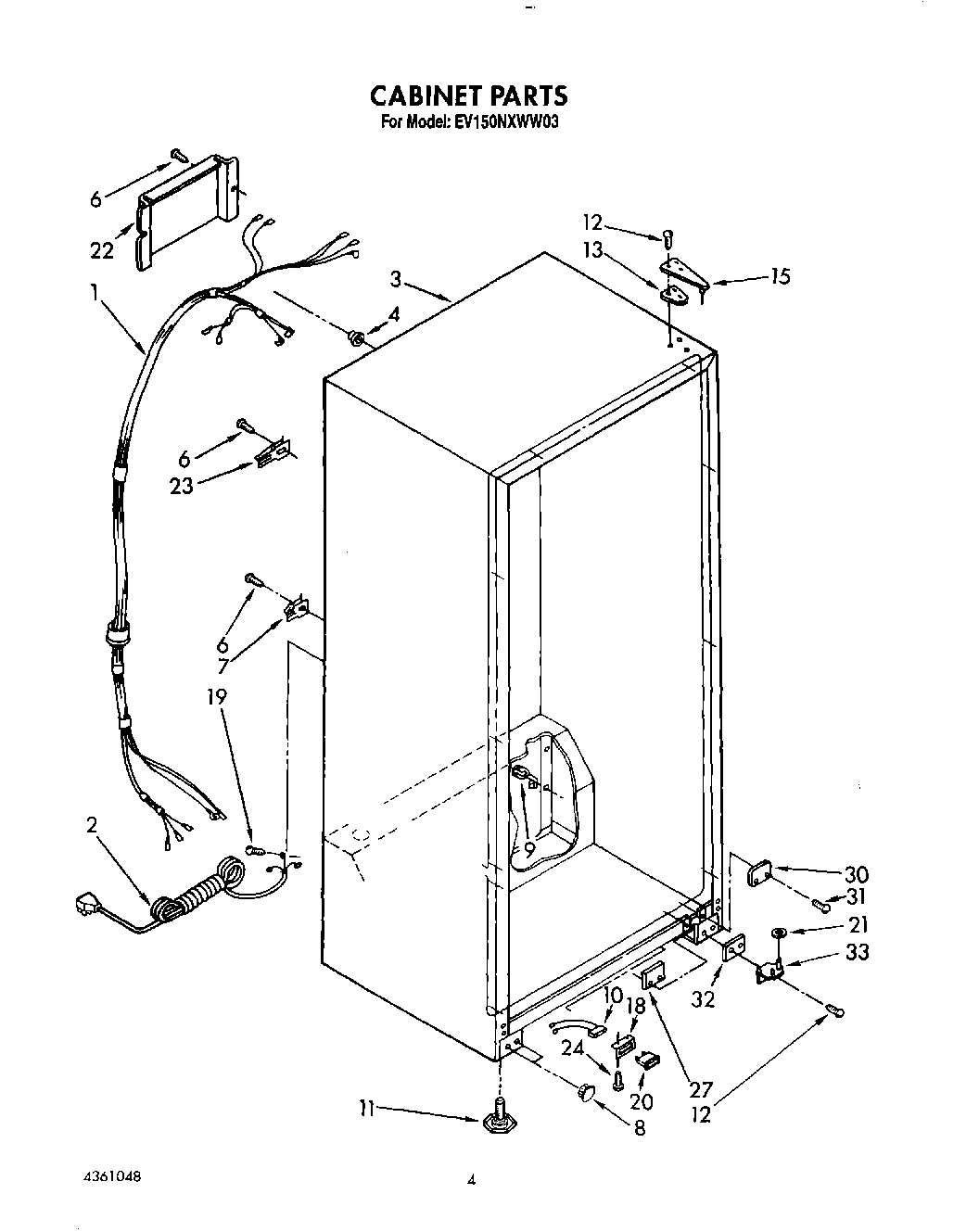

| 1 | Cabinet Wiring Assembly |
| 2 | Cord, Service |
| 3 | Cabinet (Not A Serviceable Part) |
| 4 | Grommet, Wiring |
| 6 | WP489478 Whirlpool Refrigerator Screw |
| 7 | Clamp |
| 8 | Hole, Plug (2) (Almond) |
| 8 | WPL 941416 |
| 9 | Bushing, Strain Relief |
| 10 | Wire Assembly, Signal Light |
| 11 | W11117769 Whirlpool Refrigerator Leveler |
| 11 | repair |
| 12 | WP999367 Whirlpool Refrigerator Screw |
| 13 | Shim, Hinge |
| 15 | Shim, Hinge Top |
| 18 | Bracket, Signal Light |
| 19 | Screw, 8-32 x 3/8 |
| 20 | Light, Signal |
| 21 | WP487576 Whirlpool Washer |
| 21 | WP487802 Whirlpool Refrigerator Washer |
| 22 | Cover, Wiring |
| 23 | Clamp |
| 24 | WP965173 Whirlpool Dishwasher Screw |
| 27 | Tap Plate, Bottom |
| 30 | Tube, Rail Cover (Almond) |
| 30 | Tube, Rail Cover (White) |
| 31 | Screw |
| 32 | Shim, Bottom Hinge |
| 33 | Hinge, Bottom R.H. |
