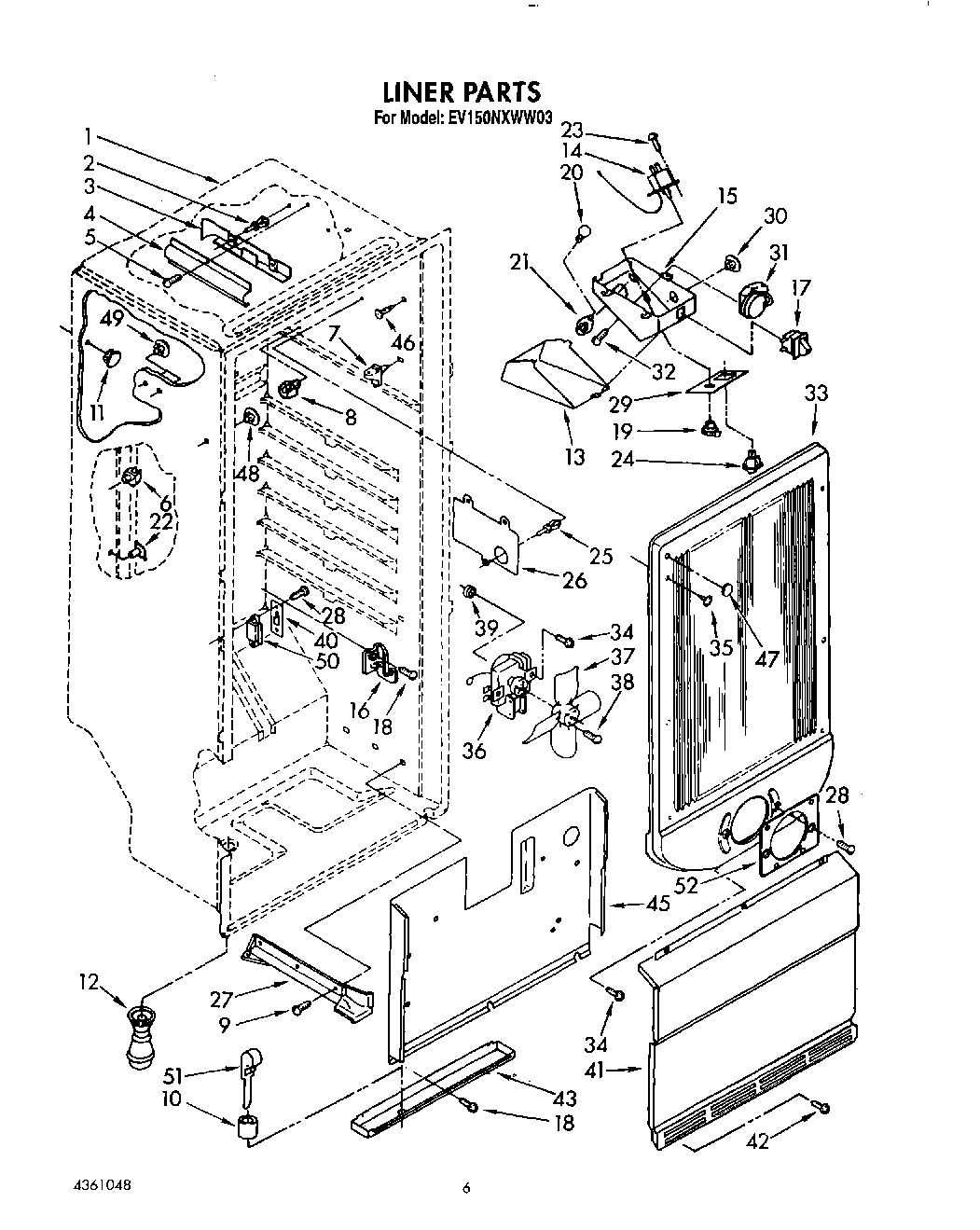

EV150NXWW03 04 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Rivet, Plastic (2)
3	Wire, Cover (Rear)
4	Wire, Cover (Front)
5	Screw, 8-15 x 1/2 (4)
7	Stud, Front R.S.
8	819091 Whirlpool Refrigerator Shelf Stud
10	Extension, Drain Hole
11	WPL 655411
12	Fitting, Drain
13	Light, Lens
14	4389248 Whirlpool Refrigerator Thermostat
15	Control Box
16	Evaporator Support (2)
17	W11384469 Whirlpool Door Switch
18	WP489478 Whirlpool Refrigerator Screw
19	Control Knob, Thermostat
20	W11679940 Whirlpool Refrigerator Light Bulb Assembly
21	4387478 Whirlpool Refrigerator Light Socket
22	Spacer
23	Screw, 8-32 x 3/8
24	WP938213 Whirlpool Refrigerator Power Switch
25	939962 Whirlpool Refrigerator Rivet
26	Shield, Electrical
27	Cover Tube, Bottom
28	W11693756 Whirlpool Screw Assembly
29	Insert, Control Panel
31	Defrost Timer, (10 Hr.)
32	WP487353 Whirlpool Refrigerator Screw
33	Air Duct & Fan Cover
34	Screw (2)
35	WP489115 Whirlpool Refrigerator Rivet
36	Motor, Fan
37	WP1100938 Whirlpool Refrigerator Fan Blade
38	WP487887 Whirlpool Refrigerator Screw
39	Grommet
40	Strike, Lock
41	Evaporator, Cover
42	WP488729 Whirlpool Refrigerator Door Screw
43	Pan, Drain
45	Shield, Heat
46	Stud, Support
47	Hole Plug
48	WP941839 Whirlpool Refrigerator Button Plug
49	940014 Whirlpool Refrigerator Primary Button Plug
50	Lock Strike, Back-Up
51	Heat, Probe
52	Fan, Mounting Cover
