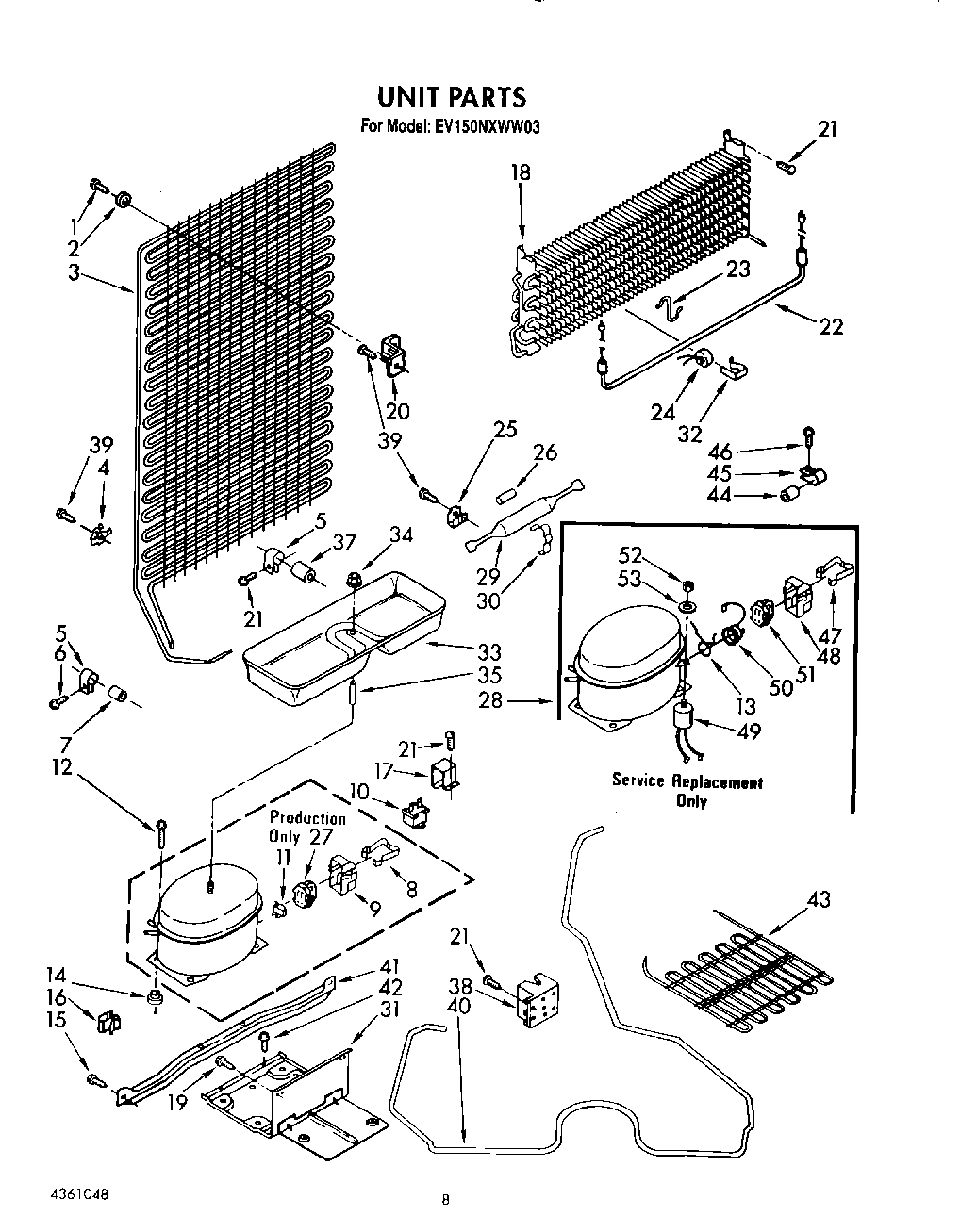

EV150NXWW03 06 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser Assembly
4	Clip, Tube (4)
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	Dampener
9	Cover
10	WPW10662129 Whirlpool Refrigerator Run Capacitor
11	Overload
13	Overload Spring
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
17	WP43449 Whirlpool Bracket
18	Evaporator
20	Condenser Bracket (Top)
21	WP489478 Whirlpool Refrigerator Screw
22	Heater, Defrost
23	Support, Heater
24	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
25	Clip, Condenser Mounting (2)
26	Restrictor Sleeve
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	W10843121 Whirlpool Refrigerator Tube
30	Clamp, Dryer
31	Plate Assembly, Unit Mounting
32	Clamp
33	Tray, Evaporator
34	285002 Whirlpool Nut
35	Spacer
37	Dampener (4)
38	Junction Box
40	Heat Exchanger
41	Unit Mounting Rail
42	WP965173 Whirlpool Dishwasher Screw
43	Precooler
44	WPL 1118889
45	WPL 1115557
46	WP489128 Whirlpool Refrigerator Screw
47	Strap
48	Cover, Terminal
49	Capacitor
50	Overload
51	WP2262181 Whirlpool Refrigerator Start Relay
52	Nut
53	VALVE, ACCESS (5/8“)
53	978027 Whirlpool Refrigerator Primary Valve
53	876764 Whirlpool Refrigerator Primary Valve
53	VALVE, ACCESS (1/2“)
53	WP978025 Whirlpool Refrigerator Valve
53	978026 Whirlpool Refrigerator Primary Valve
53	978030 Whirlpool Refrigerator Valve
53	Washer
