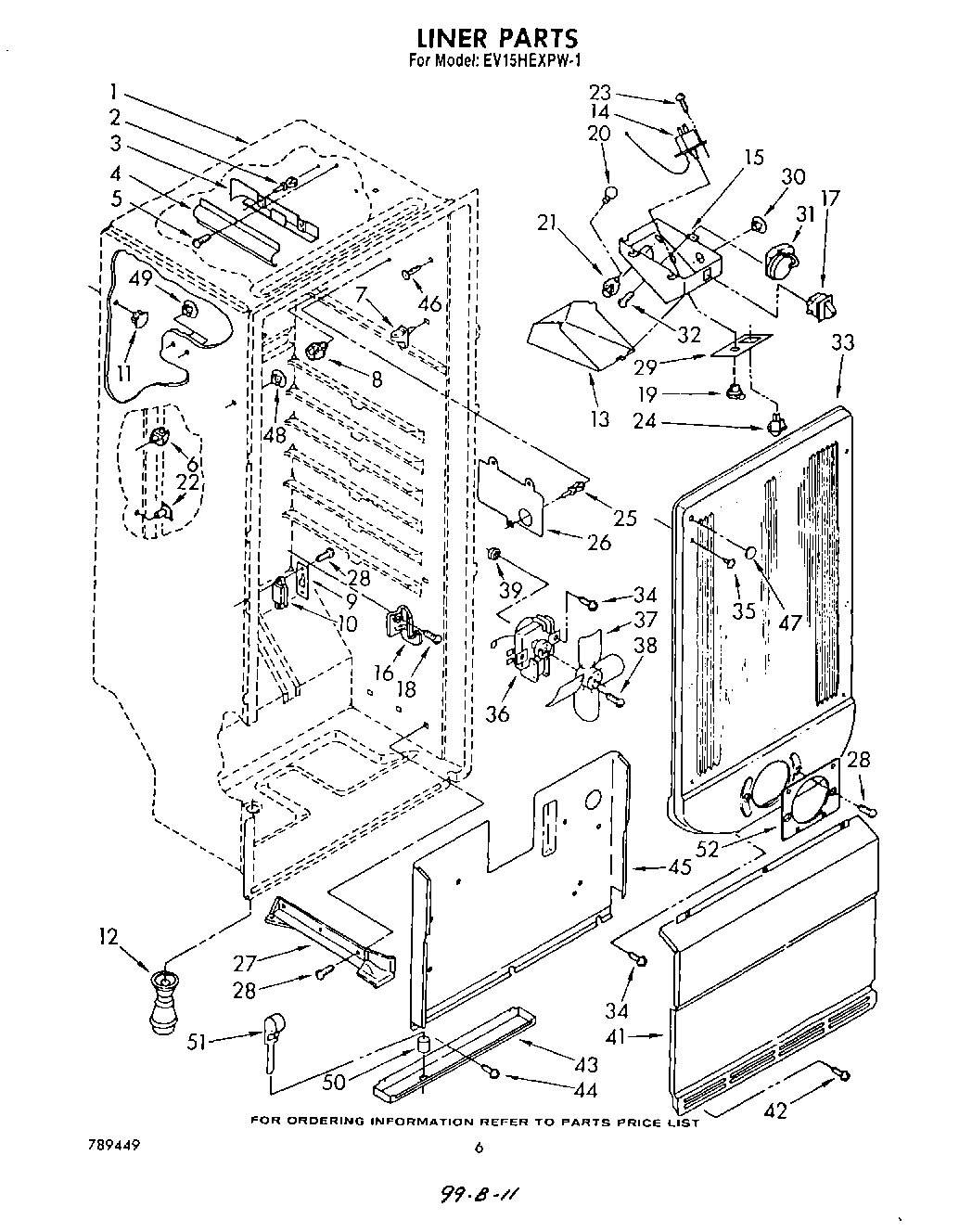

| 1 | Liner (Not A Serviceable Part) |
| 2 | Rivet, Plastic (2) |
| 3 | Wire, Cover (Rear) |
| 4 | Wire, Cover (Front) |
| 5 | Screw, 8-15 x 1/2 (4) |
| 7 | Stud, Front R.S. |
| 8 | 819091 Whirlpool Refrigerator Shelf Stud |
| 9 | Strike, Lock |
| 10 | Lock Strike, Back-Up |
| 11 | WPL 655411 |
| 12 | Fitting, Drain |
| 13 | Light, Lens |
| 14 | 4389248 Whirlpool Refrigerator Thermostat |
| 15 | Control Box |
| 16 | Evaporator Support (2) |
| 17 | W11384469 Whirlpool Door Switch |
| 19 | Control Knob, Thermostat |
| 20 | W11679940 Whirlpool Refrigerator Light Bulb Assembly |
| 21 | 4387478 Whirlpool Refrigerator Light Socket |
| 22 | Spacer |
| 23 | Screw, 8-32 x 3/8 |
| 24 | WP938213 Whirlpool Refrigerator Power Switch |
| 25 | 939962 Whirlpool Refrigerator Rivet |
| 26 | Shield, Electrical |
| 27 | Cover Tube, Bottom |
| 28 | screw (repair) |
| 28 | W11693756 Whirlpool Screw Assembly |
| 29 | Insert, Control Panel |
| 30 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 31 | Defrost Timer (10 Hr.) |
| 32 | WP487353 Whirlpool Refrigerator Screw |
| 33 | Air Duct & Fan Cover |
| 34 | WP488488 Whirlpool Refrigerator Screw |
| 35 | WP489115 Whirlpool Refrigerator Rivet |
| 36 | Motor, Fan |
| 37 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 38 | WP487887 Whirlpool Refrigerator Screw |
| 39 | Grommet |
| 41 | Evaporator, Cover |
| 42 | WP488729 Whirlpool Refrigerator Door Screw |
| 43 | Pan, Drain |
| 44 | W11624204 Whirlpool Screw |
| 45 | Shield, Heat |
| 46 | Stud, Support |
| 47 | Hole Plug |
| 48 | WP941839 Whirlpool Refrigerator Button Plug |
| 49 | Hole Plug (2) |
| 50 | Extension, Drain |
| 51 | Heat Prove |
| 52 | Fan, Mounting Cover |
