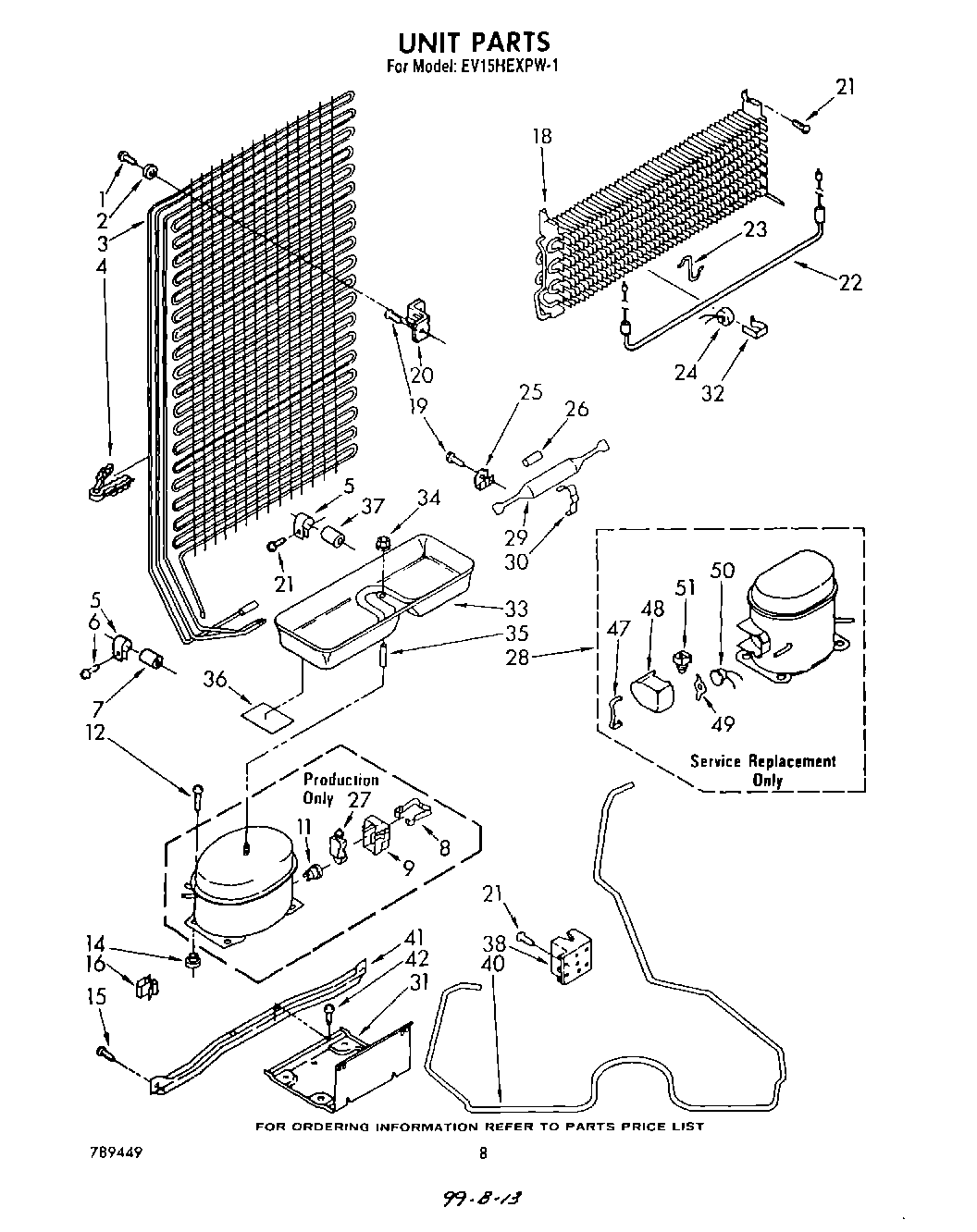

EV15HEXPW1 06 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	Dampener
8	Strap
9	Cover, Terminal
11	Overload
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
18	Evaporator
19	WP489069 Whirlpool Compactor Screw
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
22	Heater, Defrost
23	Support, Heater
24	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
25	Clip, Condenser Mounting (2)
26	Restrictor Sleeve
27	Relay
28	W10439652 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Unit Mounting Plate
32	Clamp
33	Tray, Evaporator
34	285002 Whirlpool Nut
35	Spacer
36	Pad, Sound
37	Dampener
38	Junction Box
40	Heat Exchanger
41	Unit Mounting Rail
42	WP965173 Whirlpool Dishwasher Screw
42	repair
47	Cover, Spring
48	Cover, Terminal
49	Spring, Overload
50	Overload
51	WP978025 Whirlpool Refrigerator Valve
51	978030 Whirlpool Refrigerator Valve
51	876764 Whirlpool Refrigerator Primary Valve
51	VALVE, ACCESS (5/8“)
51	Relay
51	978027 Whirlpool Refrigerator Primary Valve
51	978026 Whirlpool Refrigerator Primary Valve
51	VALVE, ACCESS (1/2“)
