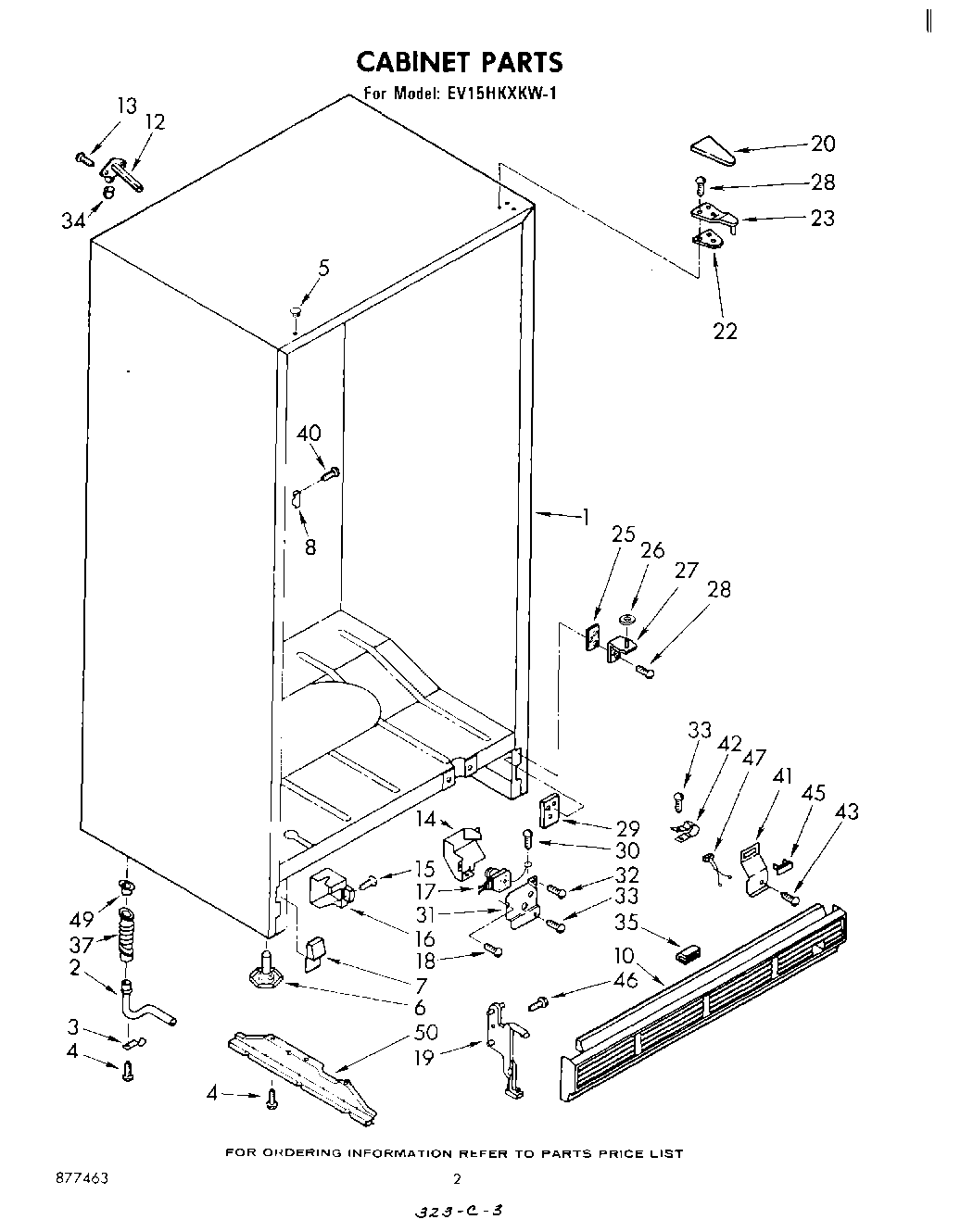

EV15HKXKW1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Extension, Drain Fitting
3	Cup, Drain Extension
4	Screw, 8-32 x 1/2
5	Hole Plug (2) (Almond)
5	Hole Plug (2) (White)
5	Hole Plug (Coffee)
5	Hole Plug (New Avocado)
5	Hole Plug (2) (Golden Harvest)
6	W11117769 Whirlpool Refrigerator Leveler
7	WPL 989930
7	Corner, Filler (
7	WPL 989931
7	WPL 989928
7	WPL 989929
8	Bracket, Strike
10	Grille, Exterior (White)
10	Grille, Exterior (Coffee)
10	Grille, Exterior (New Gold)
10	Grille, Exterior (New Avocado)
10	Grille, Exterior (Almond)
12	WP2196157 Whirlpool Fill Tube
13	WP98165 Whirlpool Screw
14	Guard, Timer
15	WP488729 Whirlpool Refrigerator Door Screw
16	WPL 549947
17	Defrost Timer, 8 Hour
18	WP965173 Whirlpool Dishwasher Screw
19	WPL 844614
20	Hinge Cover (Golden Harvest)
20	1119787 Whirlpool Refrigerator Hinge Cover
20	Hinge, Cover (Coffee)
20	Hinge Cover (New Avocado)
22	WPL 836151
23	Hinge & Shim (Top)
25	Shim, Bottom Hinge
26	WP487802 Whirlpool Refrigerator Washer
27	Hinge (Bottom)
28	Screw (Repair)
28	WP999367 Whirlpool Refrigerator Screw
29	Tap Plate
31	Plate, Timer
32	Screw, 6-20 x 3/8
33	Screw, 8 x 3/8
34	WP487996 Whirlpool Refrigerator Cap Tube
35	Bumper, Grille
37	Fitting, Drain
40	WP489128 Whirlpool Refrigerator Screw
41	Bracket, Pilot Light
42	Cleat, Cord
43	Screw, 8-32 x 3/8
45	Light, Pilot
46	W11624204 Whirlpool Screw
47	WPL 549538
49	WPL 981148
50	WPL 843164
