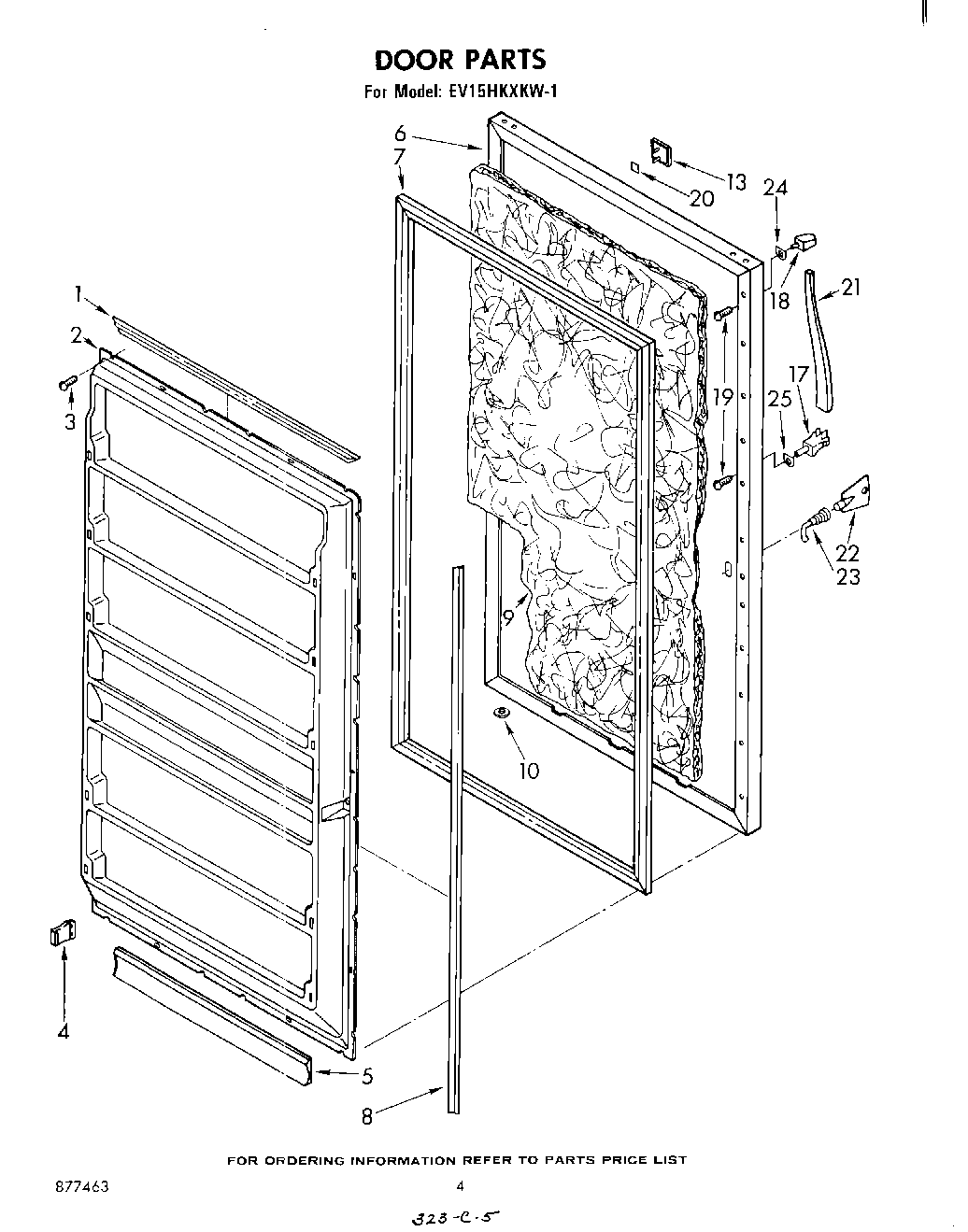

EV15HKXKW1 03 – DOOR , LIT/OPTIONALadmin2025-04-26T11:09:33+00:00EV15HKXKW1 03 – DOOR , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| 285006 Whirlpool Spray |
| 350942 Whirlpool Spray Paint |
| WPL 511881 |
| Leveler (Thinner) (2oz.) |
| 350956 Whirlpool Spray Assembly |
| 1 | Retainer, Top & Bottom (2) |
| 2 | Panel |
| 3 | SCREW |
| 3 | W11624204 Whirlpool Screw |
| 4 | Retainer, Trim (8) |
| 5 | Trim, Shelf |
| 6 | Door, Exterior (White) |
| 6 | Door, Exterior (Almond) |
| 7 | 2188439A Whirlpool Refrigerator Door Gasket |
| 8 | Retainer Side, Gasket |
| 10 | Hole Plug (2) |
| 13 | Insert, Nameplate |
| 17 | WPL 982947 |
| 18 | WPL 982948 |
| 19 | Screw (2) |
| 20 | Tape Strip |
| 21 | WPL 982978 |
| 22 | Key |
| 23 | Lock |
| 24 | WPL 941918 |
| 25 | 799344 Whirlpool Refrigerator Paint |
| 25 | WP72107 Whirlpool Touchup |
| 25 | Almond (Uncut) |
| 25 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 25 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 25 | Guide, Use & Care |
| 25 | 511873 Whirlpool Refrigerator Paint |
| 25 | Energy Guide |
| 25 | WPL 941917 |
| 25 | WPL 799833 |
| 25 | WPL 876029 |
| 25 | Enamel, Black (1 Qt. Uncut) |
| 25 | WP505587 Whirlpool Refrigerator Sealer |
| 25 | 72032 Whirlpool Touch Up Paint Black |
| 25 | 876370 Whirlpool Refrigerator Insulation |
| 25 | 606755 Whirlpool Refrigerator Bag |
| 25 | WPL 799351 |
| 25 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 25 | Book, How To Freeze |
| 25 | WPL 799832 |
| 25 | List, Parts |
