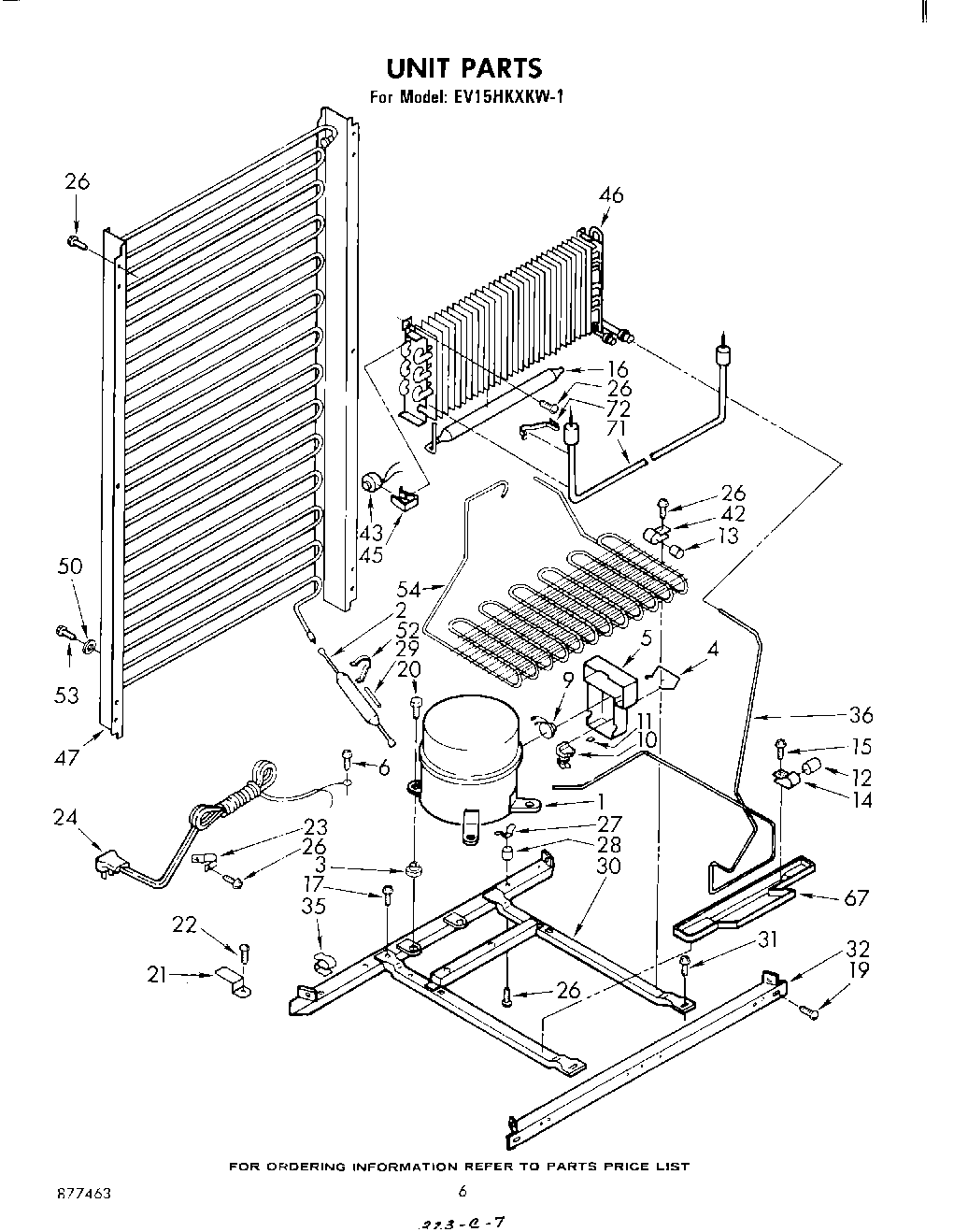

EV15HKXKW1 04 – UNIT

Products

Position	Product
1	Compressor
2	W10843121 Whirlpool Refrigerator Tube
3	Grommet (4)
4	Spring
5	Case, Relay
6	Screw, 8-32 x 3/8
9	Overload
10	Relay
11	Bumper
12	Dampener (2)
13	Dampener
14	Clamp Tube
15	WPW10141625 Whirlpool Refrigerator Screw Assembly
16	Header & Tube Assembly
17	303776 Whirlpool Dishwasher Screw
19	489340 Whirlpool Refrigerator Screw
20	Screw, 1/4-28 x 1“ (4)
21	Clip, Cord Plug
22	Screw
23	549193 Whirlpool Refrigerator Power Clamp
24	Cord, Service
26	W11624204 Whirlpool Screw
27	Clamp, Tube
28	Grommet (4)
29	Restrictor Sleeve
30	Frame
31	Screw, 1/4-28 x 1/2 (2)
32	Rail, Front
35	Clip, Wire (2)
36	Exchanger, Heat
42	Clip, Dampener
43	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
45	Clamp
46	Evaporator
47	Condenser Assembly
50	Bumper, Rubber
52	Drier Clamp
53	WP488729 Whirlpool Refrigerator Door Screw
54	Precooler Assembly
67	Pan, Drip
71	Heater, Defrost
72	WP978025 Whirlpool Refrigerator Valve
72	VALVE, ACCESS (5/8“)
72	978026 Whirlpool Refrigerator Primary Valve
72	Clip, Heater (Repair)
72	978027 Whirlpool Refrigerator Primary Valve
72	VALVE, ACCESS (1/2“)
72	978030 Whirlpool Refrigerator Valve
72	Clip, Heater
