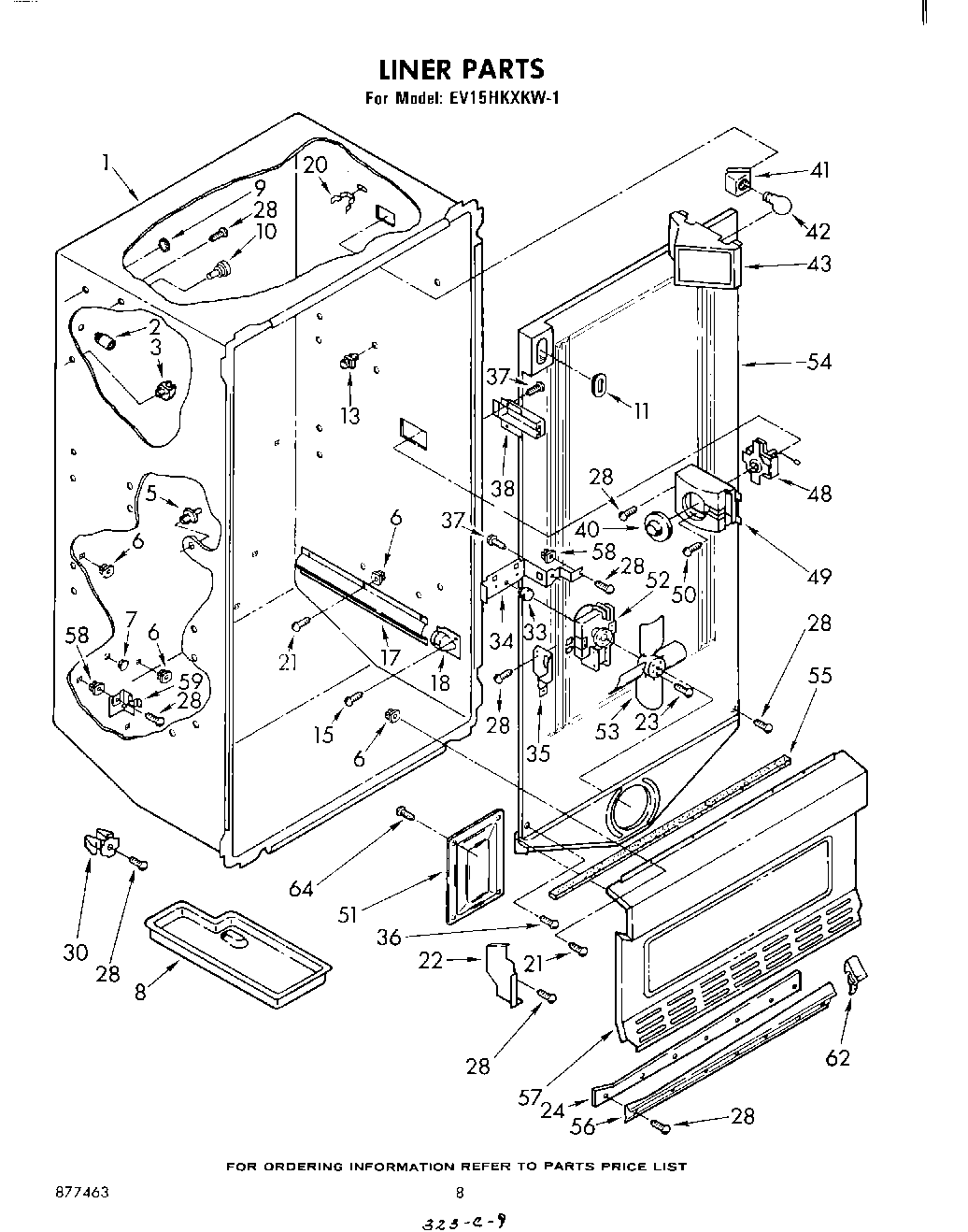

EV15HKXKW1 05 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Spacer (9)
3	Shelf Stud Saddle (R.S.)
3	Shelf Stud, Saddle
5	Shelf, Stud (2)
6	Grommet
7	Hole, Plug
8	Tray, Evaporator
9	Hole, Plug
10	Receptacle Cap
11	Hole Plug, Evaporator
13	Stud, Hook (2)
17	Cover, Tube
18	Cover, Tub Entry
20	Speed Clip, Light Lens (3)
21	WP488729 Whirlpool Refrigerator Door Screw
22	Baffle, Evaporator (2)
23	WP487887 Whirlpool Refrigerator Screw
24	Gasket, Drain Trough
28	W11624204 Whirlpool Screw
30	Expansion Clip
33	Grommet (3)
34	Bracket, Fan Mounting (Single)
35	Fan, Bracket Double
36	Screw, 8 x 1-1/8Z
37	WP489128 Whirlpool Refrigerator Screw
38	Cover, Insulation
40	Knob, Thermostat
41	4387478 Whirlpool Refrigerator Light Socket
42	RANGE ONLY 40W 120V APPL BULB
43	Shield, Light (Freezer Compartment)
48	4389248 Whirlpool Refrigerator Thermostat
49	Escutcheon, Thermostat
50	WP965173 Whirlpool Dishwasher Screw
51	Cover, Fan Motor
52	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
53	Blade, Fan
54	Cover, Fan Orifice
55	Gasket
56	Trough, Drain
57	Cover, Evaporator
58	Screw Grommet
59	Support, Evaporator
62	Extension, Drain Trough
