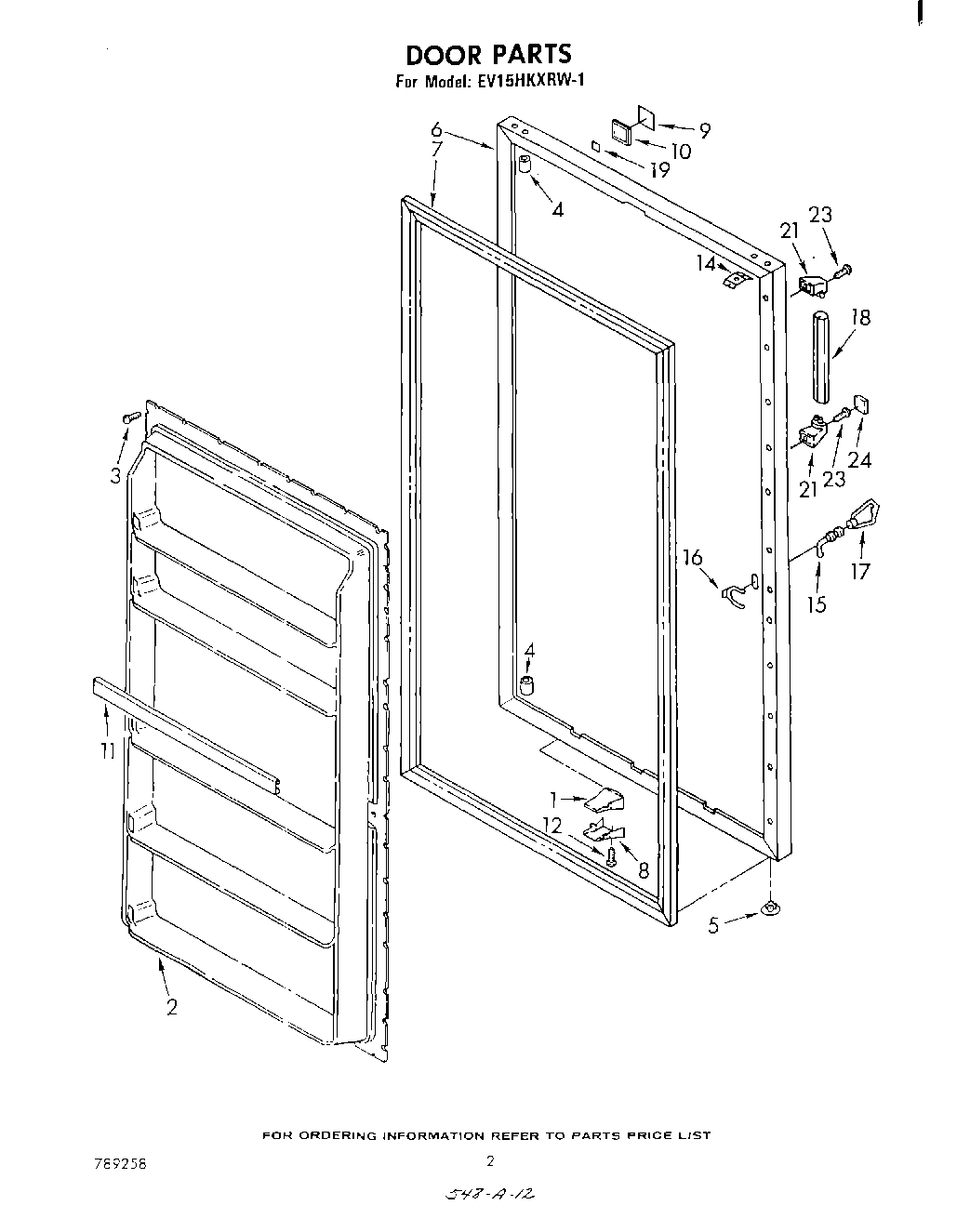

EV15HKXRW1 02 – DOOR , LIT/OPTIONAL

Written by

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	285006 Whirlpool Spray
	Leveler (Thinner) (2oz.)
	WPL 511881
	350942 Whirlpool Spray Paint
1	Transmitter, Light
2	Panel, Interior
3	SCREW
3	WP489069 Whirlpool Compactor Screw
5	Hole Plug (2)
6	Door, Exterior (White)
6	Door, Exterior (Almond)
7	2188436A Whirlpool Refrigerator Door Gasket
8	Cover, Light Transmitter
9	Escut
10	Nameplate
11	Trim, Door (1)
11	Trim, Door Shelf (Three Used)
12	WP965173 Whirlpool Dishwasher Screw
14	WP939101 Whirlpool Refrigerator Plate
15	Lock
16	Clip, Spring
17	WP842177 Whirlpool Refrigerator Door Key
18	Handle, Center
19	Tape Strip
21	End, Door Handle
23	Screw, 8-15 x 1-5/8
24	72032 Whirlpool Touch Up Paint Black
24	212643 Whirlpool Refrigerator Permagum Sealer
24	Almond (Uncut)
24	WP72107 Whirlpool Touchup
24	WPL 876029
24	799344 Whirlpool Refrigerator Paint
24	72017 Whirlpool Appliance Touch-Up Paint White
24	Use & Care Guide
24	energy guide
24	tech sheet
24	606755 Whirlpool Refrigerator Bag
24	833938 Whirlpool Refrigerator Terminal
24	876370 Whirlpool Refrigerator Insulation
24	End Cover, Door Handle (2)
24	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
24	Transformer (115-230 Volt)
24	WPL 799833
24	WPL 799832
24	Enamel, Black (1 Qt. Uncut)
24	WP505587 Whirlpool Refrigerator Sealer
24	Book, How To Freeze
24	WP503695 Whirlpool Refrigerator Sealer
24	list, parts
