EV15HKXRW1 03 – CABINET

EV15HKXRW1 03 – CABINET

Written by

in

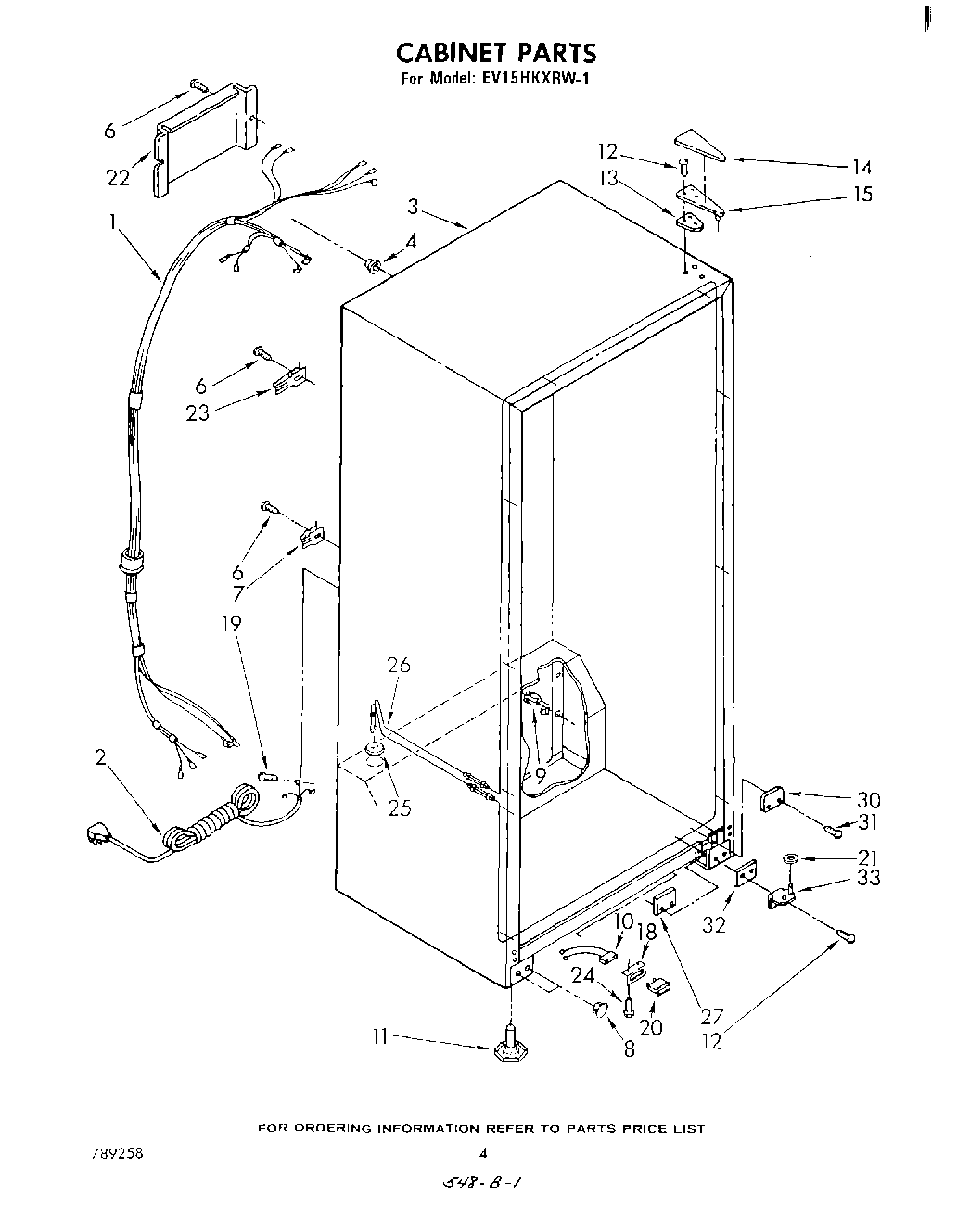

EV15HKXRW1 03 – CABINET

Products

PositionProduct
1Cabinet Wiring Assembly
2Cord, Service
3Cabinet (Not A Serviceable Part)
4Grommet, Wiring
6W11624204 Whirlpool Screw
7Clamp
8WPL 941416
8hole plug
8Hole, Plug (2) (Almond)
9Bushing, Strain Relief
10Wire Assembly, Signal Light
11W11117769 Whirlpool Refrigerator Leveler
11repair
12Screw (Repair)
12WP999367 Whirlpool Refrigerator Screw
13WPL 836151
13Shim, Hinge
141119787 Whirlpool Refrigerator Hinge Cover
15Hinge & Shim (Top)
18Bracket, Signal Light
19Screw, 8-32 x 3/8
20WP487802 Whirlpool Refrigerator Washer
20WP487576 Whirlpool Washer
20Light, Signal
22Cover, Wiring
23Clamp
24WP965173 Whirlpool Dishwasher Screw
25Grommet, Wiring
26Heater, Stile
27Tap Plate, Bottom
30Tube, Rail Cover (Almond)
30Tube, Rail Cover (White)
31Screw
32Shim, Bottom Hinge
33Hinge, Bottom R.H.
