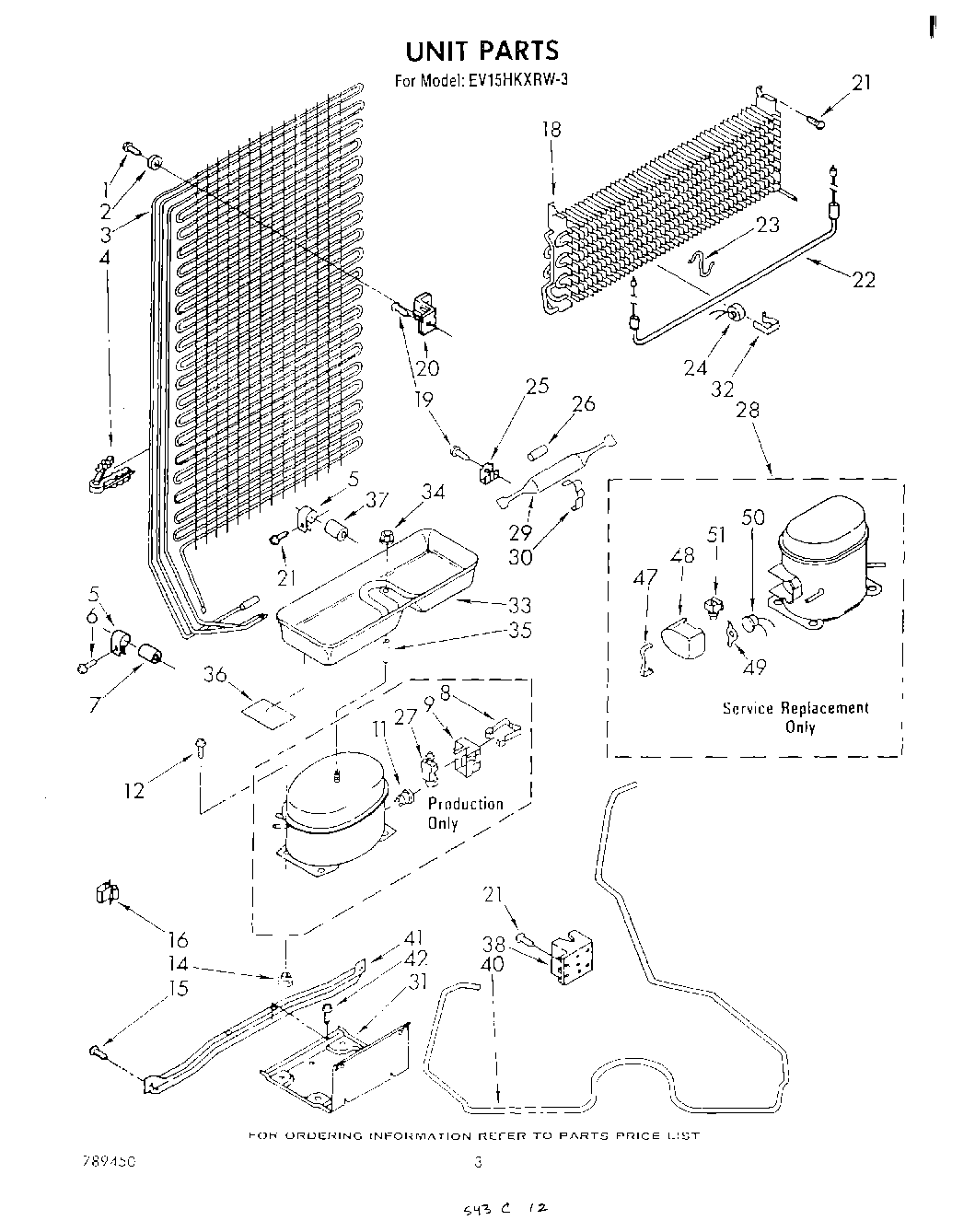

| 1 | Screw, 8 x 7/8 |
| 2 | Bumper, Rubber |
| 3 | Condenser & Precooler Assembly |
| 4 | Clip, Tube (2) |
| 5 | Clamp Tube |
| 6 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 7 | Dampener |
| 8 | Strap |
| 9 | Cover, Terminal |
| 11 | Overload |
| 14 | 876811 Whirlpool Grommet |
| 15 | 489340 Whirlpool Refrigerator Screw |
| 16 | W10812038 Whirlpool Refrigerator Clip |
| 18 | Evaporator |
| 19 | WP489069 Whirlpool Compactor Screw |
| 20 | Condenser Bracket (Top) |
| 21 | W11624204 Whirlpool Screw |
| 22 | Heater, Defrost |
| 23 | Support, Heater |
| 24 | WP4387499 Whirlpool Refrigerator Bimetallic Defrost |
| 25 | Clip, Condenser Mounting (2) |
| 26 | Restrictor Sleeve |
| 27 | Relay |
| 28 | W10439652 Whirlpool Refrigerator Compressor |
| 29 | W10843121 Whirlpool Refrigerator Tube |
| 30 | Drier Clamp |
| 31 | Unit Mounting Plate |
| 32 | Clamp |
| 33 | Tray, Evaporator |
| 34 | 285002 Whirlpool Nut |
| 35 | Spacer |
| 36 | Pad, Sound |
| 37 | Dampener |
| 38 | Junction Box |
| 40 | Heat Exchanger |
| 41 | Unit Mounting Rail |
| 42 | WP965173 Whirlpool Dishwasher Screw |
| 42 | repair |
| 47 | Cover, Spring |
| 48 | Cover, Terminal |
| 49 | Spring, Overload |
| 50 | Overload |
| 51 | WP978025 Whirlpool Refrigerator Valve |
| 51 | 978030 Whirlpool Refrigerator Valve |
| 51 | 876764 Whirlpool Refrigerator Primary Valve |
| 51 | VALVE, ACCESS (5/8``) |
| 51 | Relay |
| 51 | 978027 Whirlpool Refrigerator Primary Valve |
| 51 | 978026 Whirlpool Refrigerator Primary Valve |
| 51 | VALVE, ACCESS (1/2``) |
