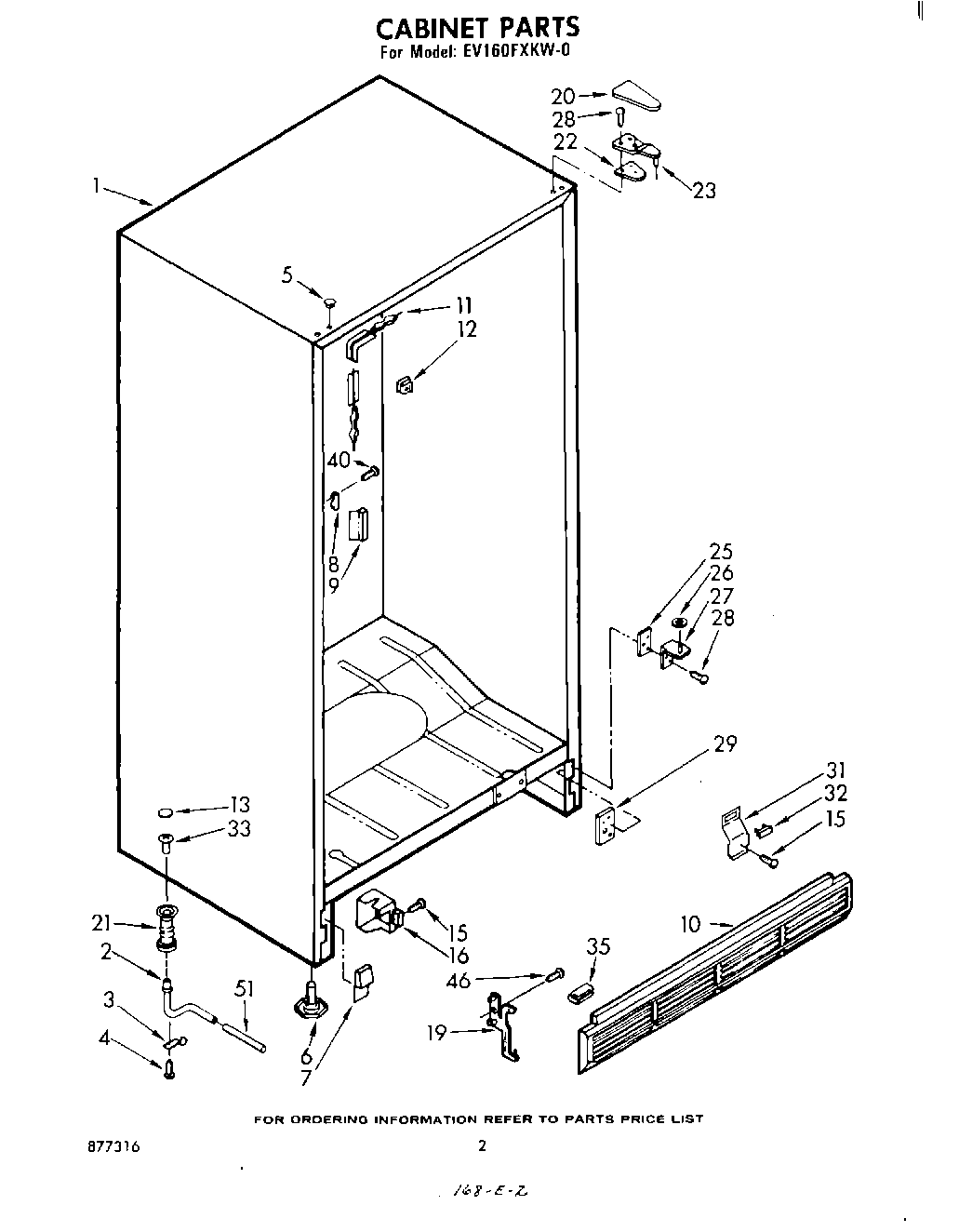

EV160FXKW0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Extension, Fitting
3	Cup, Drain Extension
4	Screw, 8-32 x 1/2
5	Hole Plug (New Avocado)
5	Hole Plug (Coffee)
5	Hole Plug (2) (Golden Harvest)
5	Hole Plug (2) (White)
5	Hole Plug (2) (Almond)
6	W11117769 Whirlpool Refrigerator Leveler
7	WPL 989929
7	Corner, Filler (
7	WPL 989930
7	WPL 989931
7	WPL 989928
8	Bracket, Strike
9	Cover, Strike
10	Grille, Exterior (White)
10	Grille, Exterior (New Gold)
10	Grille, Exterior (New Avocado)
10	Grille, Exterior (Almond)
10	Grille, Exterior (Coffee)
11	Heater, Stile
12	Clip (Repair)
13	Drain Cover
15	WP488729 Whirlpool Refrigerator Door Screw
16	WPL 549947
19	WPL 844614
20	Hinge, Cover (Coffee)
20	Hinge Cover (Golden Harvest)
20	Hinge Cover (New Avocado)
20	1119787 Whirlpool Refrigerator Hinge Cover
21	Fitting, Drain
22	WPL 836151
23	Hinge & Shim (Top)
25	Shim, Bottom Hinge
26	WP487802 Whirlpool Refrigerator Washer
27	Hinge (Bottom)
28	Screw (Repair)
28	WP999367 Whirlpool Refrigerator Screw
29	Tap Plate
31	Bracket, Pilot Light
32	Light, Pilot
33	Drain, Ferrule Cap
35	Bumper, Grille
40	Screw, 8-32 x 3/8
46	W11624204 Whirlpool Screw
51	Drain Hose
