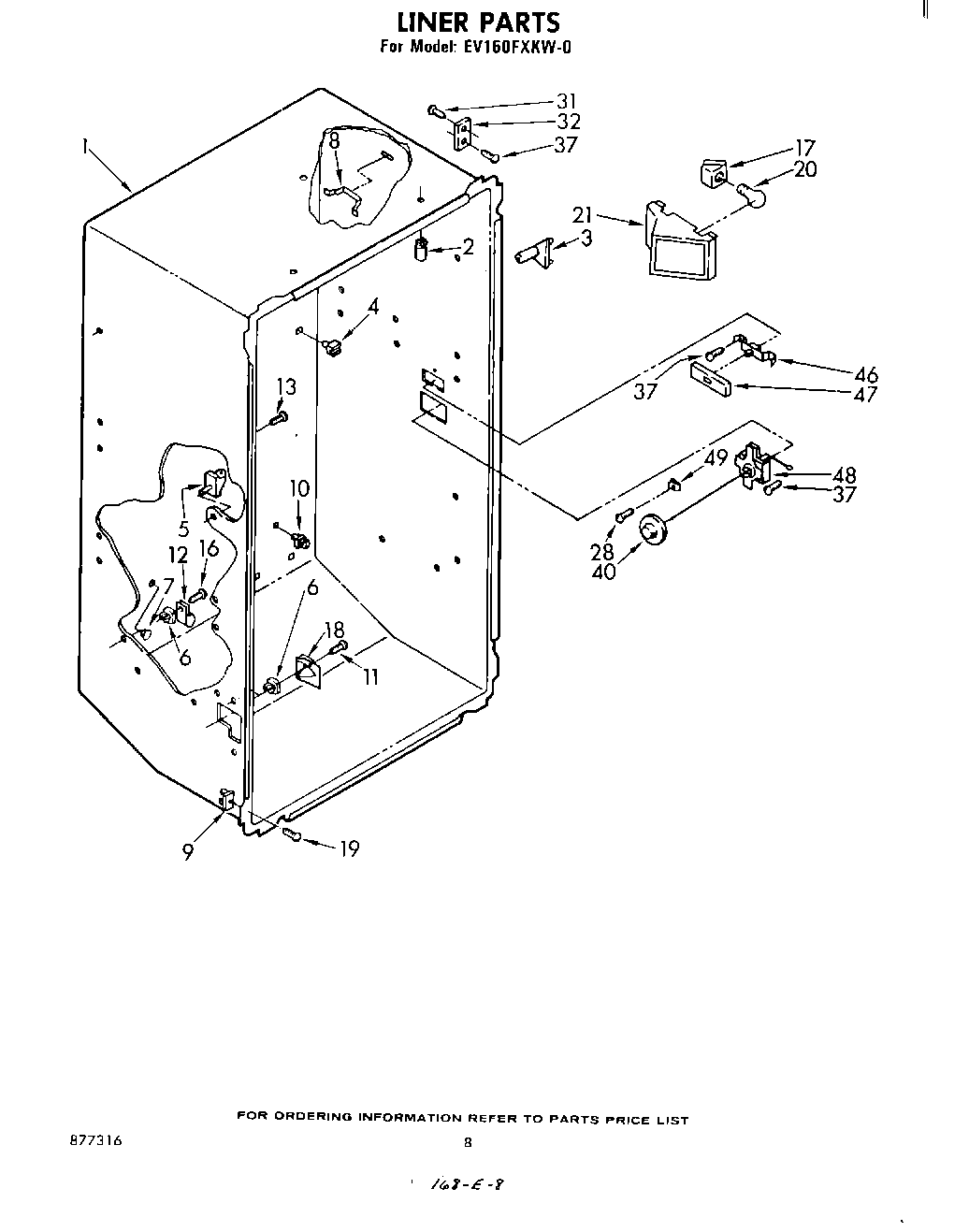

| 1 | Liner (Not A Serviceable Part) |
| 2 | Spacer, Evaporator (3) |
| 3 | Spacer, Liner (2) |
| 4 | Stud, Shelf (6) |
| 5 | Stud, Shelf (6) |
| 6 | Grommet |
| 7 | Hole, Plug |
| 8 | Speed Clip, Light Lens (3) |
| 9 | Spacer, Liner (8) |
| 10 | Stud, Hook (2) |
| 12 | Clamp, Tube |
| 13 | Screw, 8 x 3/8 (2) |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | 4387478 Whirlpool Refrigerator Light Socket |
| 18 | Cover, Tub Entry |
| 19 | Screw (Repair) |
| 19 | WP488163 Whirlpool Refrigerator Screw |
| 20 | RANGE ONLY 40W 120V APPL BULB |
| 21 | Shield, Light (Freezer Compartment) |
| 28 | W11624204 Whirlpool Screw |
| 31 | Screw, 8-32 x 1-1/2 |
| 32 | Strap, Ground |
| 37 | WP489128 Whirlpool Refrigerator Screw |
| 40 | Knob |
| 46 | Bracket & Switch Assembly |
| 47 | Escutcheon, Power Saver |
| 48 | 4389249 Whirlpool Refrigerator Thermostat |
| 49 | 488660 Whirlpool Refrigerator Nut |
