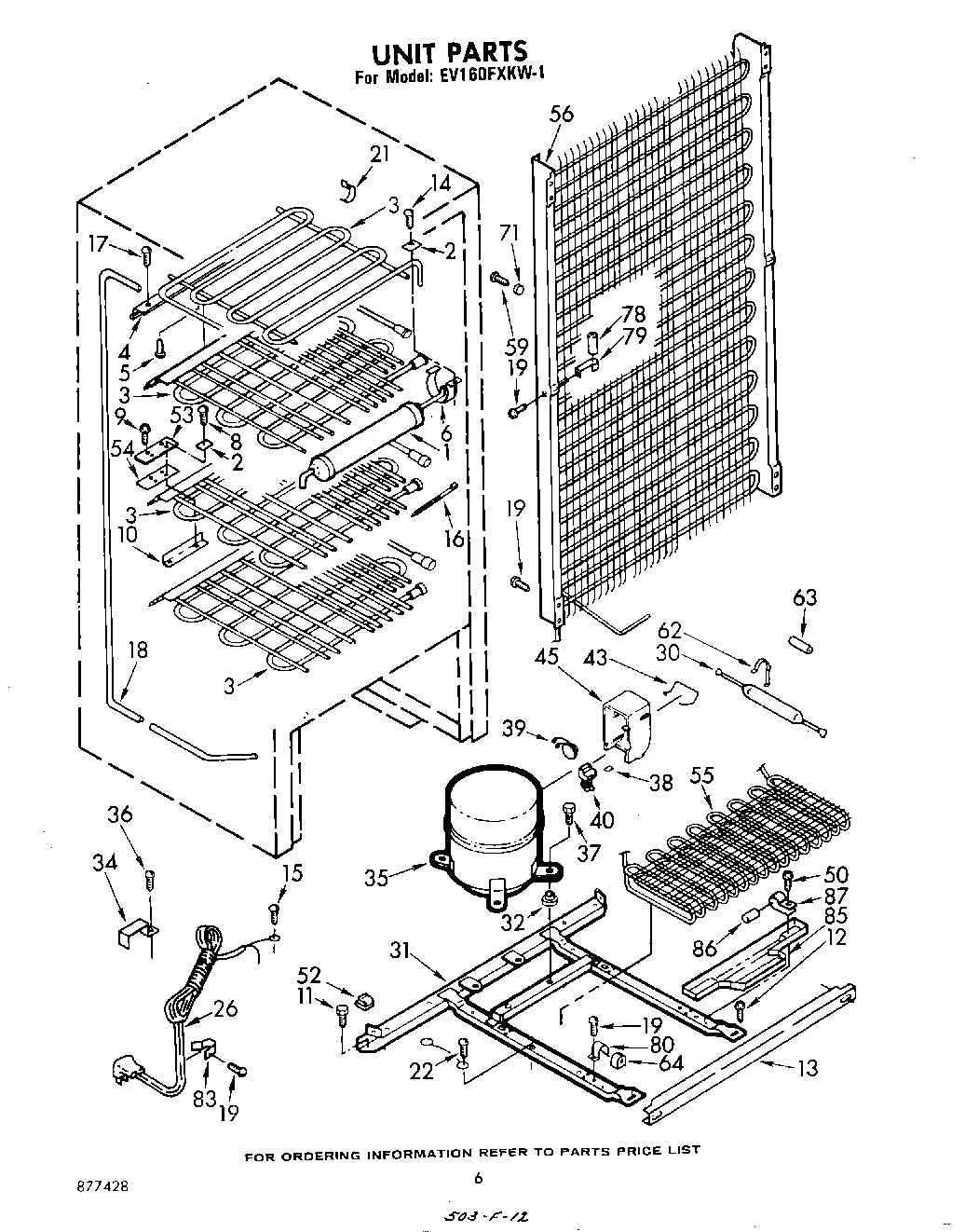

| 1 | Header & Tube Assembly |
| 2 | PLATE |
| 3 | Shelf, Bottom |
| 3 | Shelf, Top |
| 3 | Shelf, 2nd |
| 3 | Shelf, 3rd |
| 4 | Trim, Shelf Front |
| 5 | Screw, 8 x 1-3/8 (3) |
| 6 | Clamp, Header |
| 8 | Screw, 8-32 x 7/16 |
| 9 | Screw, 8-32 x 1/2 |
| 10 | Clip |
| 11 | 489340 Whirlpool Refrigerator Screw |
| 12 | Screw, 1/4-28 x 1/2 (2) |
| 13 | Unit Mounting, Rail |
| 14 | WP487353 Whirlpool Refrigerator Screw |
| 15 | Screw, 8-32 x 3/8 |
| 16 | Strap |
| 17 | WP308685 Whirlpool Microwave Screw |
| 18 | Exchanger, Heat |
| 19 | W11624204 Whirlpool Screw |
| 21 | Clip, Tube |
| 22 | 303776 Whirlpool Dishwasher Screw |
| 26 | Cord, Service |
| 30 | W10843121 Whirlpool Refrigerator Tube |
| 31 | Frame |
| 32 | Grommet (4) |
| 34 | Clip, Cord Plug |
| 35 | Compressor |
| 36 | Screw |
| 37 | Screw, 1/4-28 x 1`` (4) |
| 38 | Bumper |
| 39 | Overload |
| 40 | Relay |
| 43 | Spring |
| 45 | Case, Relay |
| 50 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 52 | Clip, Wire (2) |
| 53 | Plate, Thermostat |
| 54 | Shim, Thermostat Plate |
| 55 | Precooler |
| 56 | Condenser |
| 59 | WP488729 Whirlpool Refrigerator Door Screw |
| 62 | Drier Clamp |
| 63 | Restrictor Sleeve |
| 64 | Grommet (4) |
| 71 | Bumper, Rubber |
| 78 | Dampener |
| 79 | Clip, Dampener |
| 80 | Clamp, Tube |
| 83 | 549193 Whirlpool Refrigerator Power Clamp |
| 85 | Pan, Drip |
| 86 | Dampener (2) |
| 87 | 978026 Whirlpool Refrigerator Primary Valve |
| 87 | 978027 Whirlpool Refrigerator Primary Valve |
| 87 | 978030 Whirlpool Refrigerator Valve |
| 87 | WP978025 Whirlpool Refrigerator Valve |
| 87 | VALVE, ACCESS (1/2``) |
| 87 | VALVE, ACCESS (5/8``) |
| 87 | Clamp Tube |
