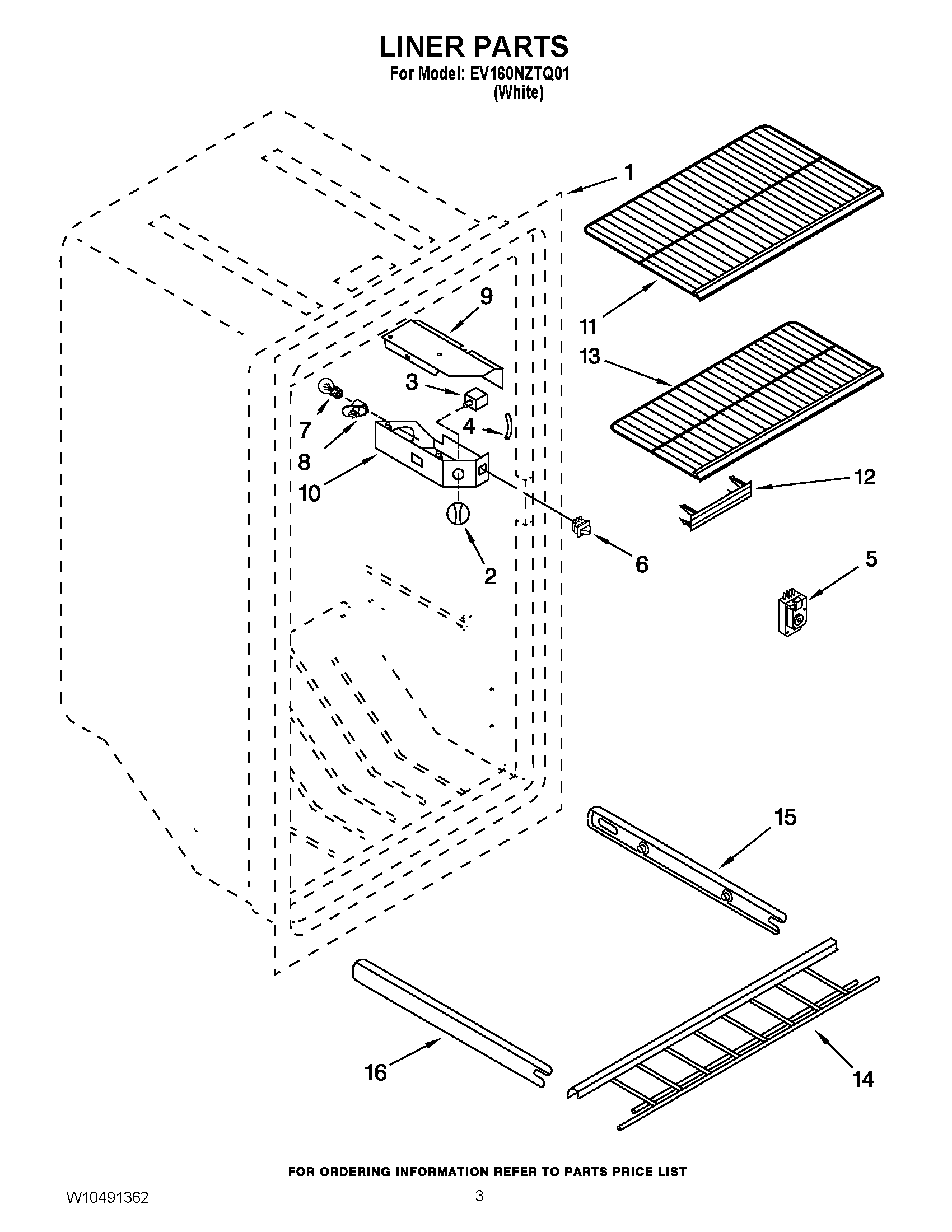

EV160NZTQ01 02 – LINER PARTS

Written by

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	KNOB, CONTROL
3	THERMOSTAT
4	TUBING, THERMOSTAT BARRIER
5	TIMER, DEFROST
6	SWITCH, LIGHT
7	BULB, LIGHT
8	4387478 Whirlpool Refrigerator Light Socket
9	SHIELD, LIGHT
10	BOX, CONTROL
11	SHELF, UPPER WIRE
12	VENT PLUG
13	SHELF, LOWER WIRE
14	GATE
15	SUPPORT, RIGHT HAND
16	SUPPORT, LEFT HAND
