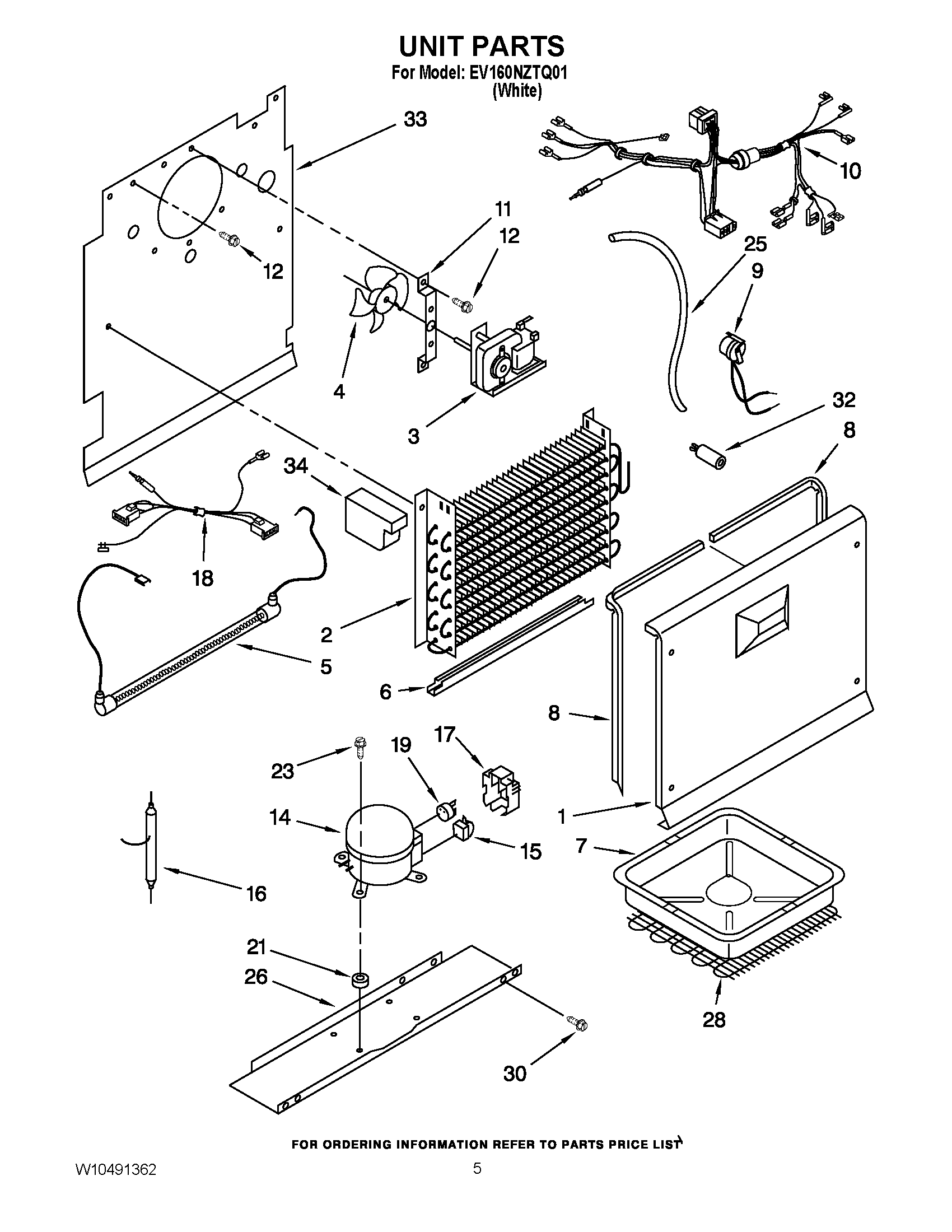

EV160NZTQ01 03 – UNIT PARTSadmin2025-04-26T11:10:40+00:00EV160NZTQ01 03 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | CABINET (NOT A SERVICEABLE PART) |
| 1 | COVER, EVAPORATOR |
| 2 | EVAPORATOR |
| 3 | MOTOR, FAN |
| 4 | BLADE-FAN |
| 5 | HEATER, DEFROST |
| 6 | SHIELD, HEATER |
| 7 | PAN, DRAIN |
| 8 | GASKET, COVER EVAPORATOR (LEFT SIDE) |
| 9 | BI-METAL DEFROST |
| 10 | HARNESS, FF, LT |
| 11 | BRACKET, MOTOR |
| 12 | SCREW |
| 14 | COMPRESSOR (INCLUDES ITEMS 4, 6, 7, & 15) |
| 15 | WPW10466655 Whirlpool Refrigerator Start Relay |
| 16 | W10843121 Whirlpool Refrigerator Tube |
| 17 | WP61002138 Whirlpool Refrigerator Terminal Cover |
| 18 | HARNESS, FAN |
| 19 | OVERLOAD |
| 21 | WP2163786 Whirlpool Refrigerator Grommet |
| 23 | BOLT, COMPRESSOR |
| 25 | EXCHANGER, HEAT |
| 26 | WPW10470130 Whirlpool Compressor Pan |
| 28 | CONDENSER |
| 30 | SCREW |
| 32 | GROMMET |
| 33 | PLATE, EVAPORATOR MOUNT |
| 34 | BLOCK, FOAM |
