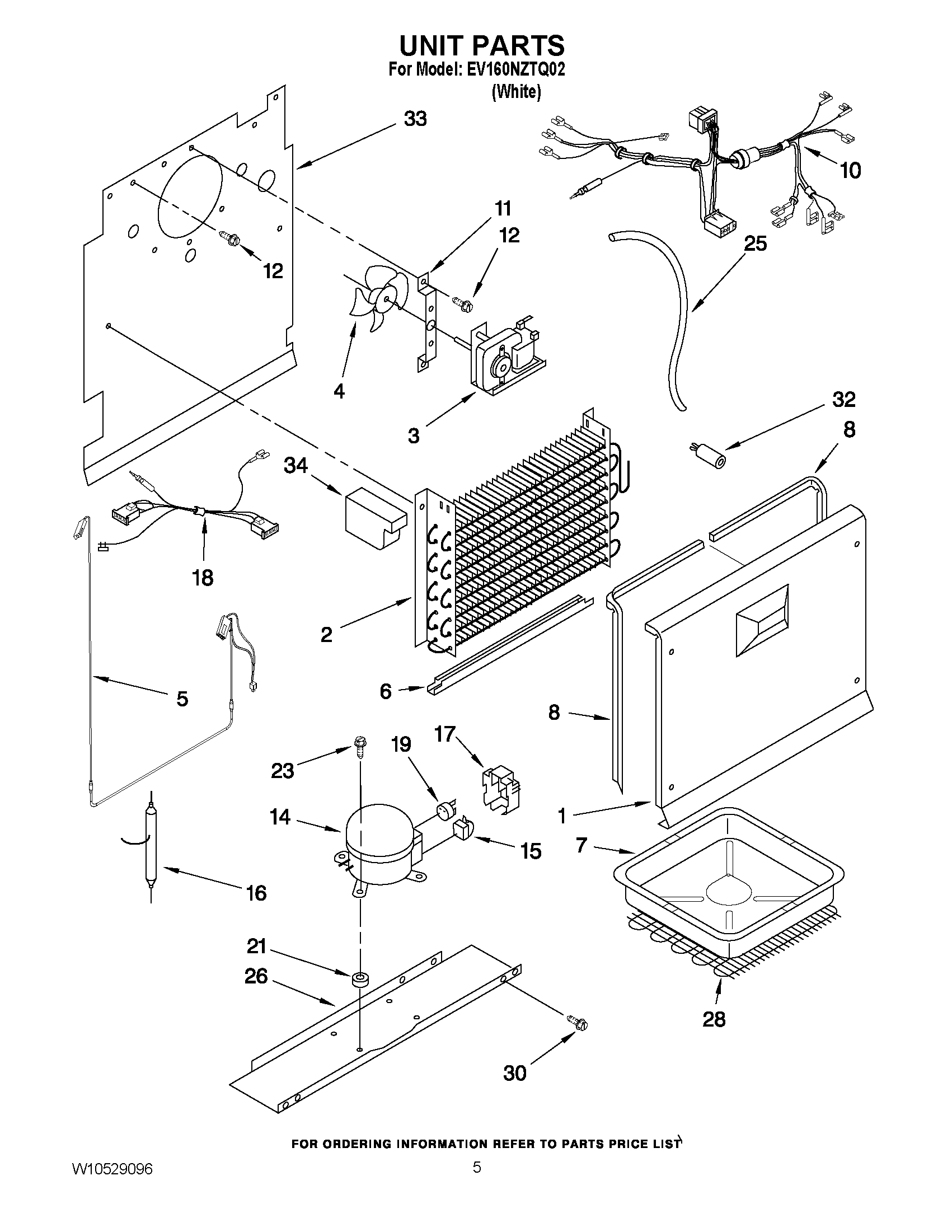

EV160NZTQ02 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1COVER, EVAPORATOR
2EVAPORATOR
3WPW10236142 Whirlpool Evaporator Fan Motor
4WP2169142 Whirlpool Fan Blade
5WPW10486820 Whirlpool Refrigerator Heater
6SHIELD, HEATER
7PAN, DRAIN
8GASKET, COVER EVAPORATOR (LEFT SIDE)
10HARNESS, FF, LT
11CLIP, EVAPORATOR MOTOR
12SCREW
14COMPRESSOR (INCLUDES ITEMS 4, 6, 7, & 15)
15WPW10466655 Whirlpool Refrigerator Start Relay
16W10843121 Whirlpool Refrigerator Tube
17WP61002138 Whirlpool Refrigerator Terminal Cover
18W10507269 Whirlpool Refrigerator Harness
19OVERLOAD
21WP2163786 Whirlpool Refrigerator Grommet
23BOLT, COMPRESSOR
25WPW10474988 Whirlpool Refrigerator Exchanger
26WPW10470130 Whirlpool Compressor Pan
28CONDENSER
30SCREW
32GROMMET
33W10452115 Whirlpool Refrigerator Heat Shield
34W10452121 Whirlpool Evaporator Block
