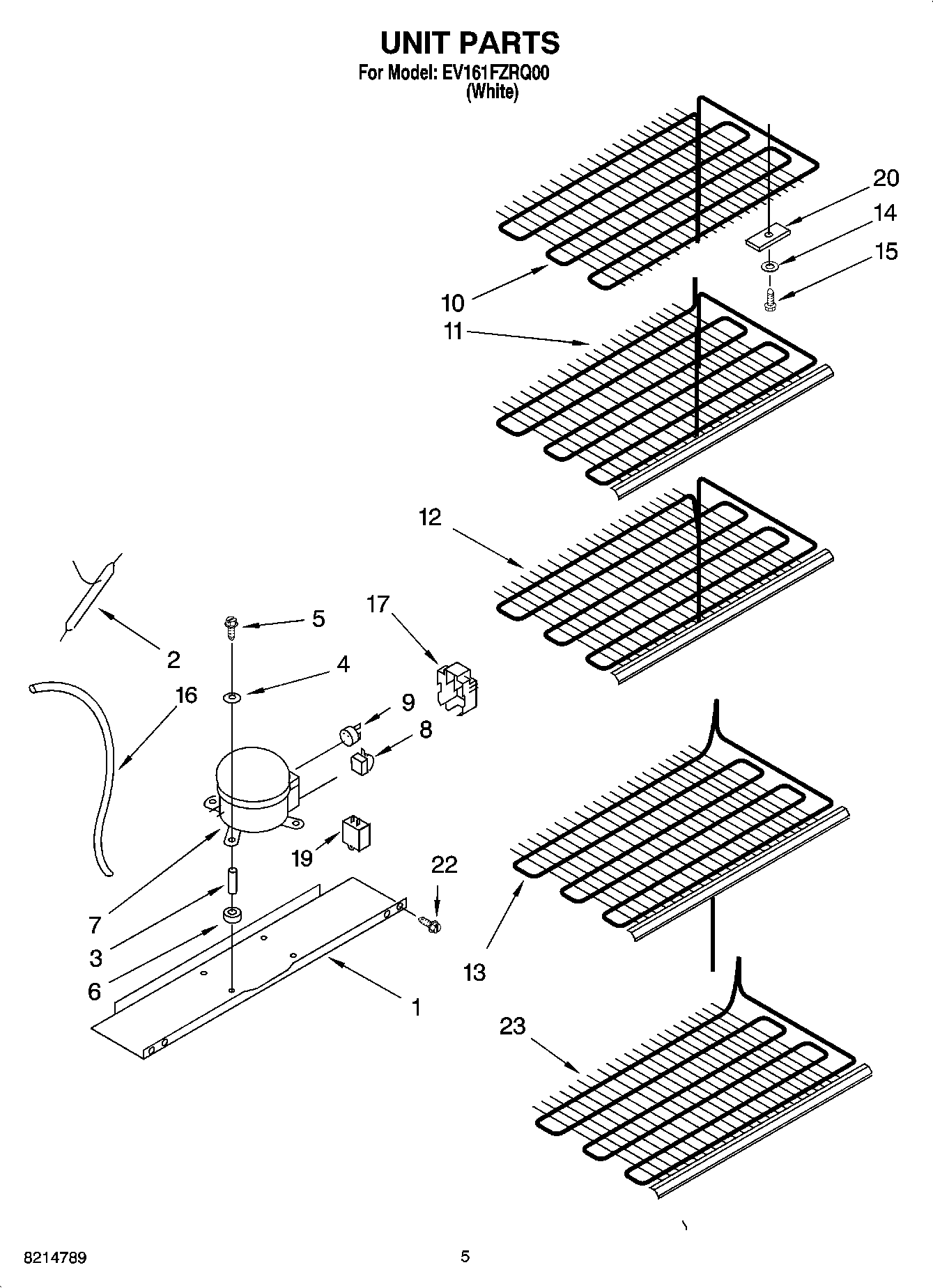

EV161FZRQ00 03 – UNIT PARTS

Products

Position	Product
1	Compressor Pan
2	W10843121 Whirlpool Refrigerator Tube
3	4356846 Whirlpool Refrigerator Sleeve
4	Washer
5	8210220 Whirlpool Bolt
6	Grommet, Mounting Compressor
7	W10309989 Whirlpool Refrigerator Compressor
8	Relay
9	WP2214067 Whirlpool Refrigerator Overload Relay
10	Evaporator, Top
11	Evaporator Shelf
12	Evaporator Shelf
13	4-82197-002 Whirlpool Refrigerator Evaporator
14	W10903204 Whirlpool Refrigerator Washer
15	WP3-24004-109 Whirlpool Refrigerator Screw
16	Heat Exchanger
17	4356777 Whirlpool Term Cover
19	Capacitor
20	1-80308-101 Whirlpool Refrigerator Bulb Clamp
22	WP3-24838-048 Whirlpool Refrigerator Screw
23	4-82417-001 Whirlpool Refrigerator Evaporator
23	REFRIGERANT CHARGE 6.9 oz. (R-134A)
