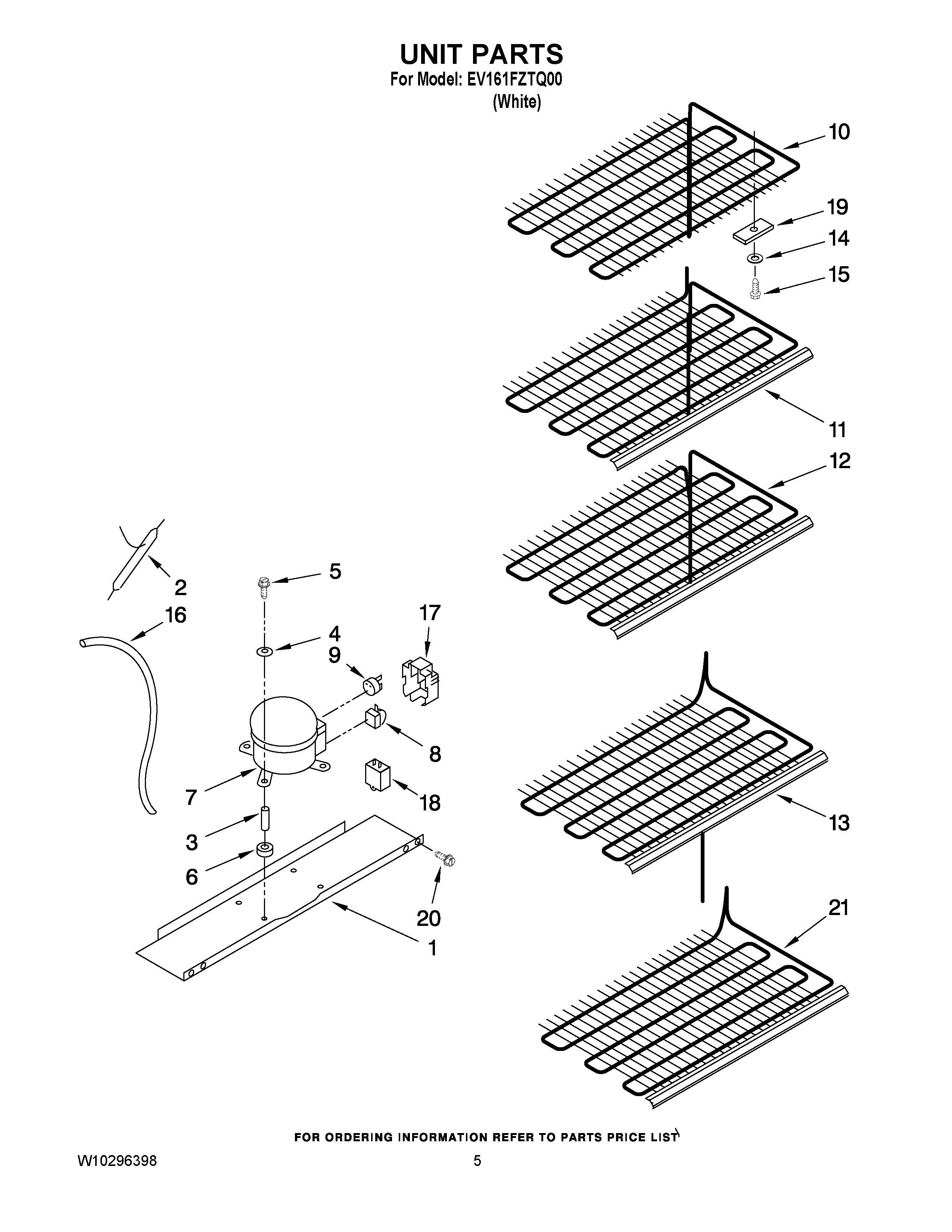

EV161FZTQ00 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1PAN, COMPRESSOR MOUNTING
2W10843121 Whirlpool Refrigerator Tube
34356846 Whirlpool Refrigerator Sleeve
4Washer
58210220 Whirlpool Bolt
6Grommet, Mounting Compressor
7W10309989 Whirlpool Refrigerator Compressor
8Relay
9WP2214067 Whirlpool Refrigerator Overload Relay
10Evaporator, Top
11Evaporator Shelf
12Evaporator Shelf
134-82197-002 Whirlpool Refrigerator Evaporator
14W10903204 Whirlpool Refrigerator Washer
15WP3-24004-109 Whirlpool Refrigerator Screw
16Heat Exchanger
174356777 Whirlpool Term Cover
18Capacitor
191-80308-101 Whirlpool Refrigerator Bulb Clamp
20WP3-24838-048 Whirlpool Refrigerator Screw
214-82417-001 Whirlpool Refrigerator Evaporator
