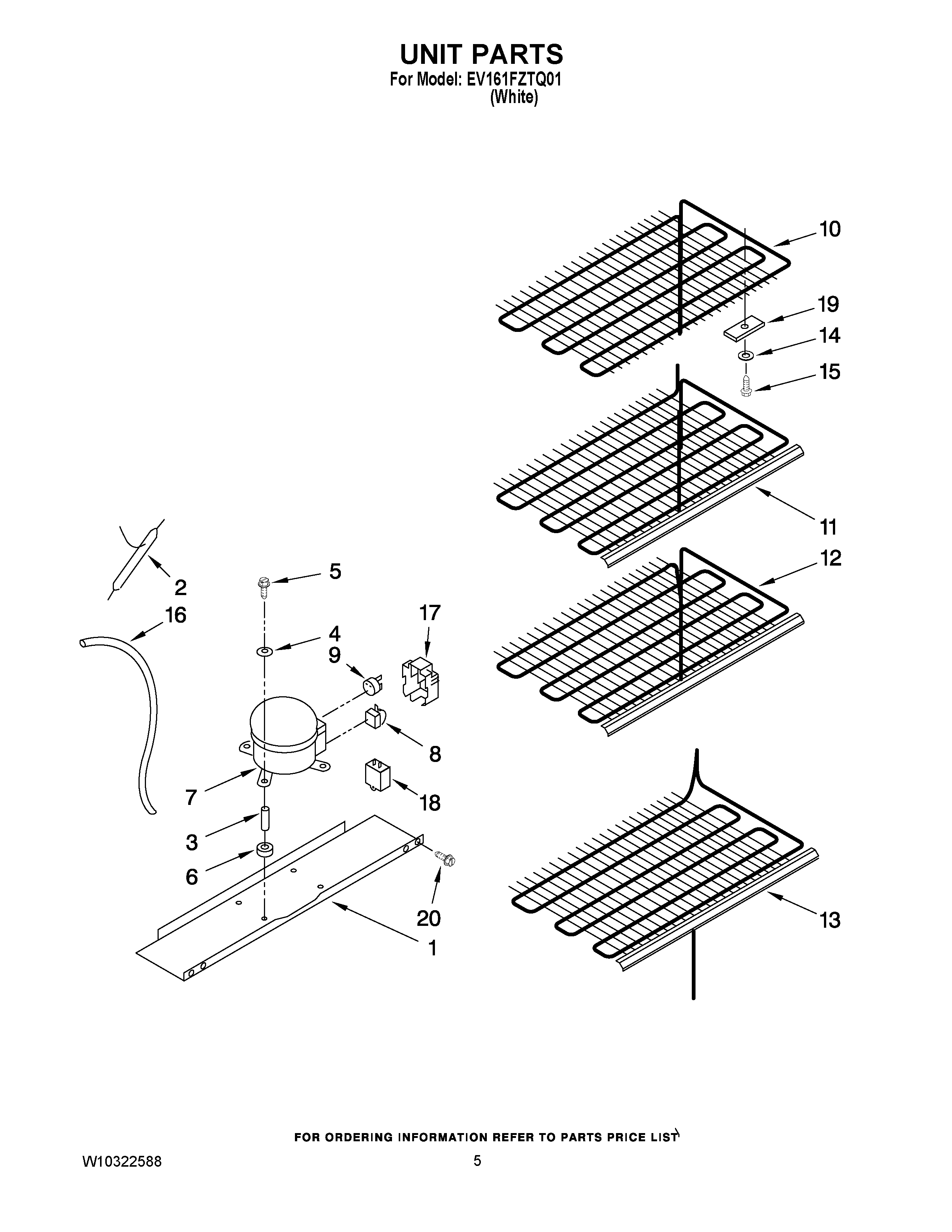

EV161FZTQ01 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1PAN, COMPRESSOR MOUNTING
2W10843121 Whirlpool Refrigerator Tube
34356846 Whirlpool Refrigerator Sleeve
4Washer
58210220 Whirlpool Bolt
6Grommet, Mounting Compressor
7COMPRESSOR (INCLUDES ITEMS 2, 3, 4, 5, 6 & 8)
8WPW10189190 Whirlpool Start Device
9OVERLOAD
10Evaporator, Top
11Evaporator Shelf
12Evaporator Shelf
134-82197-002 Whirlpool Refrigerator Evaporator
14W10903204 Whirlpool Refrigerator Washer
15WP3-24004-109 Whirlpool Refrigerator Screw
16Heat Exchanger
174356777 Whirlpool Term Cover
18Capacitor
191-80308-101 Whirlpool Refrigerator Bulb Clamp
20WP3-24838-048 Whirlpool Refrigerator Screw
