EV161NZRQ04 03 – UNIT PARTS

EV161NZRQ04 03 – UNIT PARTS

Written by

in

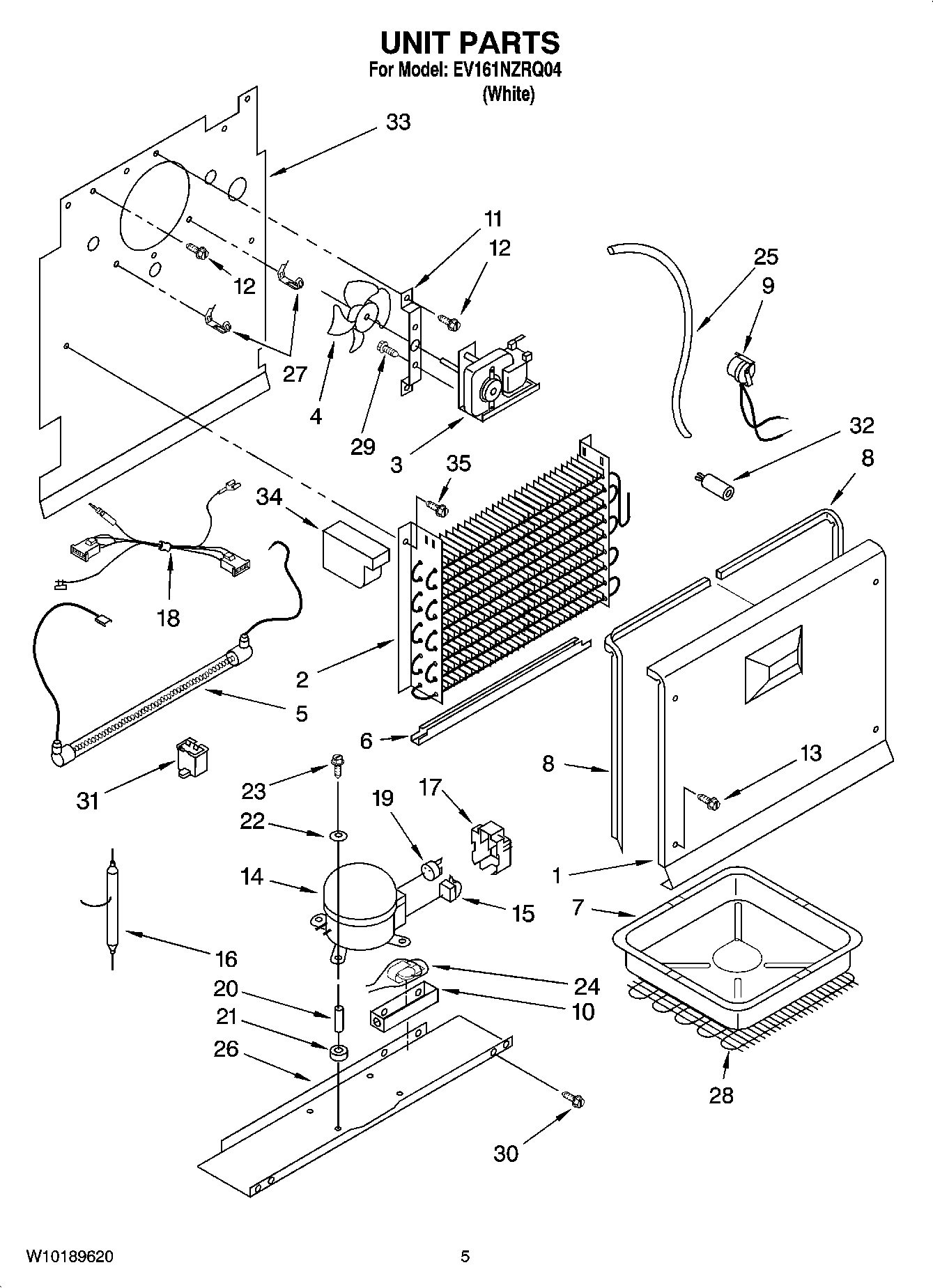

EV161NZRQ04 03 – UNIT PARTS

Products

PositionProduct
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3MOTOR-EVAP
4BLADE-FAN
58201749 Whirlpool Refrigerator Defrost Heater
6Shield, Heater
7WP4390675 Whirlpool Refrigerator Drip Pan
84390664 Whirlpool Refrigerator Gasket
84390663 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10Box, Control
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
14W10309990 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
174356777 Whirlpool Term Cover
184-81785-001 Whirlpool Refrigerator Wire Harness
19WP2149959 Whirlpool Refrigerator Overload
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
238210220 Whirlpool Bolt
24Buzzer, Alarm
25Exchanger, Heat
26Compressor Pan
27Thermostat, Clip
28W10451951 Whirlpool Refrigerator Condenser
29WP3400094 Whirlpool Screw
30WP3-24838-048 Whirlpool Refrigerator Screw
313-35956-013 Whirlpool Refrigerator Capacitor
32Grommet
33Plate, Evaporator Mount
341-80252-101 Whirlpool Refrigerator Evaporator Block
35WP3-24004-109 Whirlpool Refrigerator Screw
35REFRIGERANT CHARGE 6.2 oz. (R-134A)
