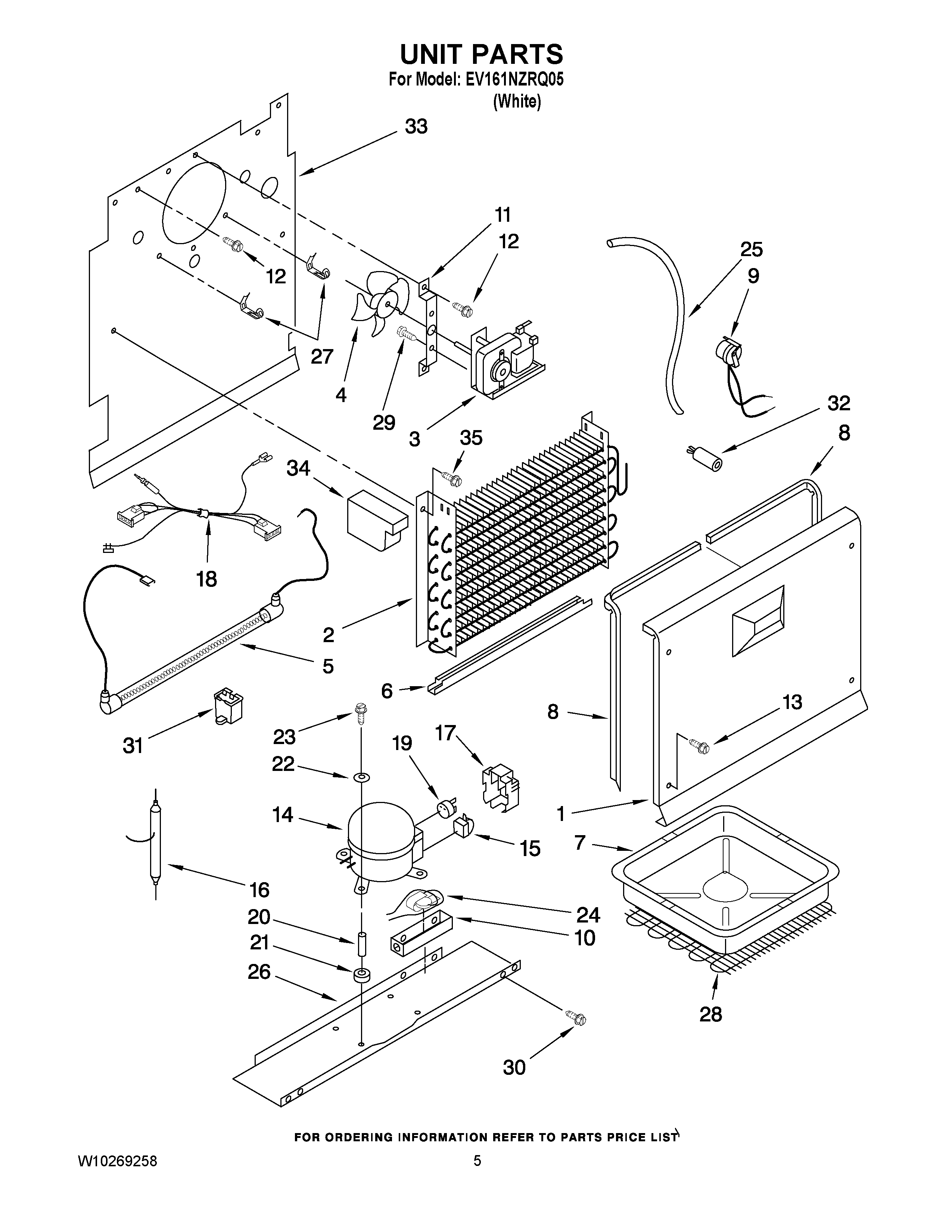

EV161NZRQ05 03 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 6.2 oz. (R-134A)
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	MOTOR-EVAP
4	BLADE-FAN
5	8201749 Whirlpool Refrigerator Defrost Heater
6	Shield, Heater
7	WP4390675 Whirlpool Refrigerator Drip Pan
8	4390664 Whirlpool Refrigerator Gasket
8	4390663 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	Box, Control
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
14	W10309990 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	4356777 Whirlpool Term Cover
18	4-81785-001 Whirlpool Refrigerator Wire Harness
19	WP2149959 Whirlpool Refrigerator Overload
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	3-82728-001 Whirlpool Refrigerator Alarm Freezer
25	Exchanger, Heat
26	Compressor Pan
27	Thermostat, Clip
28	W10451951 Whirlpool Refrigerator Condenser
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	3-35956-013 Whirlpool Refrigerator Capacitor
32	Grommet
33	Plate, Evaporator Mount
34	1-80252-101 Whirlpool Refrigerator Evaporator Block
35	WP3-24004-109 Whirlpool Refrigerator Screw
