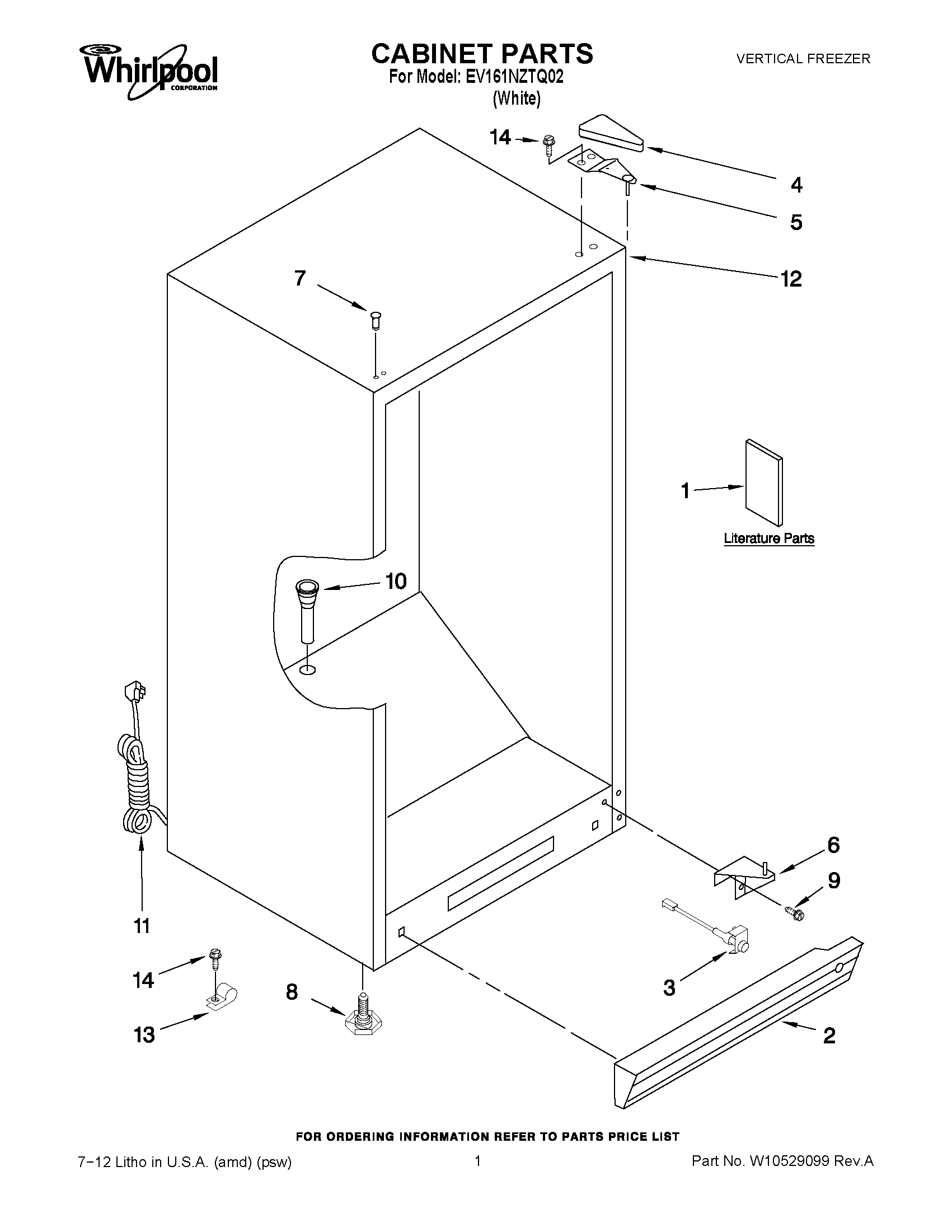

EV161NZTQ02 01 – CABINET PARTS

Written by

Products

Position	Product
1	ENERGY LABEL/TAG
1	OWNERS MANUAL
2	TRIM, TOE KICK (WHITE)
3	ASSEMBLY, POWER WARNING LIGHT BRACKET
4	COVER, HINGE (WHITE)
5	TOP HINGE (WHITE)
6	HINGE, BOTTOM
7	PLUG, HOLE
8	LEG, LEVELER
9	SCREW
10	GROMMET, DRAIN
11	CORD, POWER
12	CABINET (NOT A SERVICEABLE PART)
13	CLAMP, TUBE
14	SCREW
