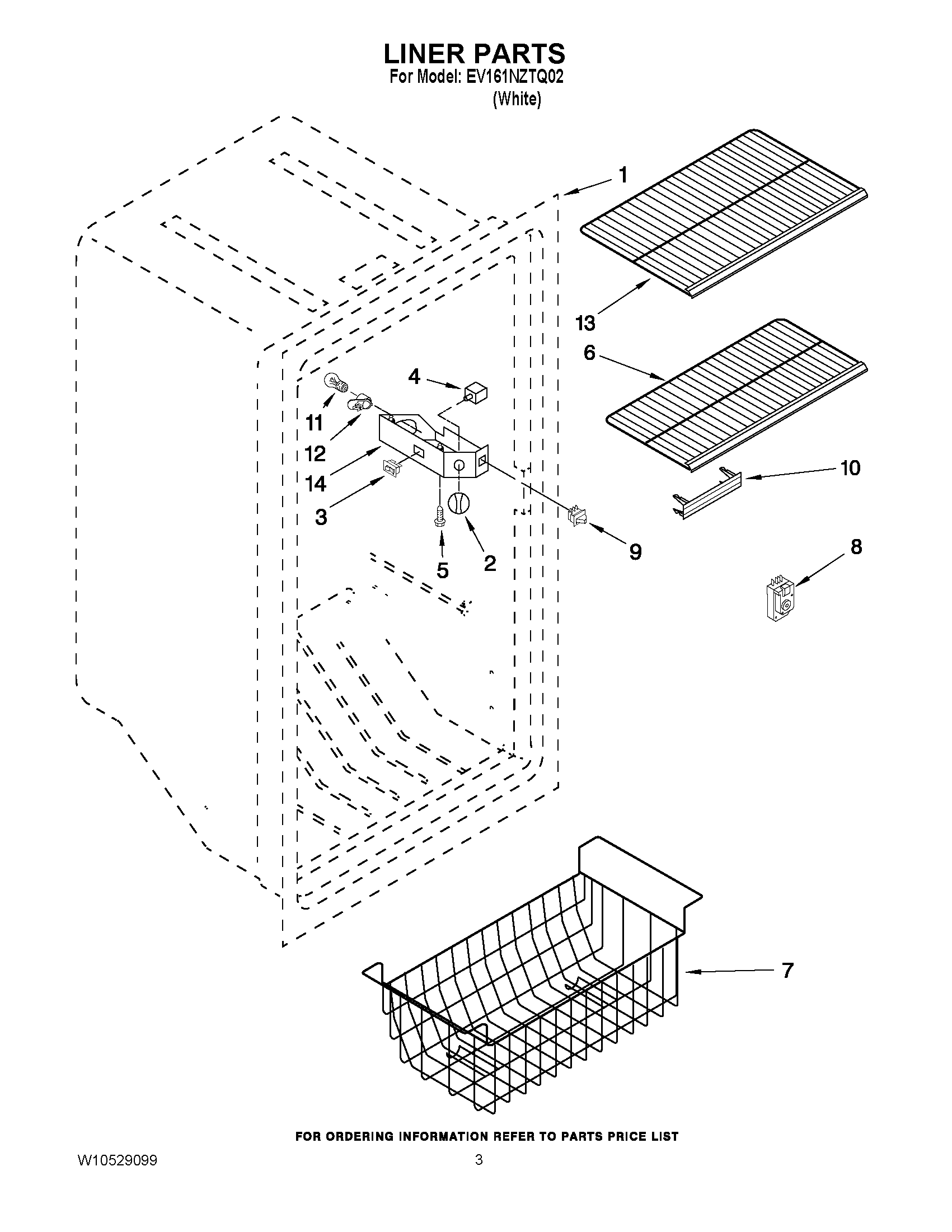

EV161NZTQ02 02 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2KNOB, CONTROL
3SWITCH, ALARM (ILLUMINATED)
4WPW10474749 Whirlpool Refrigerator Thermostat
5SCREW
6SHELF, LOWER WIRE
7BASKET
8TIMER, DEFROST
9SWITCH, LIGHT
10VENT PLUG
11BULB, LIGHT
124387478 Whirlpool Refrigerator Light Socket
13SHELF, UPPER WIRE
14BOX, CONTROL
