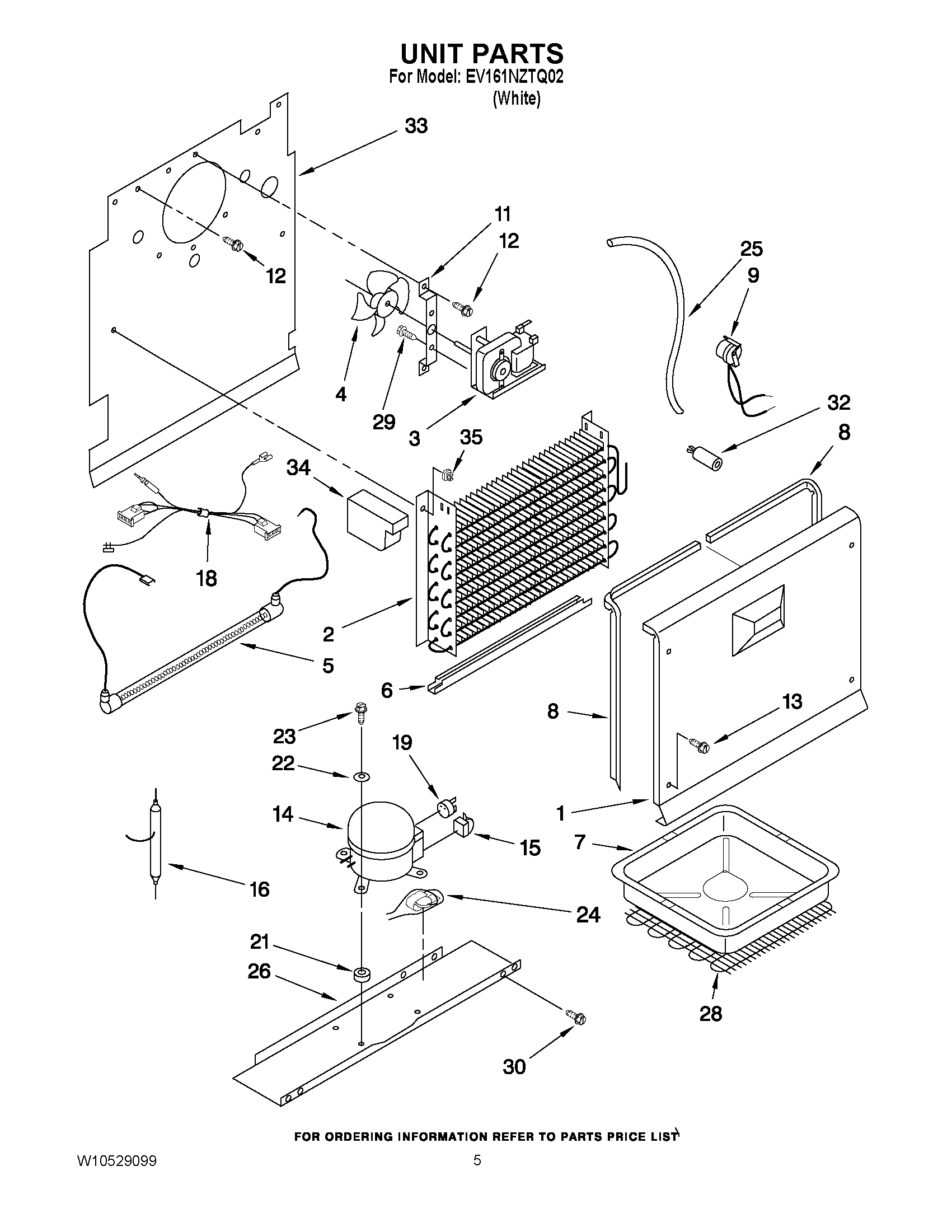

EV161NZTQ02 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1COVER, EVAPORATOR
2EVAPORATOR
3WPW10236142 Whirlpool Evaporator Fan Motor
4WP2169142 Whirlpool Fan Blade
5WPW10486820 Whirlpool Refrigerator Heater
6SHIELD, HEATER
7PAN, DRAIN
8GASKET, COVER EVAPORATOR (LEFT SIDE)
8GASKET, COVER EVAPORATOR (RIGHT SIDE)
9WPW10491891 Whirlpool Refrigerator Bimetallic Defrost Assembly
11CLIP, EVAPORATOR MOTOR
13SCREW
14COMPRESSOR (INCLUDES ITEMS 4, 6, 7, & 15)
15WPW10466655 Whirlpool Refrigerator Start Relay
16DRIER
18W10507269 Whirlpool Refrigerator Harness
19OVERLOAD
21WP2163786 Whirlpool Refrigerator Grommet
22Washer
23BOLT, COMPRESSOR
24ALARM, SWITCH DOOR
25WPW10474988 Whirlpool Refrigerator Exchanger
26WPW10470130 Whirlpool Compressor Pan
28CONDENSER
29SCREW
30SCREW
32Grommet
33W10452115 Whirlpool Refrigerator Heat Shield
34W10452121 Whirlpool Evaporator Block
35CLIP, EVAP (2)
