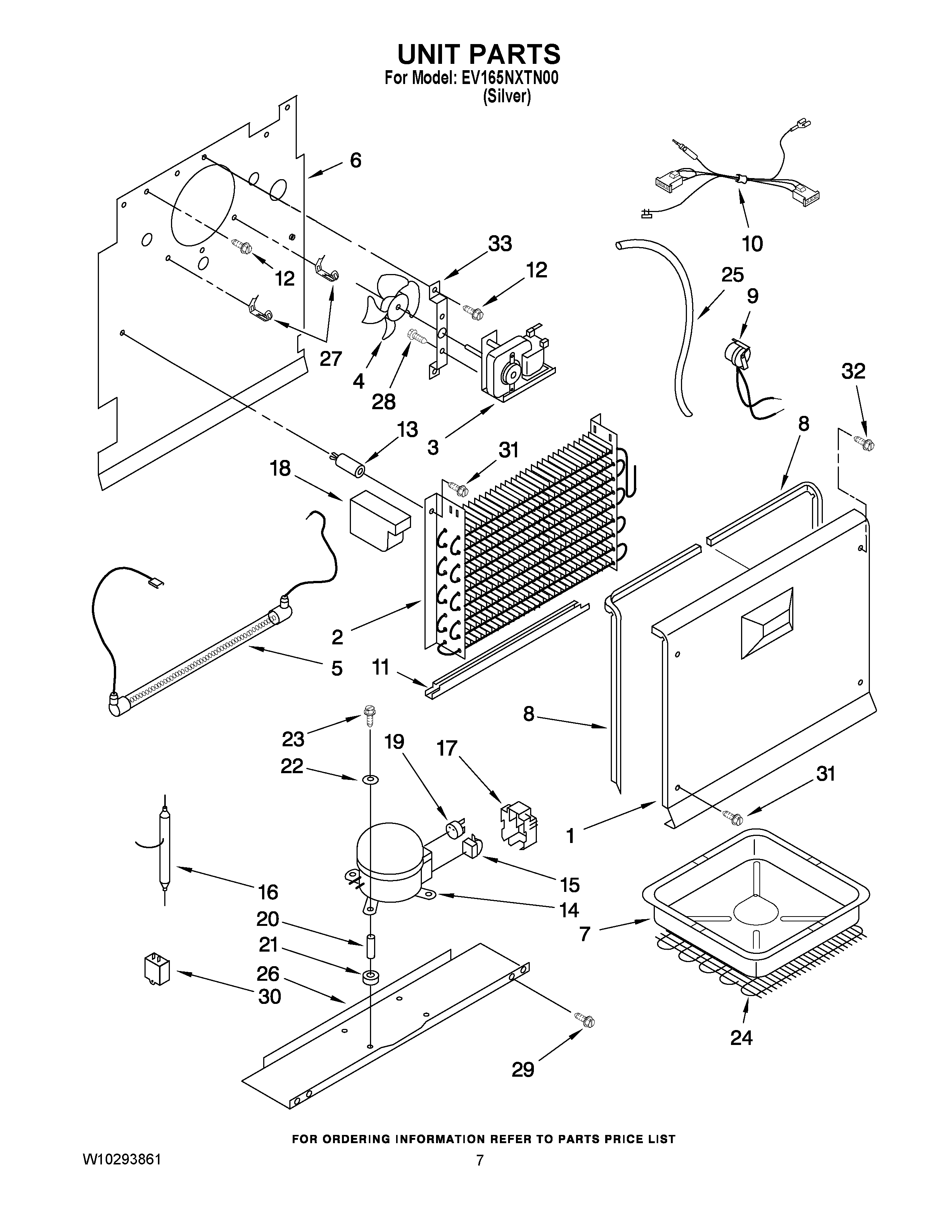

EV165NXTN00 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	MOTOR-EVAP
4	BLADE-FAN
5	WP3-80405-003 Whirlpool Refrigerator Heater
6	Plate, Evaporator Mount
7	WP4390675 Whirlpool Refrigerator Drip Pan
8	4390664 Whirlpool Refrigerator Gasket
8	4390663 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	4-81785-001 Whirlpool Refrigerator Wire Harness
11	Shield, Heater
12	60001022 Whirlpool Oven Screw
13	Grommet
14	W10309989 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	4356777 Whirlpool Term Cover
18	1-80252-101 Whirlpool Refrigerator Evaporator Block
19	WP2214067 Whirlpool Refrigerator Overload Relay
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	W10451951 Whirlpool Refrigerator Condenser
25	Exchanger, Heat
26	PAN, COMPRESSOR MOUNTING
27	Thermostat, Clip
28	WP3400094 Whirlpool Screw
29	WP3-24838-048 Whirlpool Refrigerator Screw
30	Capacitor
31	WP3-24004-109 Whirlpool Refrigerator Screw
32	WP489478 Whirlpool Refrigerator Screw
33	2-80028-101 Whirlpool Refrigerator Motor Bracket
