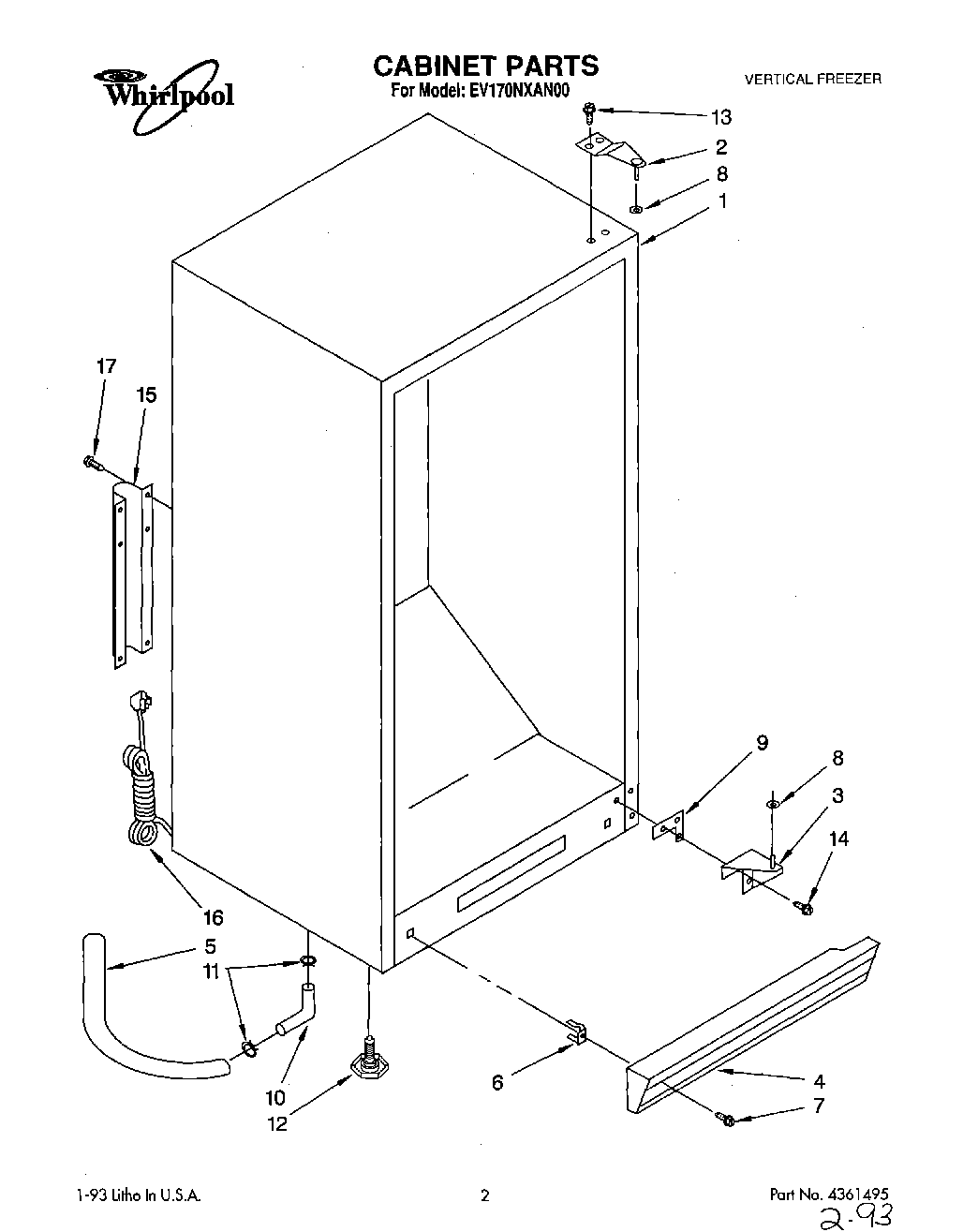

EV170NXAN00 01 – CABINET, LIT/OPTIONAL

Products

Position	Product
	Parts List
	Literature Parts (Owners Manual)
1	Cabinet (Not A Serviceable Part)
2	Top, Hinge
3	Bottom, Hinge
4	Grille (Black)
5	Drain Hose
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
9	Shim, Bottom
10	Tube, Drain
11	Hose Clamp
12	W11117769 Whirlpool Refrigerator Leveler
14	WP8204624 Whirlpool Bolt
15	Cover, Suction Line
16	Power Cord
17	WP72107 Whirlpool Touchup
17	Leveler (Thinner)
17	Almond (Uncut)
17	212643 Whirlpool Refrigerator Permagum Sealer
17	876370 Whirlpool Refrigerator Insulation
17	WP503695 Whirlpool Refrigerator Sealer
17	WP505587 Whirlpool Refrigerator Sealer
17	TAPE, VINYL (3/4 X 108“)
17	Transformer (115-230 Volt)
17	WP4-81049-001 Whirlpool Refrigerator Door Gasket
17	350956 Whirlpool Spray Assembly
