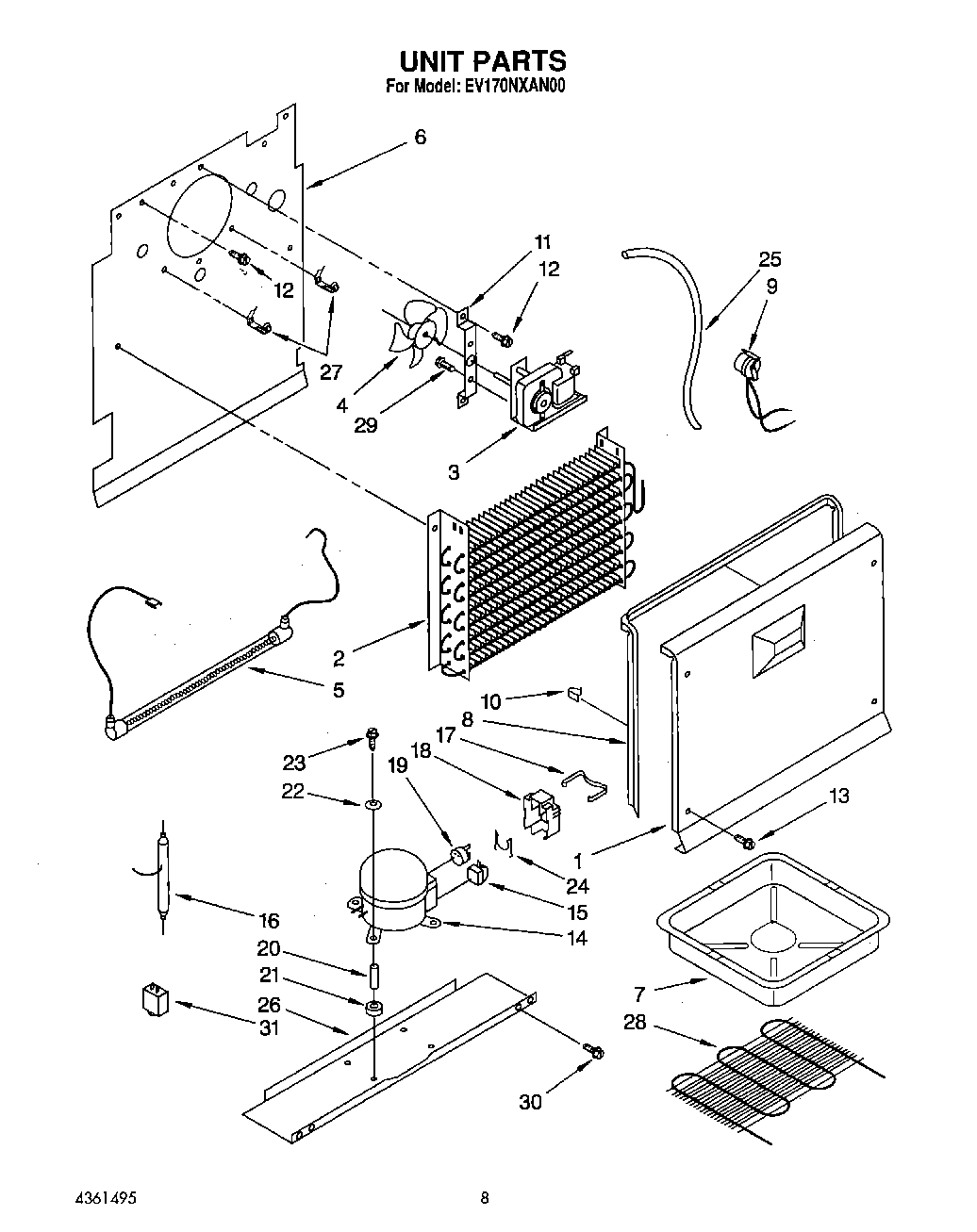

EV170NXAN00 04 – UNIT

Products

Position	Product
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Shield Heater
7	Drain Pan
8	Gasket, Cover Evaporator
9	WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly
10	Clip
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	Screw (4)
14	Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	Clip, Cover
18	Cover
19	Overload
20	4356846 Whirlpool Refrigerator Sleeve
21	Compressor Grommet
22	Washer
23	Screw, Compressor Mounting
24	Clip, Overload
25	WP4357245 Whirlpool Refrigerator Exchanger
26	Compressor Mounting Pan
27	Thermostat, Clip
28	Precooler
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
