EV170NXGW00 01 – CABINET, LIT/OPTIONAL

EV170NXGW00 01 – CABINET, LIT/OPTIONAL

Written by

in

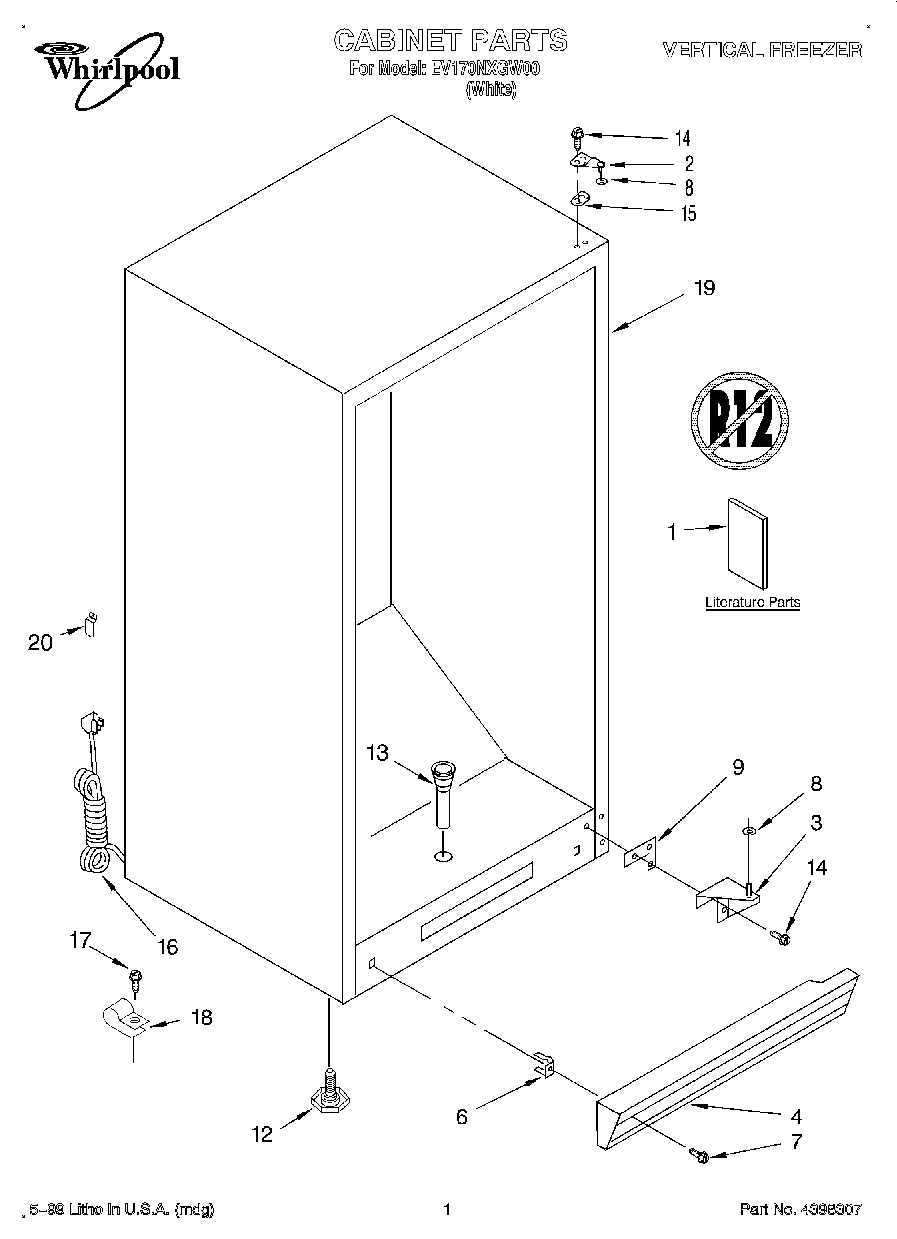

EV170NXGW00 01 – CABINET, LIT/OPTIONAL

Products

PositionProduct
1Literature Parts (Energy Guide)
1Literature Parts (Owners Manual)
2Top, Hinge
3Bottom Hinge
4WP4-60461-005 Whirlpool Refrigerator Grille
61-80247-101 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8W10851331 Whirlpool Refrigerator Washer
9Shim, Bottom
12W11117769 Whirlpool Refrigerator Leveler
13Drain Hose
14WP8204624 Whirlpool Bolt
154390489 Whirlpool Refrigerator Shim
16Power Cord
17Screw
183-25095-011 Whirlpool Tube Clamp
19Cabinet (Not A Serviceable Part)
20Clip
2072017 Whirlpool Appliance Touch-Up Paint White
20799344 Whirlpool Refrigerator Paint
20212643 Whirlpool Refrigerator Permagum Sealer
20876370 Whirlpool Refrigerator Insulation
20WP503695 Whirlpool Refrigerator Sealer
20WP505587 Whirlpool Refrigerator Sealer
20TAPE, VINYL (3/4 X 108“)
20350930 Whirlpool White Spray Paint
