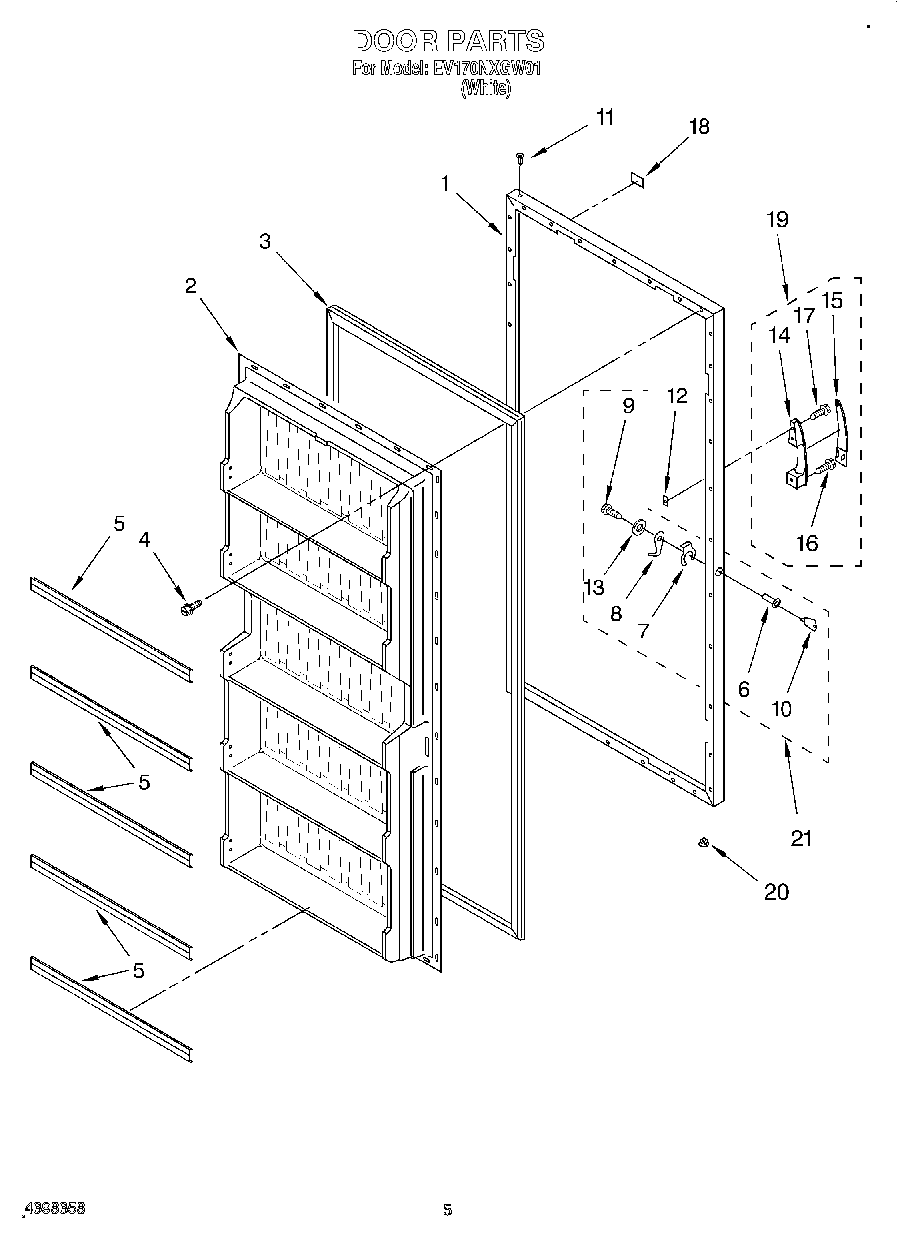

EV170NXGW01 03 – DOOR

EV170NXGW01 03 – DOOR

Written by

in

EV170NXGW01 03 – DOOR

Products

PositionProduct
1Exterior Door (Includes Insulation)
2Interior Panel
3WP4357142 Whirlpool Refrigerator Door Gasket
44390598 Whirlpool Refrigerator Screw
5Door Shelf Trim (4)
64357145 Whirlpool Refrigerator Door Lock
7Spring Clip
8HOOK BOLT, LOCK
9WP489478 Whirlpool Refrigerator Screw
10WP4356840 Whirlpool Refrigerator Door Key
114390731 Whirlpool Refrigerator Hinge Bushing
12Anchor, Screw
13Washer
14Handle (White)
15Insert, Handle
16Screw
17WP3-24004-109 Whirlpool Refrigerator Screw
18Nameplate
19Handle Kit (Includes Items 14, 15, 16 & 17)
203-24898-007 Whirlpool Refrigerator Vent Plug
