EV170NXYN00 02 – CABINET, LIT/OPTIONAL

Products

PositionProduct

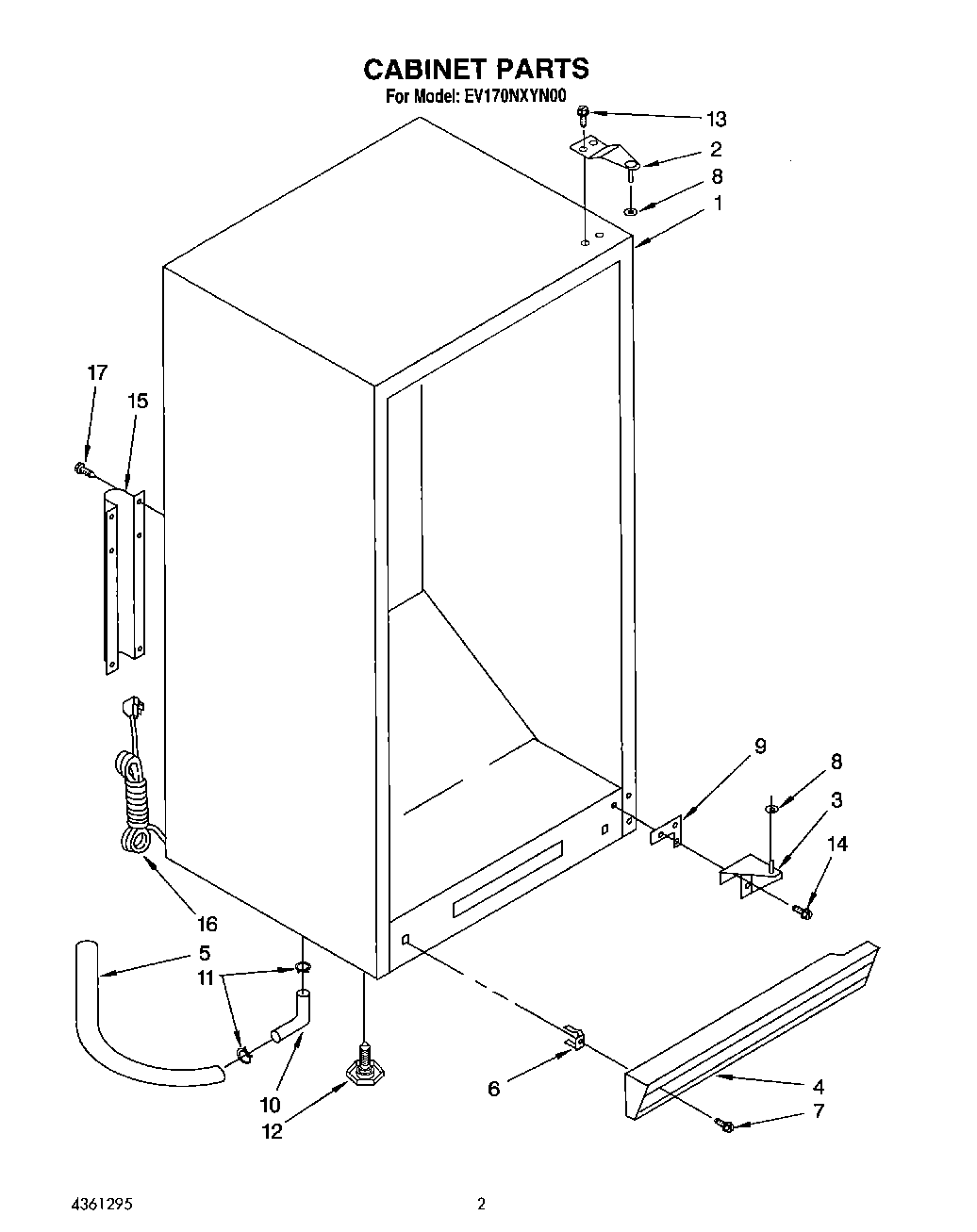

Parts List
Literature Parts (Owners Manual)
1Cabinet (Not A Serviceable Part)
2Top, Hinge
3Bottom, Hinge
4Grille
5Drain Hose
61-80247-101 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8W10851331 Whirlpool Refrigerator Washer
9Shim, Bottom
10Tube, Drain
11Hose Clamp
12W11117769 Whirlpool Refrigerator Leveler
14WP8204624 Whirlpool Bolt
15Cover, Suction Line
16Power Cord
17WP72107 Whirlpool Touchup
17Leveler (Thinner)
17Almond (Uncut)
17212643 Whirlpool Refrigerator Permagum Sealer
17876370 Whirlpool Refrigerator Insulation
17WP503695 Whirlpool Refrigerator Sealer
17WP505587 Whirlpool Refrigerator Sealer
17TAPE, VINYL (3/4 X 108“)
17Transformer (115-230 Volt)
17WP4-81049-001 Whirlpool Refrigerator Door Gasket
17350956 Whirlpool Spray Assembly
