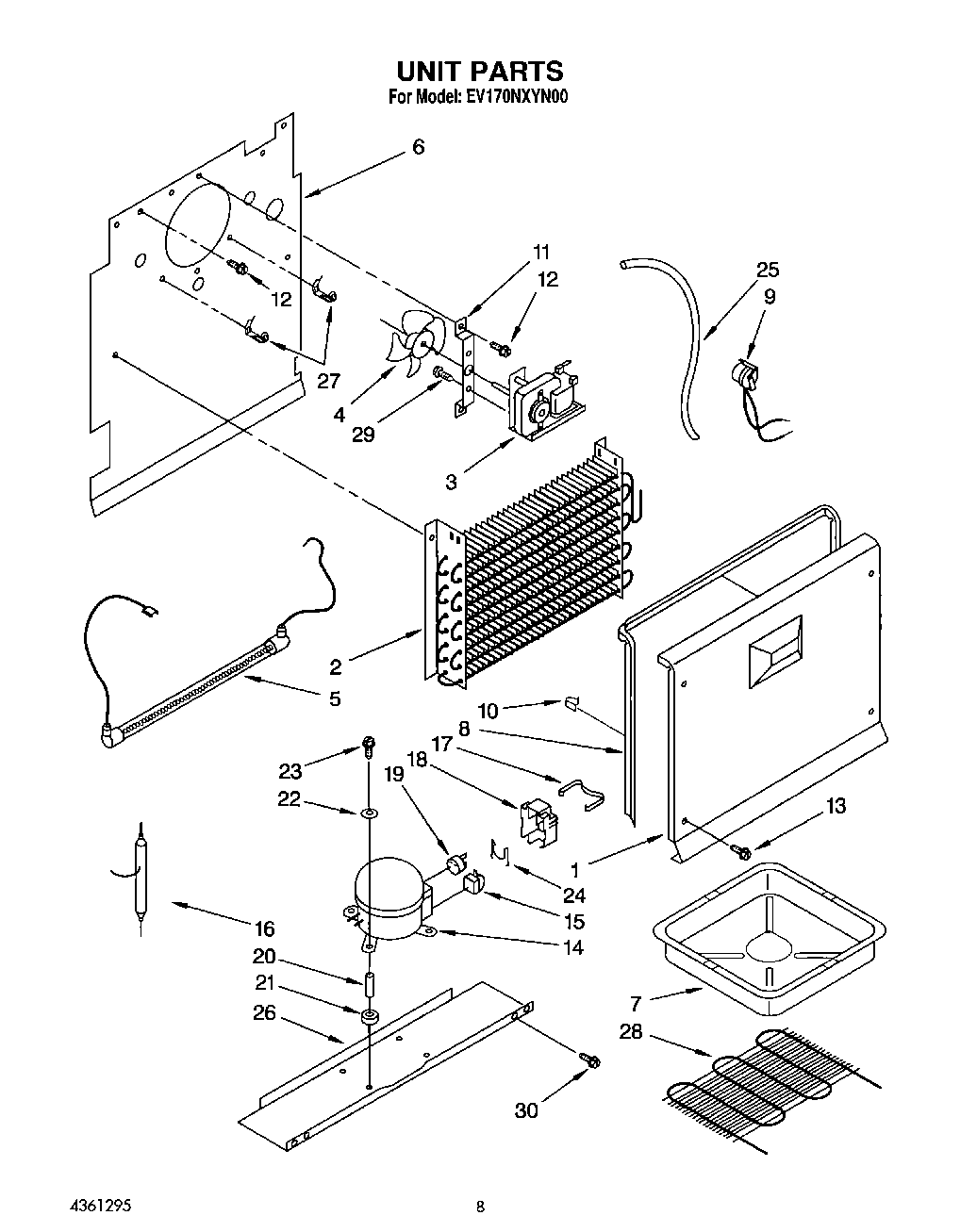

EV170NXYN00 05 – UNIT

EV170NXYN00 05 – UNIT

Written by

in

EV170NXYN00 05 – UNIT

Products

PositionProduct
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3Fan Motor
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Shield Heater
7Drain Pan
8Gasket, Cover Evaporator
9WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly
10Clip
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13Screw (4)
14Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
17Clip, Cover
18Cover
19Overload
204356846 Whirlpool Refrigerator Sleeve
21Compressor Grommet
22Washer
23Screw, Compressor Mounting
24Clip, Overload
25WP4357245 Whirlpool Refrigerator Exchanger
26Compressor Mounting Pan
27Thermostat, Clip
28Precooler
29WP3400094 Whirlpool Screw
30WP3-24838-048 Whirlpool Refrigerator Screw
