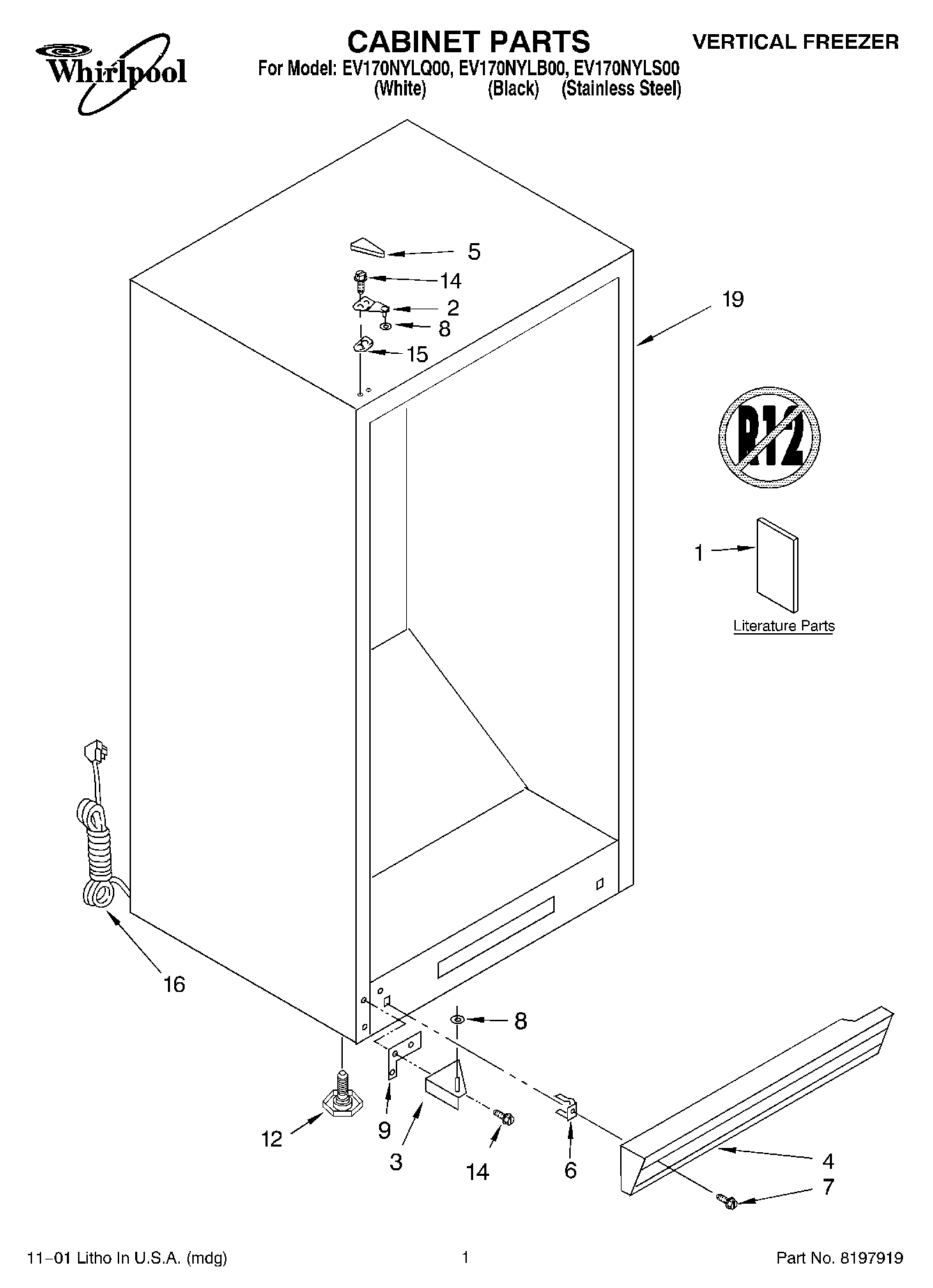

EV170NYLB00 01 – CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Energy Guide)
1	Literature Parts (Owners Manual)
2	Top Hinge (Black)
2	Top, Hinge (White)
3	Bottom Hinge (White)
3	Bottom Hinge (Black)
4	Grille (Includes 6 & 7) (Black)
4	WP4-60461-005 Whirlpool Refrigerator Grille
5	Hinge Cover (Black)
5	3-80838-003 Whirlpool Refrigerator Cover
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
9	Shim, Bottom
12	W11117769 Whirlpool Refrigerator Leveler
14	WP8204624 Whirlpool Bolt
15	4390489 Whirlpool Refrigerator Shim
16	Power Cord
19	Cabinet (Not A Serviceable Part)
