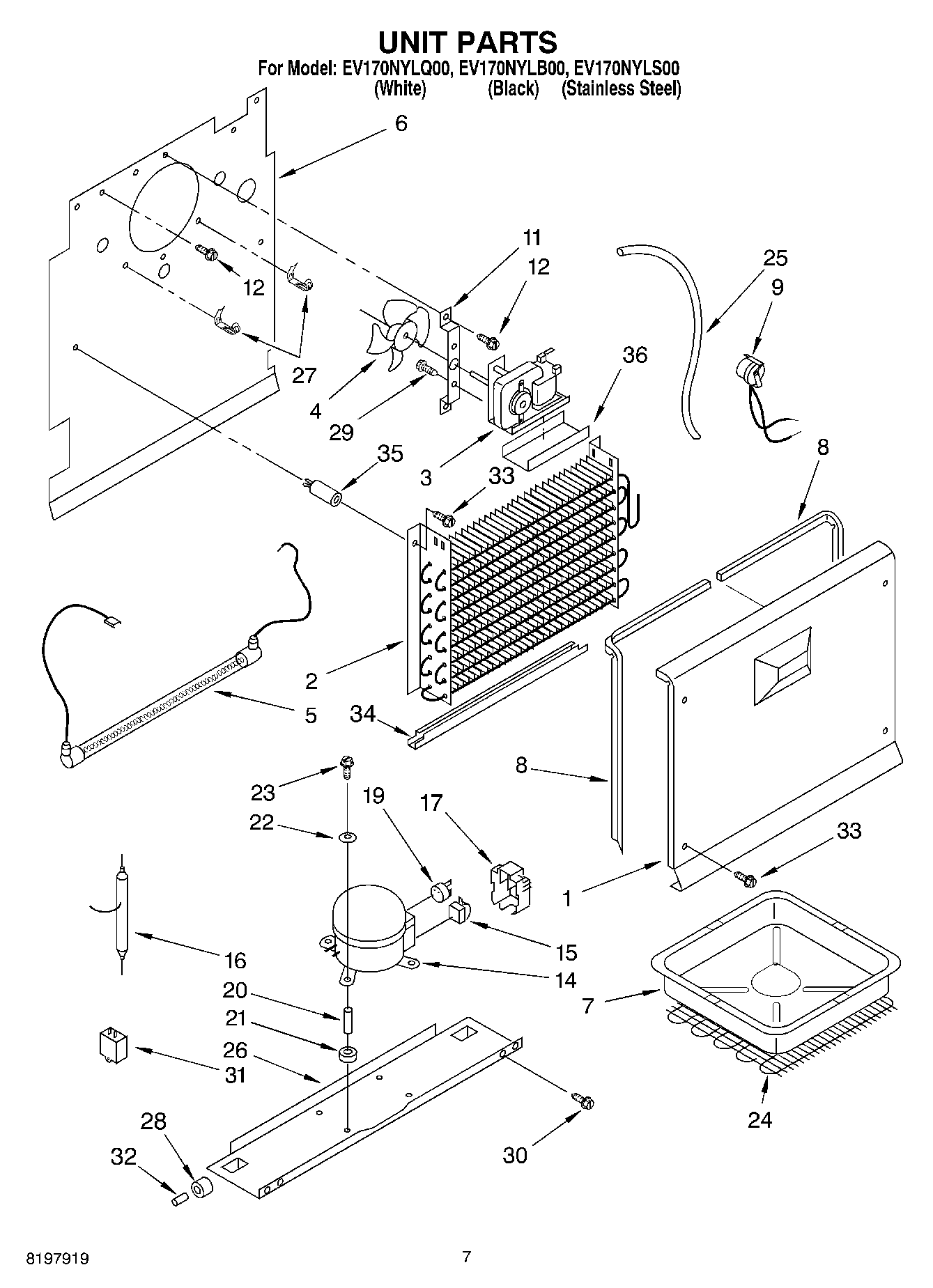

EV170NYLB00 04 – UNIT

EV170NYLB00 04 – UNIT

Written by

in

EV170NYLB00 04 – UNIT

Products

Position	Product
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Plate, Evaporator Mount
7	WP4390675 Whirlpool Refrigerator Drip Pan
8	4390664 Whirlpool Refrigerator Gasket
8	4390663 Whirlpool Refrigerator Gasket
9	WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
14	W10309994 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	4356777 Whirlpool Term Cover
19	2-34286-021 Whirlpool Refrigerator Overload Relay
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	Screw, Compressor Mounting
24	Condenser
25	Exchanger, Heat
26	Compressor Pan (White)
26	Compressor Pan (Black)
27	Thermostat, Clip
28	3-60315-001 Whirlpool Refrigerator CAB Roller
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	3-35956-013 Whirlpool Refrigerator Capacitor
32	Axle
33	WP489478 Whirlpool Refrigerator Screw
34	Shield, Heater
35	Grommet
36	WP503695 Whirlpool Refrigerator Sealer
36	72017 Whirlpool Appliance Touch-Up Paint White
36	799344 Whirlpool Refrigerator Paint
36	72032 Whirlpool Touch Up Paint Black
36	285006 Whirlpool Spray
36	350930 Whirlpool White Spray Paint
36	W11729596 Whirlpool Ice Maker Field Install Kit
36	TAPE, VINYL (3/4 X 108“)
36	4357128 Whirlpool Refrigerator Motor Bracket
36	WP505587 Whirlpool Refrigerator Sealer
36	876370 Whirlpool Refrigerator Insulation
36	212643 Whirlpool Refrigerator Permagum Sealer
