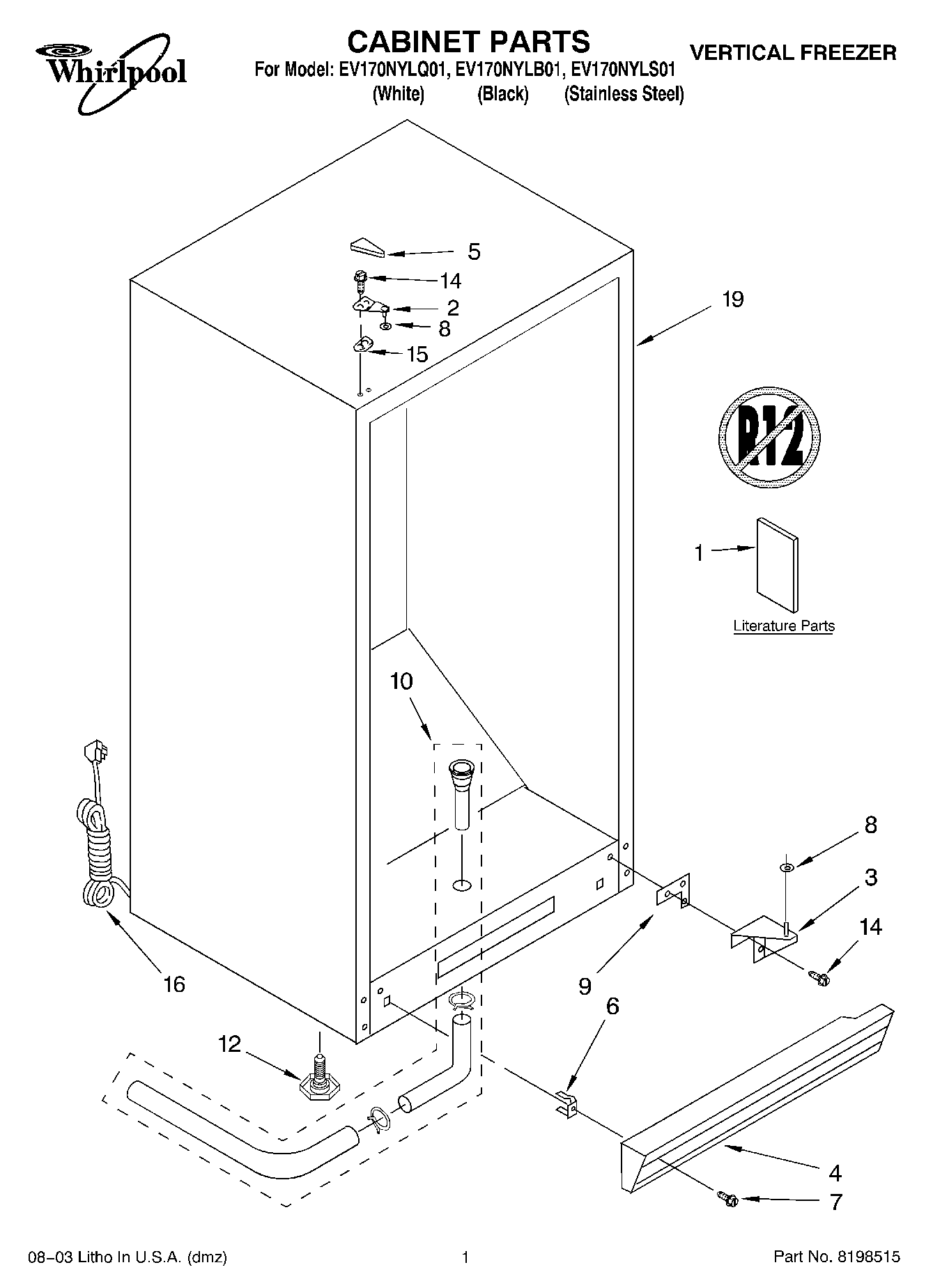

EV170NYLB01 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Energy Guide)
1Literature Parts (Owners Manual)
2Top Hinge (Black)
2Top Hinge (White)
3Bottom Hinge (White)
3Bottom Hinge (Black)
4Grille (Includes 6 & 7) (Black)
4WP4-60461-005 Whirlpool Refrigerator Grille
53-80838-003 Whirlpool Refrigerator Cover
5Hinge Cover (Black)
61-80247-101 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8W10851331 Whirlpool Refrigerator Washer
9Shim, Bottom
10Drain Hose
12W11117769 Whirlpool Refrigerator Leveler
14WP8204624 Whirlpool Bolt
154390489 Whirlpool Refrigerator Shim
16Power Cord
19Cabinet (Not A Serviceable Part)
